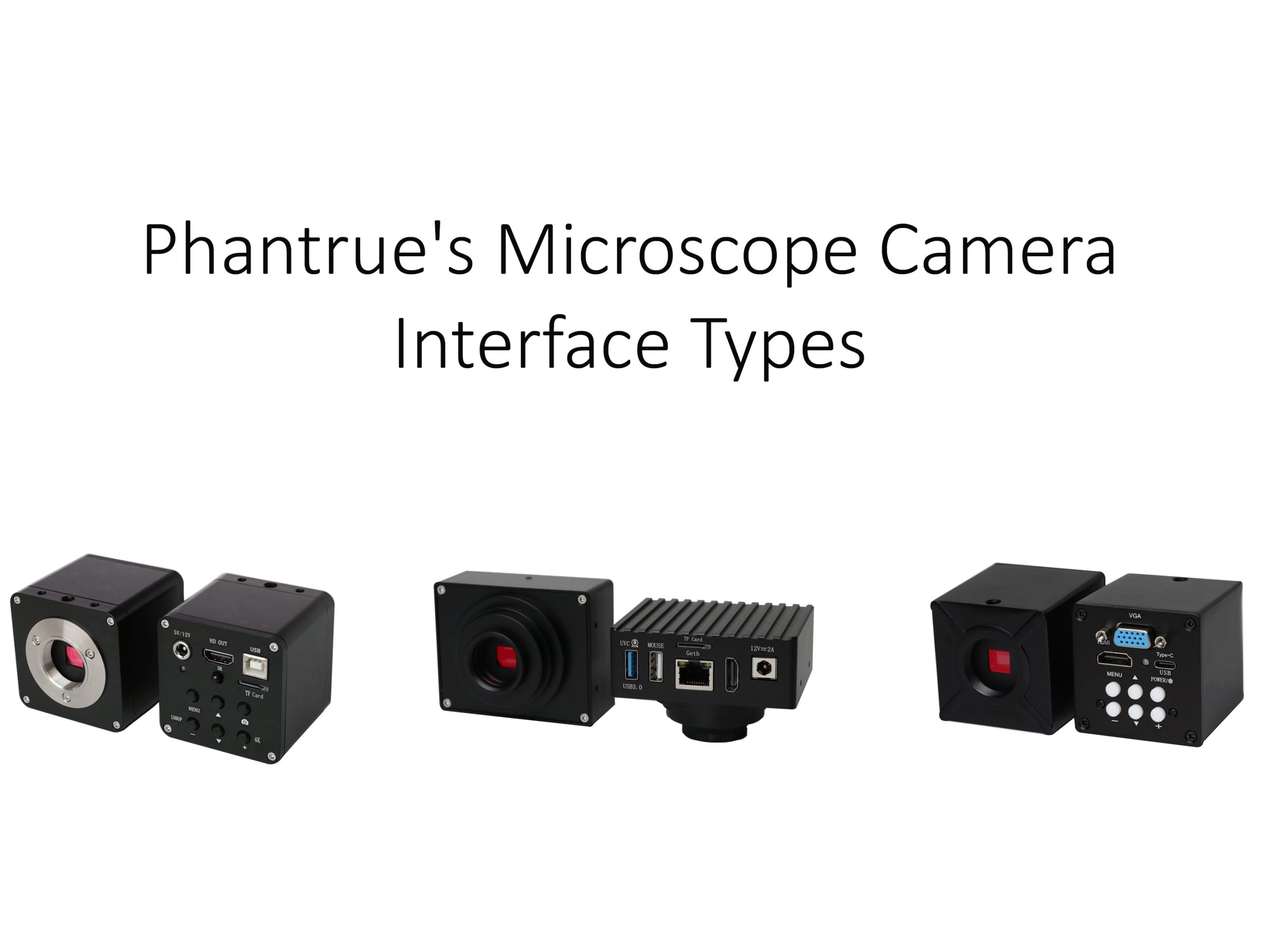

Phantrue’s industrial cameras have various interface types, each with its own characteristics and applicable scenarios. The following are common industrial camera interface types and their characteristics:
1. USB Port
–USB-Type A:
Function: The USB-Type A interface is usually used to connect external devices, such as a USB flash drive or a mouse. In industrial cameras, the USB-Type A interface can be used to insert a USB flash drive to store images or video data captured by the camera. In addition, it can also be connected to a mouse to operate the camera’s built-in measurement software, which is convenient for users to perform system settings, parameter adjustments, and other operations.
Application scenario: Suitable for scenarios that require fast data storage or manual operations.
–USB-Type B:
Function: The USB-Type B interface is usually used to connect to a computer or other host devices. In the B33 model industrial camera, the USB-Type B interface can be used to connect the camera to a computer and use it as a UVC (USB Video Class) camera. UVC is a standard USB video device class protocol that allows the camera to transmit video streams through the USB interface without installing additional drivers.
Application scenario: Suitable for scenarios that require video transmission through the USB interface, such as real-time monitoring, video conferencing, etc.
–USB-Type C:
Function: The USB-Type C interface is a multi-functional interface that can be used for both power connection and data transmission. In industrial cameras, the USB-Type C interface can not only power the camera, but also connect to a computer to be used as a UVC camera. The USB-Type C interface has a higher data transfer rate and a smaller physical size, which is suitable for the compact design of modern equipment.
Application scenarios: Suitable for scenarios that require simultaneous power supply and data transmission, such as portable devices, high-resolution video transmission, etc.
2. GigE (Gigabit Ethernet) Port
Function: The GigE interface is an interface based on Gigabit Ethernet for high-speed data transmission. In the B36 model industrial camera, the GigE interface can be used to connect the camera to the network for high-speed and stable image data transmission. The GigE interface supports long-distance transmission (up to 100 meters) and can be remotely controlled and monitored over the network.
Application scenarios: Suitable for scenarios that require high-speed and long-distance transmission of image data, such as industrial automation, machine vision, remote monitoring, etc.
3. HDMI Port
Function: The HDMI (High-Definition Multimedia Interface) interface is a high-definition multimedia interface for transmitting high-quality video and audio signals. In industrial cameras, the HDMI interface can be used to output the high-definition video signal captured by the camera directly to a monitor or TV, so that users can view images or videos in real time.
Application scenarios: Suitable for scenarios that require real-time high-definition video output, such as video surveillance, medical imaging, broadcasting and television, etc.
4. VGA Port
Function: VGA (Video Graphics Array) interface is an analog video interface used to transmit video signals. In industrial cameras, the VGA interface can be used to output the video signal captured by the camera to a monitor or projector that supports the VGA interface. Although the resolution and transmission quality of the VGA interface are not as good as HDMI, it is still widely used in some old devices or scenarios where video quality requirements are not high.
Application scenarios: Suitable for scenarios that need to connect old display devices or have low video quality requirements, such as simple monitoring systems, educational demonstrations, etc.
Summary: Each interface type has its specific application scenarios and advantages. The USB interface is suitable for portable devices and data transmission, the GigE interface is suitable for high-speed, long-distance network transmission, the HDMI interface is suitable for high-definition video output, and the VGA interface is suitable for old display devices. According to specific application requirements, choosing the appropriate interface type can greatly improve the efficiency and flexibility of industrial cameras.
