FT-F702 Portable FHD Document Camera

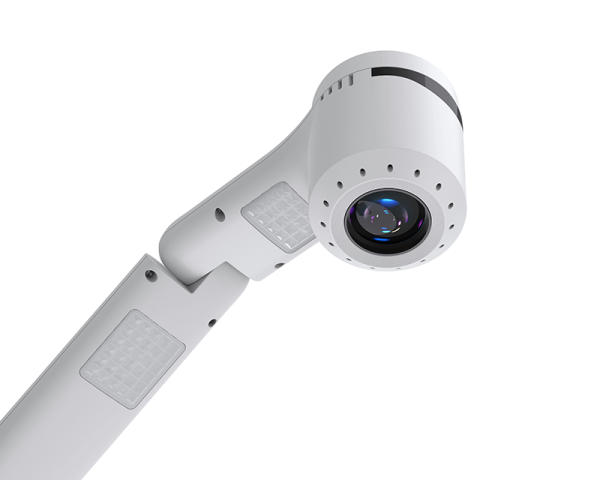

  • 100x Zoom (10x Optical + 10x Digital Zoom) with Full HD camera.

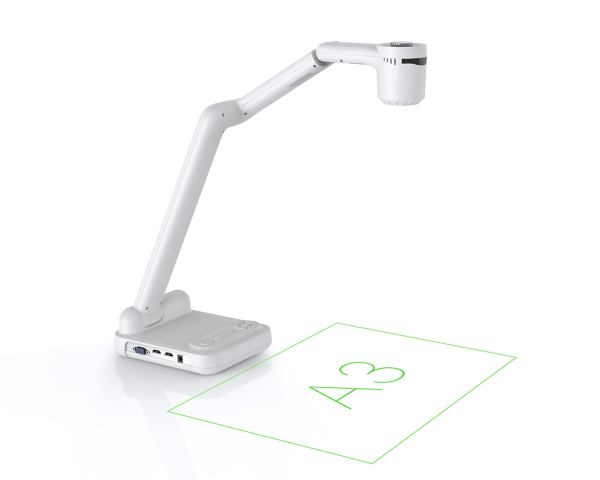

  • Capable of capturing A3-sized images.
  • 1080P HD at 45fps for smooth, High-Definition graphics.
  • Multiple output options (VGA, HDMI, USB).
  • Various control methods: IR remote control, software, and buttons.
  • Built-in microphone.

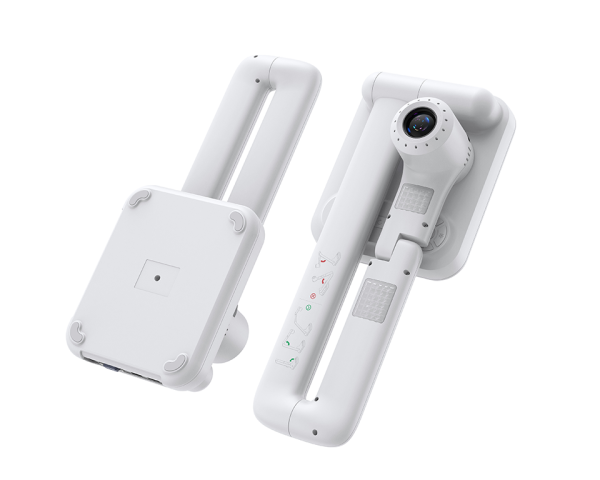

  • Foldable design with adjustable angles and rotatable lens.
  • Compact and lightweight design.
  • Support for free Visualizer software.
  • Physical buttons for easy control: Light, Rotate, Zoom in/out, Brightness+-, AF, etc.
Categories: , , Tags: , , , , , , , , , , , ,

FT-F702 Specification

Image Sensor1/2.8" CMOS
Total Pixels2MP
Zoom10x optical ,10x digital (total 100x) zoom
Shooting AreaA3 and below
FocusAutomatic / Manual
Resolution1920x1080, 1024x768
Horizontal Resolution1000TV cable
Frame rate1920x1080:45fps(default), 30(optional)
LampLED light with three-level dimming
White balanceAutomatic
Free SoftwareVisualizer, supports Windows® 7, 10, 11
IR Remote ControlStandard
Built-in MicSupport
Operating Voltage12V (external DC12V power adapter)
Input InterfaceVGA*1 , HDMI*1 , Audio*1
Output InterfaceVGA*1 , HDMI*1 , Audio*1, USB2.0 B*1
Device DimensionUnfold Dimension： 373.5*110*160mm;
Fold Dimension：448*385*160mm
USB Video Stream FormatSupport MJPG
Image FormatSupport JPG/BMP
Image StorageStored on the computer via PC software (Visualizer).
Buttons FunctionPower, Sourcing, Lamp, Rotate, Auto Focus, Zoom in, Zoom out, Brightness+-
Net Weight1.7KG
Featuresvia IR Remotevia Software
Annotation×√
Snap/Recording×√
Playback×√
Split Screen×√
Picture in picture××
Freeze√√
Auto focus√√
Zoom In/Out√√
Rotation√√
Mirror√×
Color/Black and White√√
Brightness+-√√
Text/Picture√√
Sharpness+-√√
Negative√×
