microscope camera industrial camera 1/2.8'' cmos sensor
  1. microscope camera industrial camera 1/2.8'' cmos sensor

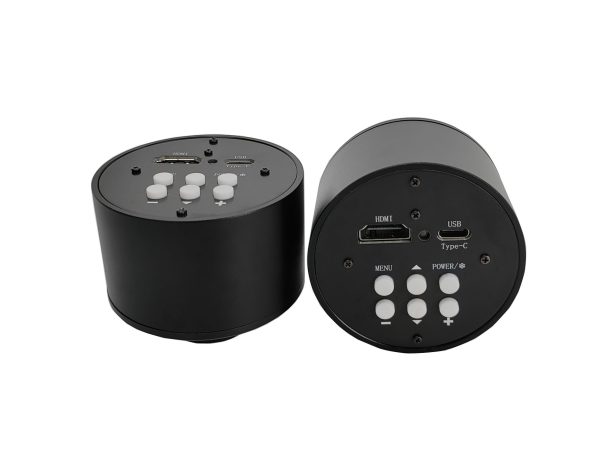

D27-HC -4K 8MP 1/2.8” CMOS HDMI Type-C high definition 30fps 60fps Industrial Camera with key operation Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 4K Ultra HD 8MP, 1/2.8″ CMOS sensor

· C/CS mount , HDMI + Type-C interface

· High Definition 3840*2160

· Multi-function camera (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Scale ruler,center cursor,central line, cross line, key magnification function, child lock function etc.

· Industrial camera with key operation

· Type-C can be connected to computer for UVC camera use

Category: Tags: , , , , , , , , , , , , , , , ,

D27-HC Specification

Sensor8MP,1/2.8" CMOS
Effective Pixels3840*2160
Bit12bit
Pixel Size(μm)1.45μm*1.45μm
FPS30fps or 60fps
SharpnessAbove 1600TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR60dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceHDMI + Type-C
Image CaptureNo
Output Resolution3840*2160(16:9)(only HDMI 30fps mode)
2560*1600(16:10)(only HDMI 30fps mode)
2560*1440(16:9)(only HDMI 30fps mode)
1920*1080(16:9)/(16:10)(HDMI)
1440*900(16:10)(HDMI)
1280*1024(5:4)(HDMI)
1024*768(4:3)(HDMI)
3840*2160(USB)
1920*1080(USB)
USB functionType-C for UVC camera
Remote ControlNo
Power SupplyDC 5V/1A (Type-C)

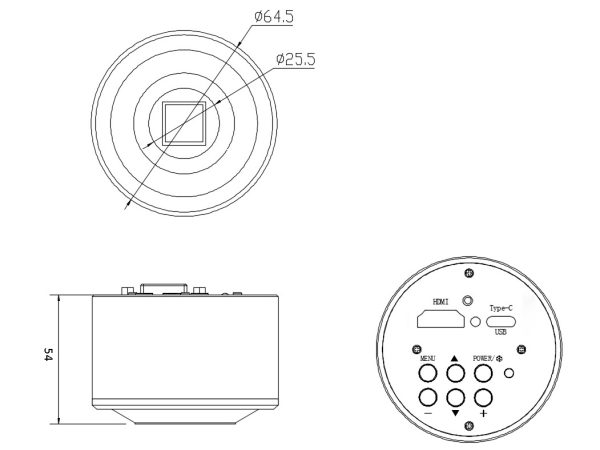

Size64*64*54mm
Functions1.Cross:1-30 cross group,color optional,and line is adjustable in width.
2.Type-C can be connected to computer for UVC camera use.
3.Scale ruler,center cursor,central line.
4.Key magnification function.
5.Child lock function
