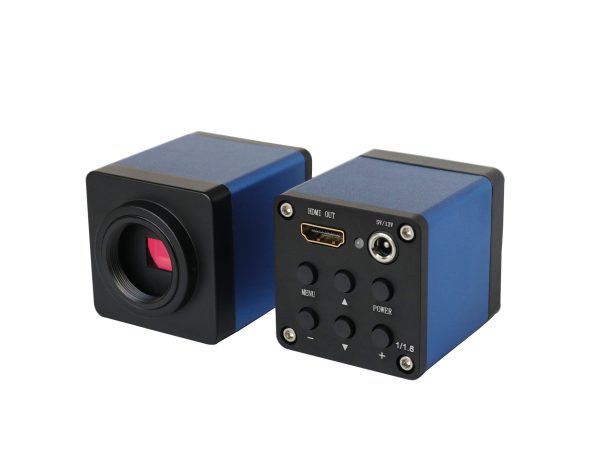

D32-H -4K Ultra HD 8MP 1/1.8” Sony CMOS HDMI 30fps 45fps Industrial Camera with key operation Blue color Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 4K Ultra HD 8MP, 1/1.8″ Sony CMOS sensor

· C/CS mount , HDMI interface

· High Definition 3840*2160

· Multi-function camera (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Scale ruler,center cursor,central line, cross line, key magnification function, use scenario mode selection etc.

· Industrial camera with key operation

Category: Tags: , , , , , , , , , , , , ,

D32-H Specification

Sensor8MP,1/1.8" Sony CMOS
Effective Pixels3840*2160
Bit12bit
Pixel Size(μm)2.0μm*2.0μm
FPS30fps@3840*2160
45fps@1920*1080
SharpnessAbove 1600TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR60dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceHDMI
Image CaptureNo
Output Resolution3840*2160 4K(16:9)
3200*1800 3K(16:9)
2560*1600 2K(16:10)
2560*1440 2K(16:9)
1920*1080(16:9)/(16:10)
1440*900(16:10)
1280*1024(5:4)
1024*768(4:3)
USB functionNo
Remote ControlNo
Power SupplyDC 5V/1A

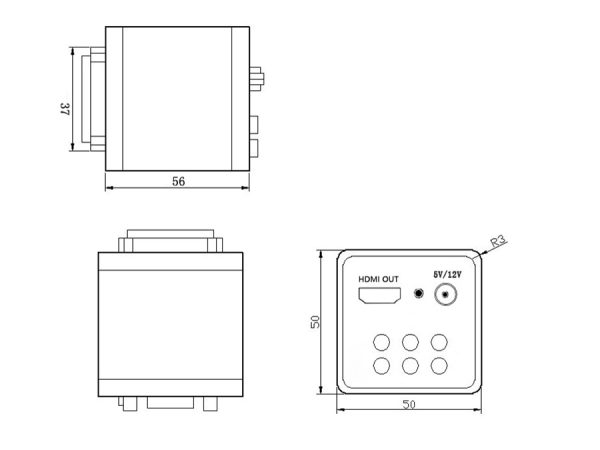

Size50*50*63mm
Functions1.Cross:1-30 cross group,color optional,and line is adjustable in width.
2.Scale ruler,center cursor,central line.
3.Key magnification function.
4.Use scenario mode selection
