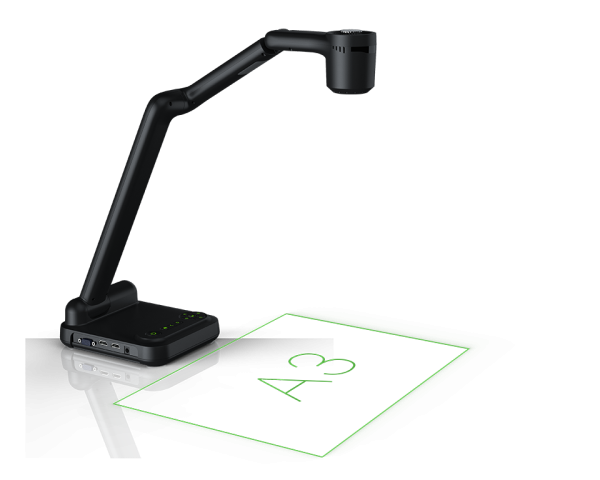

FT-F702H-4K Portable Document Camera

  • 4K Ultra HD output resolution.
  • 10x optical zoom,10x digital zoom, total 100x zoom
  • A3-Sized Image Capture.
  • With 1080P resolution at 30fps, this camera provides high-definition and fluid image streaming.
  • Various ways to control: IR remote control, and software.
  • Multiple Output Options (VGA, HDMI, USB)

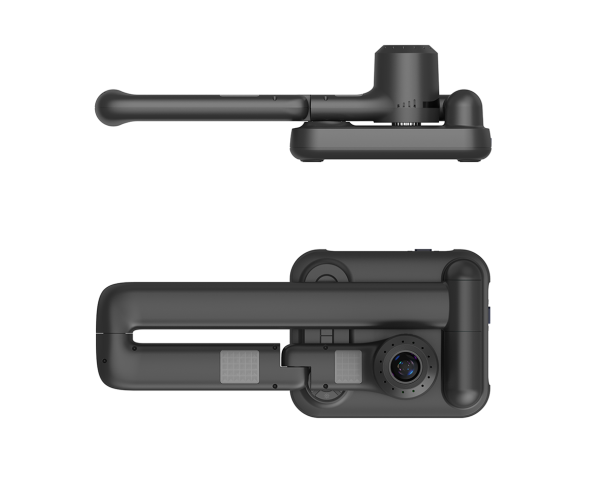

  • Foldable Design with Adjustable Angles and Rotatable Lens.
  • Compact and lightweight design.
  • Built-In Microphone.
  • Support for free Visualizer software.

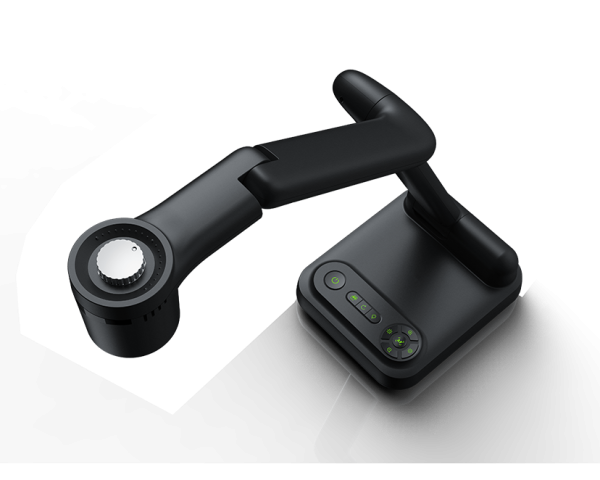

  • Physical buttons for easy control: Light, Rotate, Zoom in/out, Brightness+-, AF, etc.
Categories: , , Tags: , , , , , , , , , , , ,

FT-F702H Specification

Image Sensor1/2.8" CMOS
Total Pixels8MP
Zoom10x optical ,10x digital (total 100x) zoom
Shooting AreaA3 and below
FocusAutomatic / Manual
Resolution3840x2160, 1920x1080, 1024x768
Horizontal Resolution1800TV cable
Frame rate3840*2160@30fps(maximum), 1920*1080@60fps，1024*768@60fps
LampLED light with three-level dimming
White balanceAutomatic
Free SoftwareVisualizer, supports Windows® 7, 10, 11
IR Remote ControlStandard
Built-in MicSupport
Operating Voltage12V (external DC12V power adapter)
Input InterfaceVGA*1 , HDMI*1 , Audio*1
Output InterfaceVGA*1 , HDMI*1 , Audio*1, USB2.0 B*1
Device DimensionUnfold Dimension： 373.5*110*160mm;
Fold Dimension：448*385*160mm
USB Video Stream FormatSupport MJPG
Image FormatSupport JPG/BMP
Image StorageStored on the computer via PC software (Visualizer).
Buttons FunctionPower, Sourcing, Lamp, Rotate, Auto Focus, Zoom in, Zoom out, Brightness+-
Net Weight1.7KG
Featuresvia IR Remotevia Software
Annotation×√
Snap/Recording×√
Playback×√
Split Screen√√
Picture in picture××
Freeze√√
Auto focus√√
Zoom In/Out√√
Rotation√√
Mirror√×
Color/Black and White√√
Brightness+-√√
Text/Picture√√
Sharpness+-√√
Negative√×
