FT-F705-4K Portable Document Camera

4K Ultra HD output resolution.

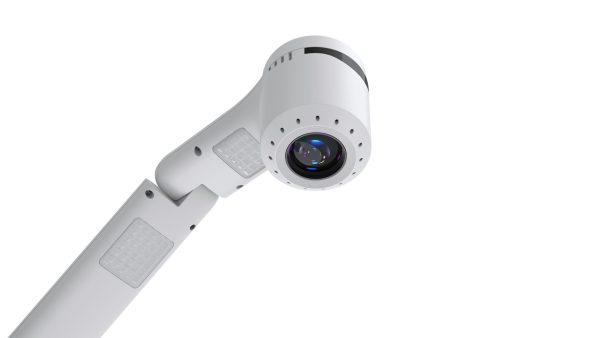

10x optical zoom,10x digital zoom, total 100x zoom.
Various ways to control: mouse, IR remote control, and software.
PC-free functionality: real-time annotation, video recording, photo taking, etc..
Support for TF card storage.

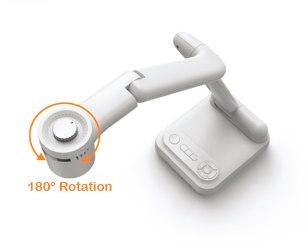

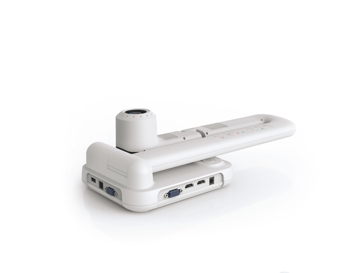

Foldable design with adjustable angles and rotatable lens
Built-In Microphone.
Compact and Lightweight Design.
Physical buttons for easy control: Light, Rotate, Zoom in/out, Brightness+-, AF, etc.

FT-F705 Specification

Image Sensor	1/2.8" CMOS
Total Pixels	8MP
Zoom	10x optical ,10x digital (total 100x) zoom
Shooting Area	A3 and below
Focus	Automatic / Manual
Resolution	3840x2160, 1920x1080
Horizontal Resolution	1800TV cable
Frame rate	38402160@15fps, 19201080@30fps
Lamp	LED light with three-level dimming
White balance	Automatic
Free Software	Visualizer, supports Windows® 7, 10, 11
IR Remote Control	Standard
Built-in Mic	Support
Operating Voltage	12V (external DC12V power adapter)
Input Interface	VGA1 , HDMI1 , Audio1, USB2.0 A1
Output Interface	VGA1 , HDMI1 , Audio1, USB2.0 B1
Device Dimension	Unfold Dimension：373.5110160mm; Fold Dimension：448385160mm
Expandable Storage	Support(TF card only)
USB Video Stream Format	Support MJPG
Image Format	Support JPG/BMP
Image Storage	①Stored on a TF card via the built-in PC-free software; ②Stored on the computer via PC software (Visualizer).
Buttons Function	Power, Sourcing, Lamp, Rotate, Auto Focus, Zoom in, Zoom out, Brightness+-
Net Weight	1.7KG

Features	via IR Remote	via Software	via Mouse
Annotation	×	√	√
Snap/Recording	√	√	√
Playback	×	√	√
Split Screen	×	√	√
Picture in picture	×	×	√
Freeze	√	√	√
Auto focus	√	√	√
Zoom In/Out	√	√	√
Partial Zoom	×	×	√
Rotation	√	√	√
Mirror	√	×	×
Color/Black and White	√	√	√
Brightness+-	√	√	√
Text/Picture	√	√	√
Sharpness+-	√	√	√
Negative	√	×	×
