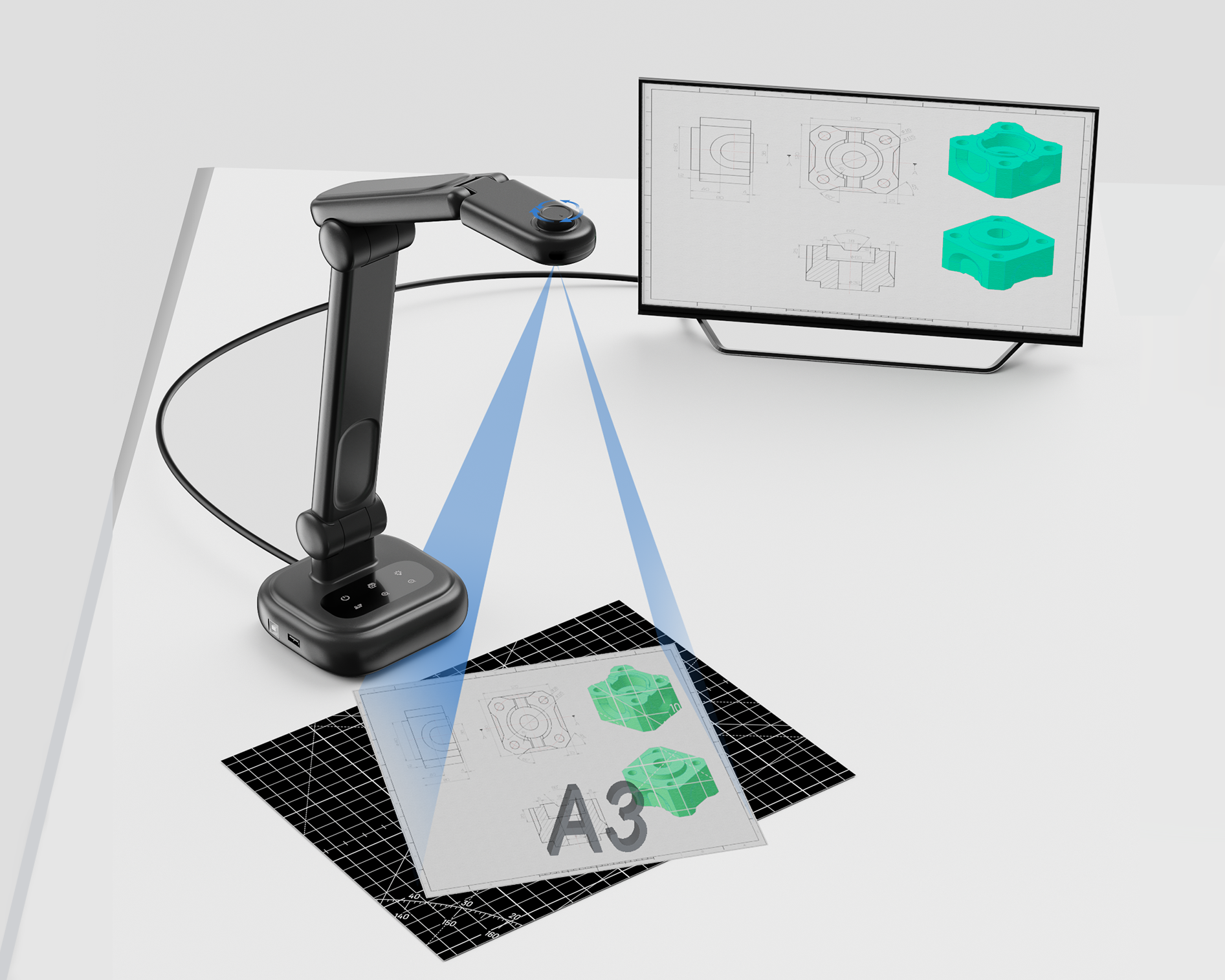

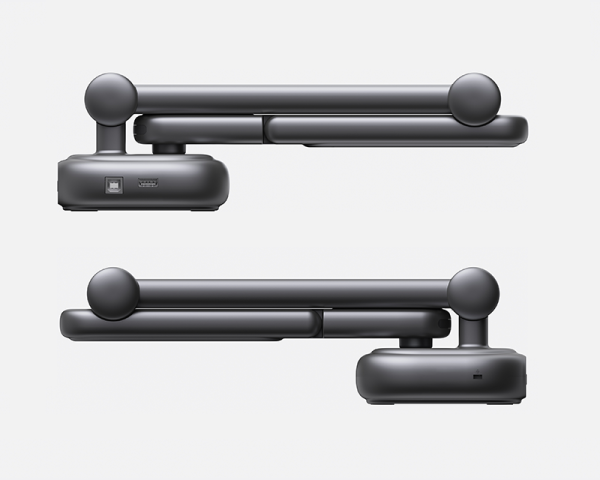

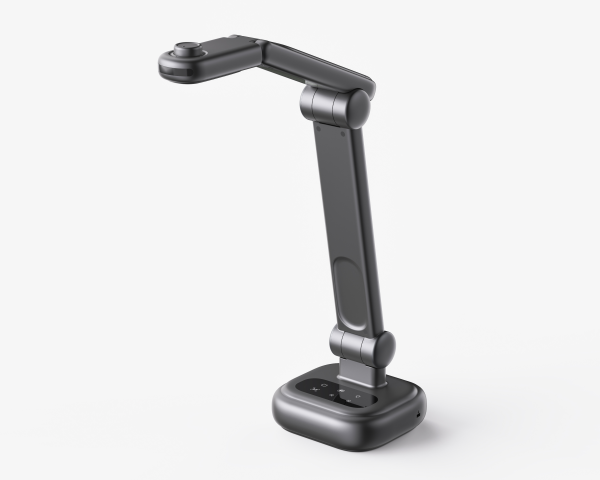

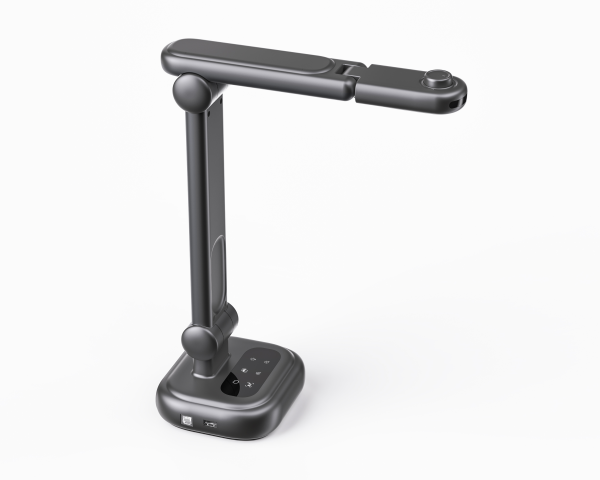

Portable with Rotating Lens & A3 CaptureFeaturing a portable folding design and a rotating lens for precise image capture. Easily shoot A3-sized images, ideal for detailed presentations in classrooms or meetings. Its innovative lens rotation design enhances clarity and convenience. |

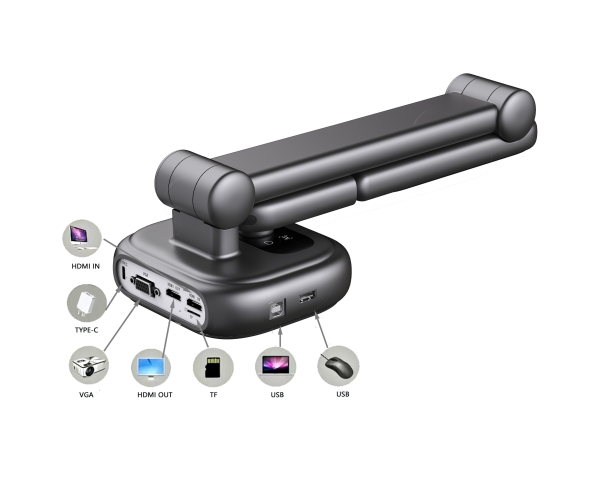

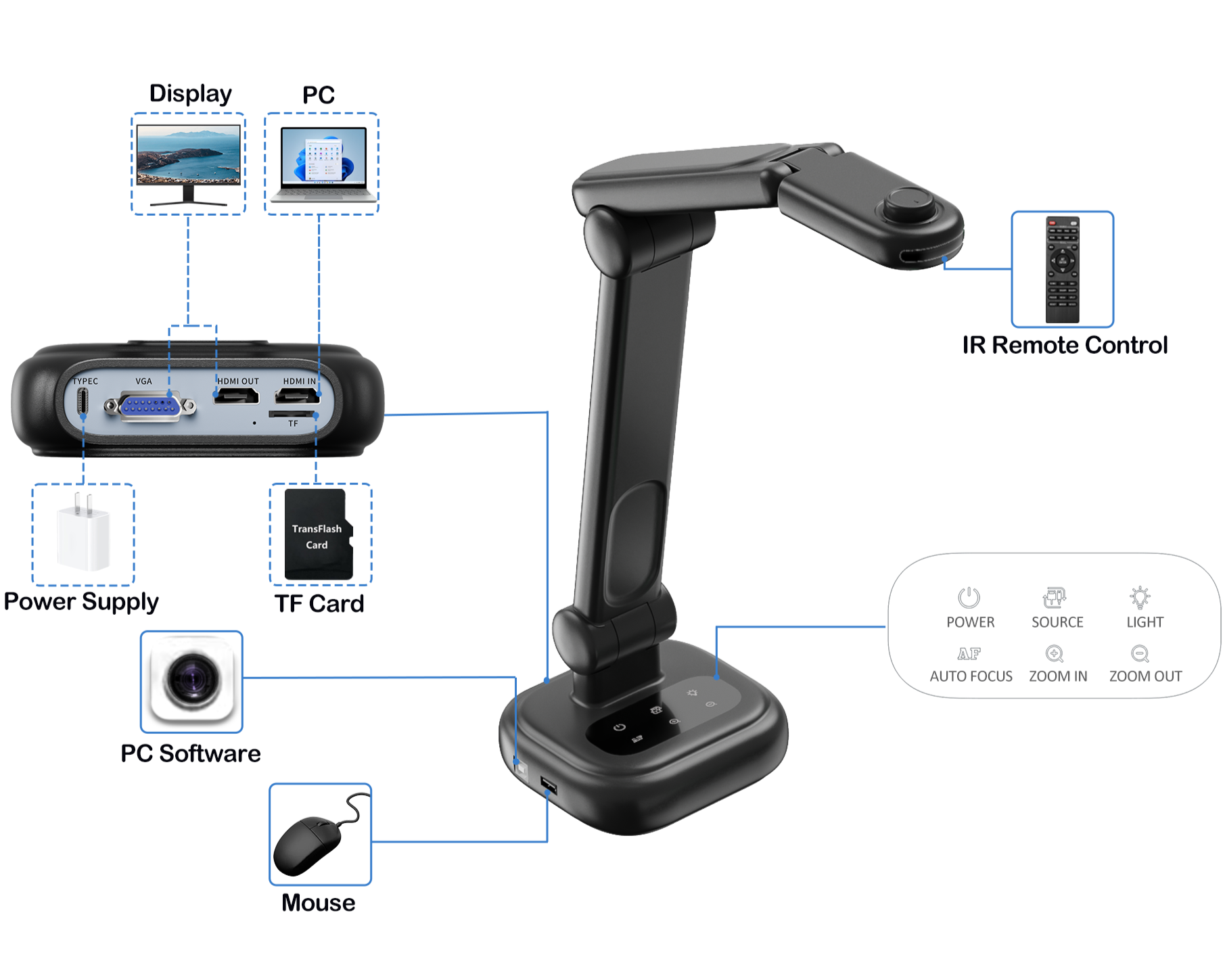

Multi-Interface & Versatile ControlEquipped with multiple interfaces including VGA, USB, and HDMI, it seamlessly connects to various displays and devices. It can be controlled via a mouse, PC software, or an infrared remote, offering features like zoom, auto-focus, picture adjustment, etc.. Ideal for classrooms and meetings, it captures A3-sized documents with clarity. Experience enhanced productivity with this all-in-one device. |
 |
FT-F903 Specification
| Image Sensor | 1/2.8" CMOS |
| Total Pixels | 16MP |
| Zoom | 4K: 2x lossless zoom; 1080P: 8x lossless zoom, 6x digital zoom, total magnification ≥50x |
| Shooting Area | A3 and below |
| Focus | Automatic / Manual |
| Resolution | 4608x3456, 3840x2160, 1920x1080, 1024x768 |
| Horizontal Resolution | 1800TV cable（HDMI output），2800TV cable（USB output） |
| Frame rate | 4608x3456@8fps、3840x2160@15fps、1920x1080@30fps |
| Lamp | LED light with three-level dimming |
| White balance | Automatic |
| Free Software | Visualizer, supports Windows® 7, 10, 11 |
| IR Remote Control | Standard |
| Built-in Mic | Support |
| Operating Voltage | Type-C supply power,5V/2A |
| Input Interface | HDMI*1, USB2.0 A* |
| Output Interface | VGA *1, HDMI *1, USB2.0 B *1 |
| Device Dimension | Unfold Dimension：350mm x 260mm x 115mm; Fold Dimension：350mm x 310mm x 115mm |
| Expandable Storage | Support(TF card only) |
| USB Video Stream Format | Support MJPG |
| Image Format | Support JPG/BMP |
| Image Storage | ①Stored on a TF card via the built-in PC-free software; ②Stored on the computer via PC software (Visualizer). |
| Buttons Function | Power, Sourcing, Lamp, Auto Focus, Zoom in, Zoom out |
| Net Weight | 1KG |
| Anti-Theft | Support lock device |
| Features | via Mouse | via Software | via IR Remote |
|---|---|---|---|
| Annotation | √ | √ | × |
| Snap/Recording | √ | √ | √ |
| Playback | √ | √ | × |
| Split Screen | √ | √ | × |
| Picture in picture | √ | × | × |
| Freeze | √ | √ | √ |
| Auto focus | √ | √ | √ |
| Zoom In/Out | √ | √ | √ |
| Partial Zoom | √ | × | × |
| Rotation | √ | √ | √ |
| Mirror | × | × | √ |
| Color/Black and White | √ | √ | √ |
| Brightness+- | √ | √ | √ |
| Text/Picture | √ | √ | √ |
| Sharpness+- | √ | √ | √ |
| Negative | × | × | √ |
