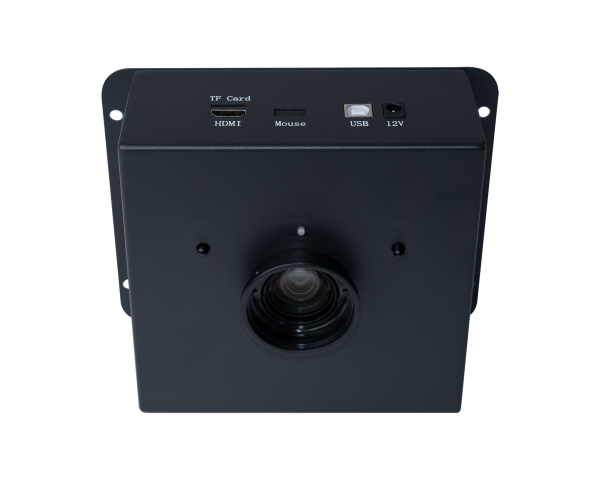

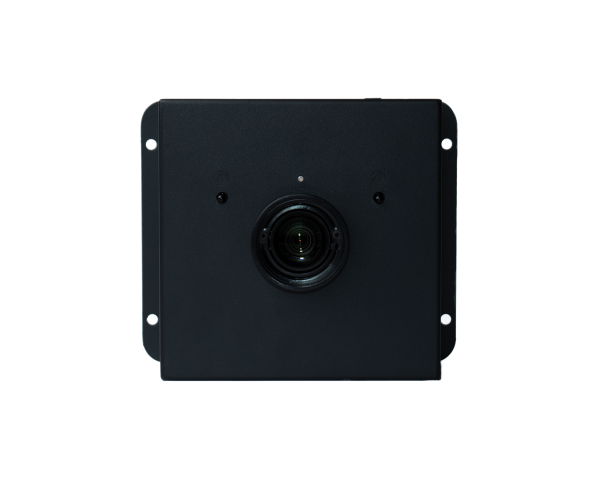

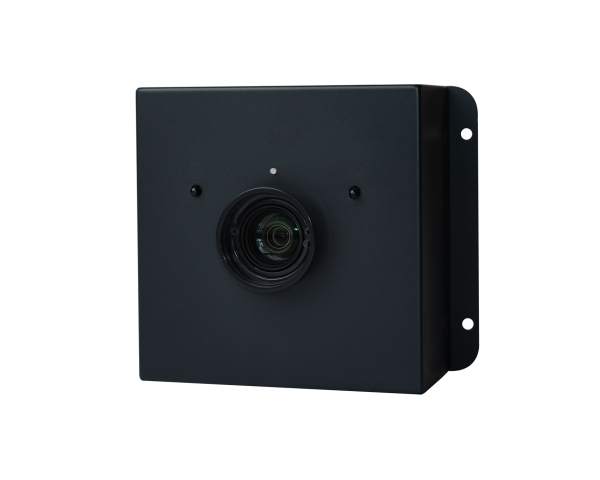

FT-F707A HD Ceiling-Mounted Document Camera

  • 1/2.8″ CMOS Sony image sensor with HD camera.
  • 10x optical zoom,10x digital zoom, total 100x zoom.
  • Delivering a frame rate of ≥45fps (HDMI) and ≥30fps (USB) for 1080P resolution.
  • A 68° diagonal field of view for a wide shooting range.
  • Support IR remote control, realizing image processing.
  • Built-in microphone.
  • Support for PC Software (Visualizer).
  • Advanced image features via software: real-time annotation, video recording, photo taking, etc.
Categories: , , Tags: , , , , , , , , , , , ,

FT-F707A Specification

Image Sensor1/2.8" CMOS
Total Pixels2MP
Zoom10x lossless zoom, 10x digital zoom, total magnification 100x
FOV68°
Recommended Camera Working Distance1500-4000mm
Shooting AreaDepends on camera mounting height.
(eg. Mounting height:2100mm, total area:2100*1180mm)
FocusAutomatic / Manual
Resolution1920x1080, 1024x768
Horizontal Resolution1000TV cable
Frame rate30fps/45fps
White balanceAutomatic
Free SoftwareVisualizer, supports Windows® 7, 10, 11
IR Remote ControlStandard
Built-in MicSupport
Operating VoltageDC 12V
InterfaceHDMI *1 USB2.0*1
Device Dimension180*150*78mm
USB Video Stream FormatSupport MJPG
Image FormatSupport JPG/BMP
Image StorageStored on the computer via PC software (Visualizer).
N.W./G.W.0.77KG/1.49KG
Featuresvia Softwarevia IR Remote
Annotation√×
Snap/Recording√×
Playback√×
Split Screen√√
Picture in picture××
Freeze√√
Auto focus√√
Zoom In/Out√√
Partial Zoom××
Rotation√√
Mirror×√
Color/Black and White√√
Brightness+-√√
Text/Picture√√
Sharpness+-√√
Negative×√
