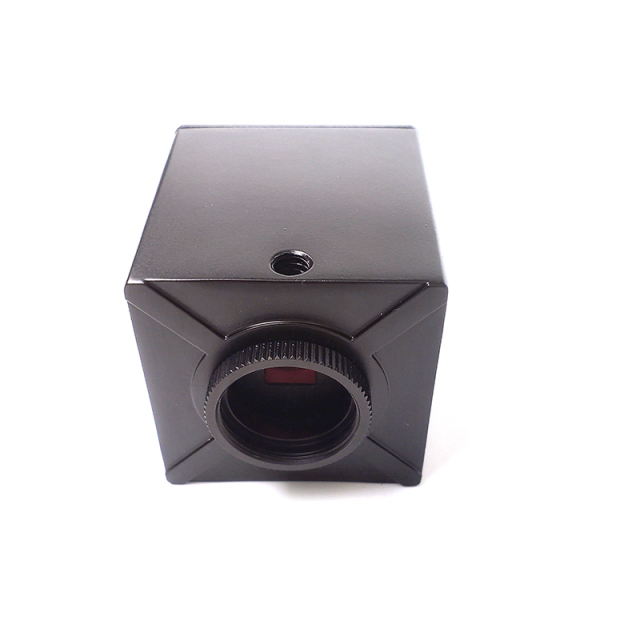

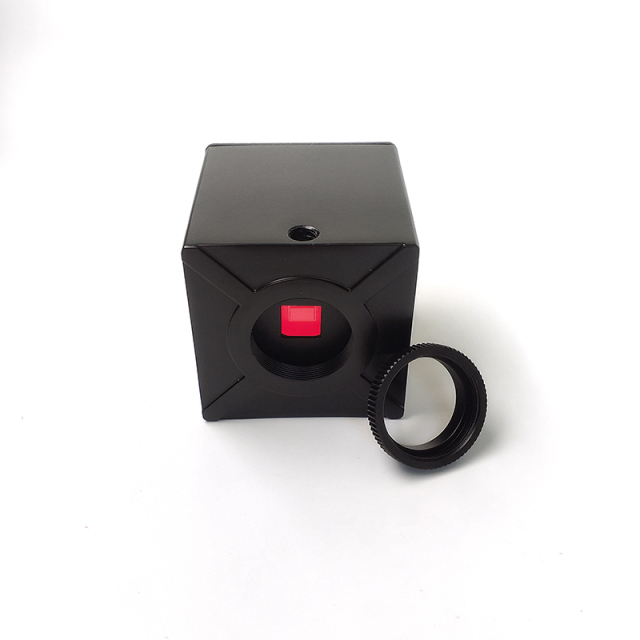

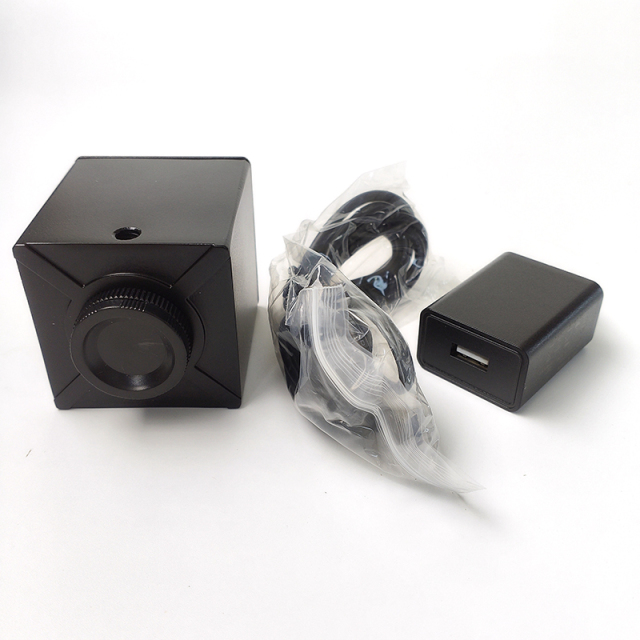

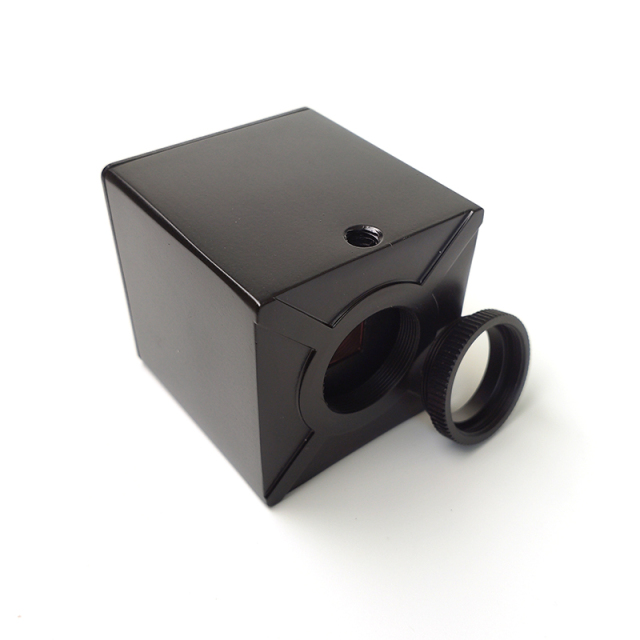

1080P 60FPS Microscope Camera with 1/2.8" CMOS Sensor and 3D Noise Reduction

No.C25-VHC

2MP clarity with VGA, HDMI & Type-C outputs plus low-light mode – a versatile microscope camera for challenging environments.

Specifications

1080P HD 2MP, 1/2.8″ CMOS sensor

C/CS mount , VGA + HDMI + Type-C multi-interface

High Definition 1920*1080

Multi-function camera (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

Cross line, Low light scene mode, 3D noise reduction

Industrial camera with button operation

Type-C can be connected to computer for UVC camera use

GET A QUOTE

Description

C25-VHC Specification

Sensor	2MP,1/2.8" CMOS
Effective Pixels	1920*1080
Bit	12bit
Pixel Size(μm)	2.9μm*2.9μm
FPS	60fps
Sharpness	Above 900TV line
Scan mode	Progressive scan
Shutter Type	Electronic shutter
Dynamic Range	>90dB
SNR	55dB
Sensitivity	2.0 V/lux-sec (550nm)
Exposure Mode	Manual / Auto
White Balance	Manual / Auto
Lens Mount	C/CS
Interface	VGA + HDMI + Type-C
Image Capture	No
Output Resolution	19201080(16:9) 19201080(16:10) 1280720(16:9) 1024768(4:3)
USB function	Type-C for UVC camera
Remote Control	No
Power Supply	DC 5V/1A (Type-C)
Size	555558mm
Functions	1.Cross:1-30 cross group,color optional,and line is adjustable in width. 2.Type-C can be connected to computer for UVC camera use. 3.Low light scene mode 4.3D noise reduction

Frequently Asked Questions

Our most frequently asked questions

1. What sensors do your cameras use? Are they Sony, CMOS, or CCD?

We primarily use high-performance Sony CMOS sensors (e.g., IMX series) and Rolling Shutter CMOS sensors for industrial applications. Our sensors are selected for low noise, high quantum efficiency, and excellent color fidelity. We no longer use CCD in our latest models, as modern CMOS technology offers better speed and sensitivity.

Tip: If you have a specific sensor requirement, please contact our sales team.

2. Are your cameras compatible with major microscope brands?

Yes, our cameras are designed to be optically compatible with most standard microscopes via C-mount adapters.

3. Do your cameras work on Mac or Windows?

Windows: Full support (10/11, 64-bit).

4. What is your warranty policy?

We offer a standard 1 year warranty on all cameras (excluding consumables if damaged by external factors).

Warranty covers:

- Manufacturing defects

- Sensor failures (non-physical damage)

- Electronic component failures under normal use

Extended warranty (up to 2-4 years) is available upon request.

5. Do you offer OEM/ODM services?

Yes, we do.

We provide:

OEM: Custom logo, packaging, and software branding.

ODM: Custom hardware design, sensor selection, and casing modification based on your application requirements.

Minimum Order Quantity (MOQ) for OEM/ODM varies depending on the complexity. Please contact us with your specific needs.

6. What is your typical lead time and MOQ?

Standard Products (in stock): Ships within 2-4 business days.

Bulk Orders (100+units): Typically 15-25 working days after order confirmation and payment.

MOQ (Minimum Order Quantity): 1 unit for sample testing, negotiable for mass production.
