B37T Specification
| Sensor | 8MP,1/1.8" Sony CMOS |
| Effective Pixels | 3840*2160 |
| Bit | 12bit |
| Pixel Size(μm) | 2.0μm*2.0μm |
| FPS | 60fps@3840*2160 |
| Scan mode | Progressive scan |
| Shutter Type | Rolling shutter |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |

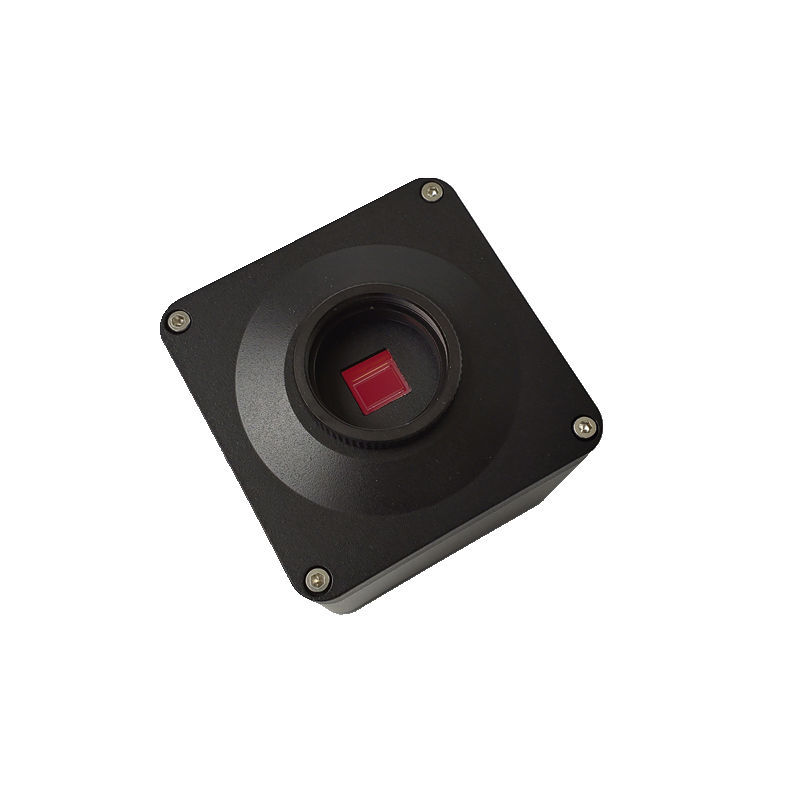

| Lens Mount | C/CS |

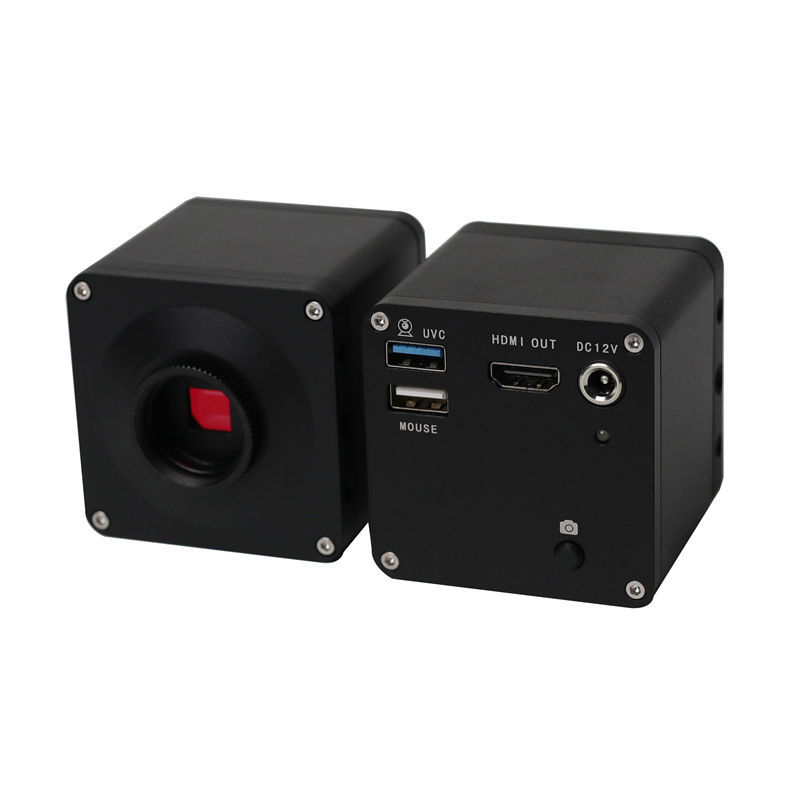

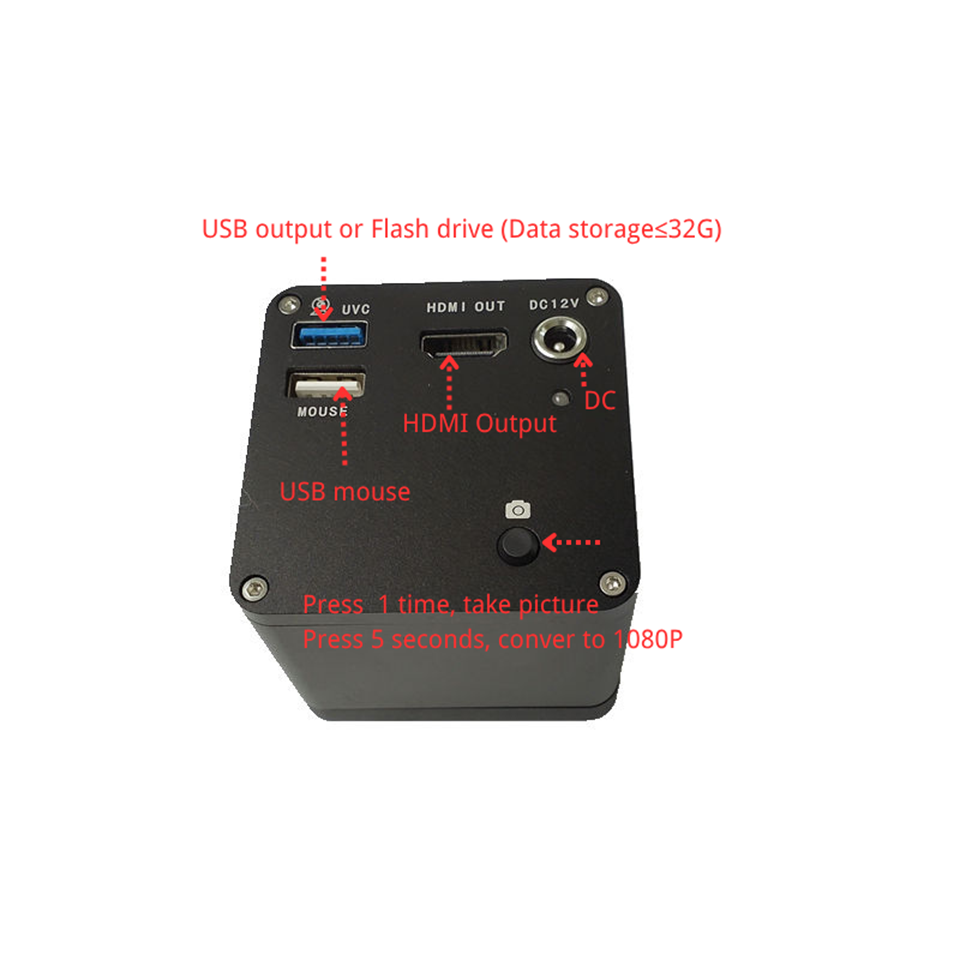

| Interface | HDMI + USB2.0*2 |
| Image Capture | U-disk memory (≤128G) |
| Output Resolution | 3840*2160 60Hz（ Default ） 1920*1080 60Hz |
| USB function | UVC camera or U-disk |

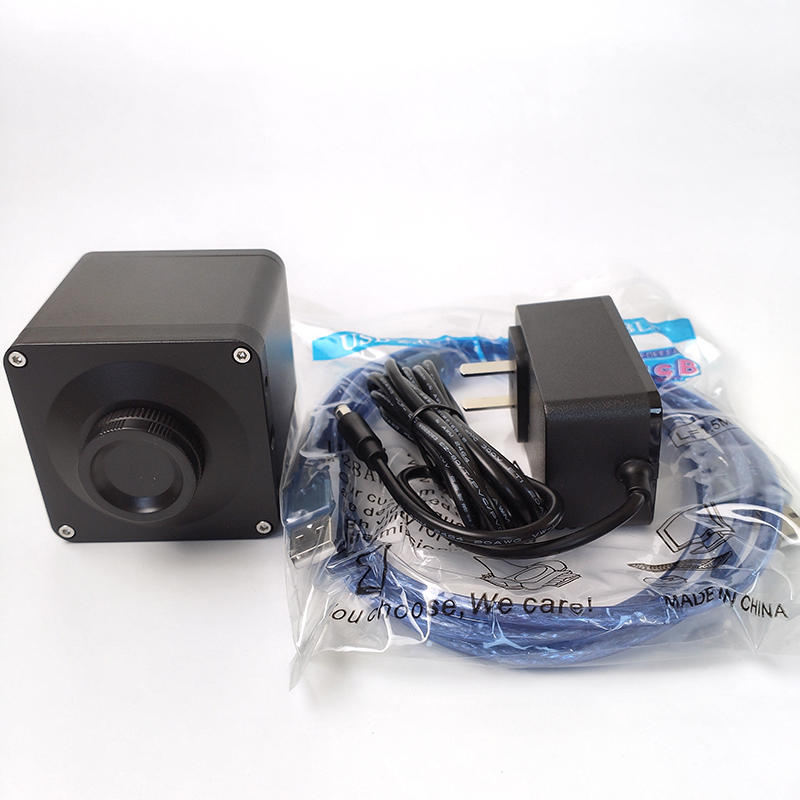

| Power Supply | DC 12V/2A Adapter |

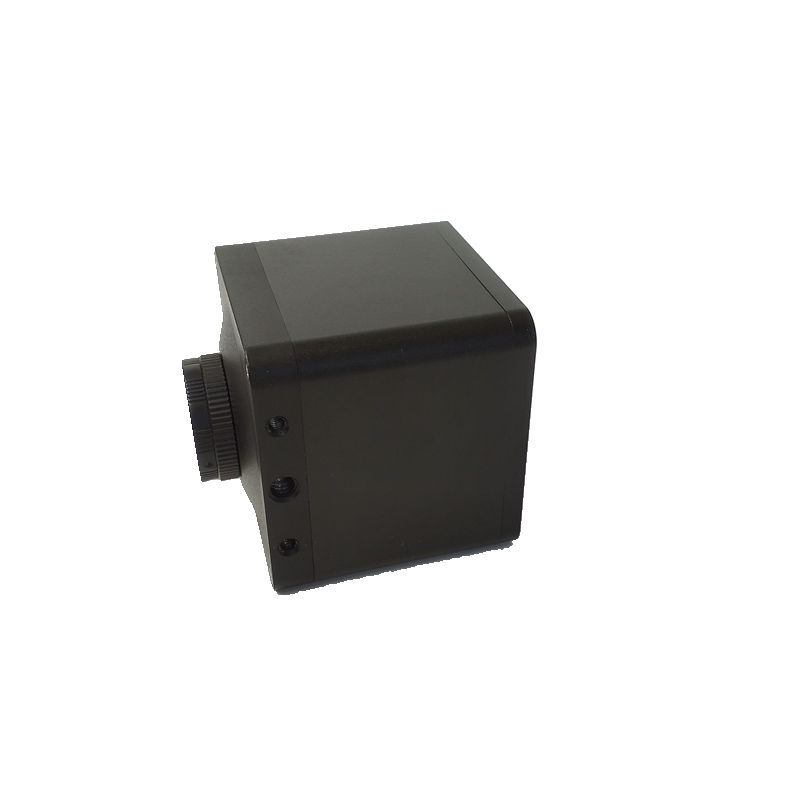

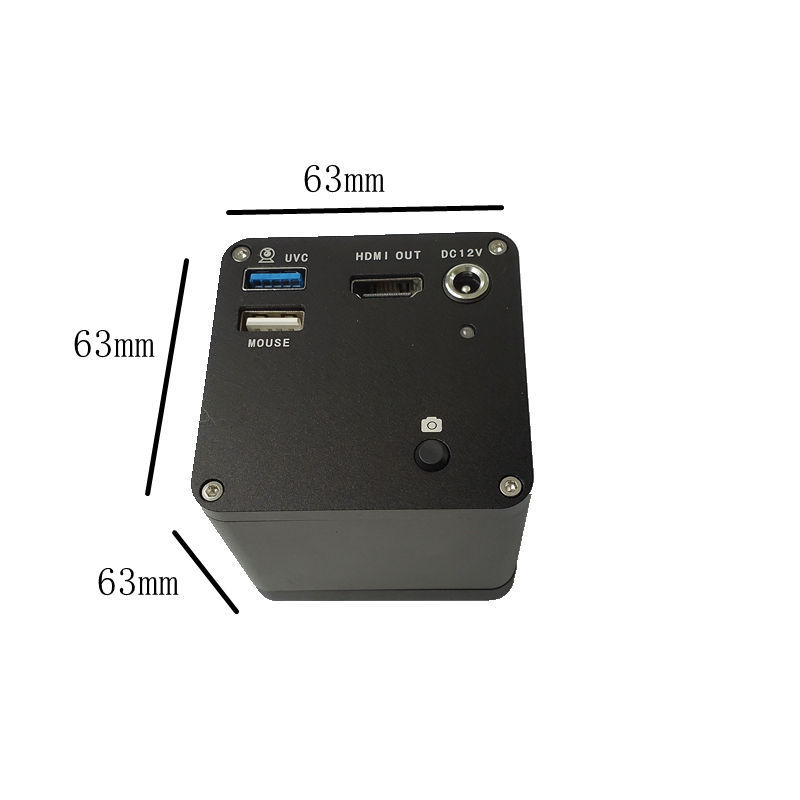

| Size | 63*63*63mm |
| Functions | 1. Two USB ports((one USB mouse , one USB for U-disk memory use or connected to PC for UVC camera use). 2. Save the images to USB drive, real time preview images or videos on USB drive or TF card. 3. Cross:1-12 cross group,color optional,and line is adjustable in width. 4. Freeze: Split screen display in two or four sections. 5. Scale ruler: The number of pixels in each interval can be adjusted arbitrarily. 6. Measurement functions: The distance between two points, rectangle, circle, angle etc. |
| Software image capture |  |
Product Advantages
Structural and Design Attributes Enhancing System Compatibility
The camera combines 4K HDMI output, USB UVC connectivity, image storage, playback functionality, and customizable overlay tools within a compact and integrated design. Its versatile architecture allows seamless compatibility with microscopes, monitors, computers, and various inspection systems. Horizontal and vertical image mirroring further enhances adaptability across different optical configurations and operational environments.
Enhanced Performance and Operational Efficiencies
With ultra-high-definition 3840 × 2160 resolution, smooth 60FPS performance, and progressive scan technology, the camera delivers outstanding image quality for precision inspection and analysis. Automatic and manual white balance ensure accurate color reproduction, while built-in image capture, playback, and customizable 12-group crosshair overlays improve workflow efficiency and operational accuracy. Together, these features provide a professional imaging solution that helps users complete inspection, documentation, and observation tasks more effectively.

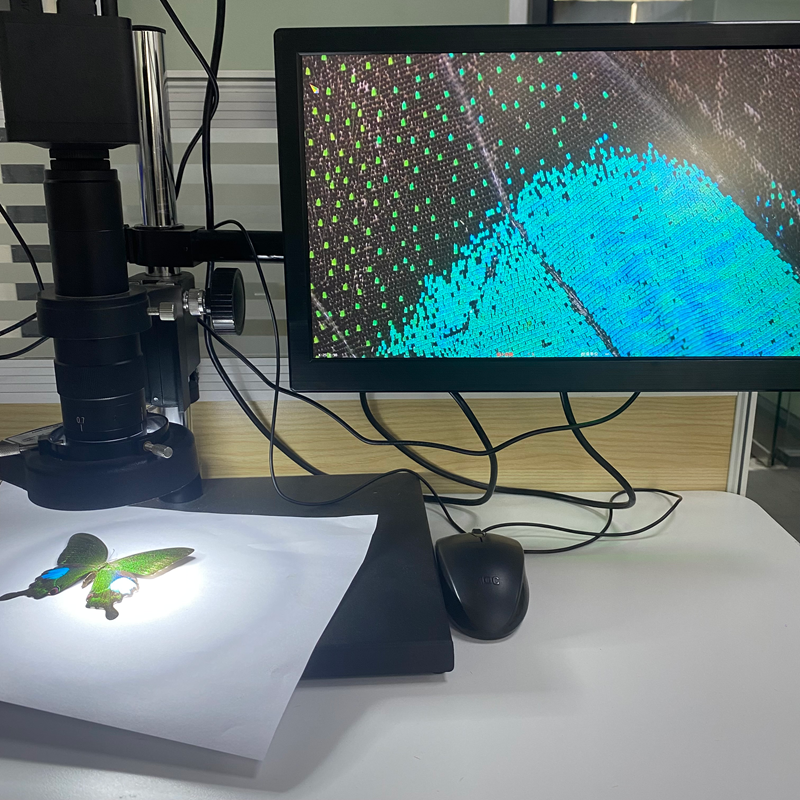

This 4K digital microscope camera is designed for a wide range of imaging applications, including PCB inspection, electronics repair, industrial quality control, laboratory observation, biological research, and educational demonstrations. With high-resolution imaging and real-time display capabilities, it helps users capture fine details accurately and efficiently.

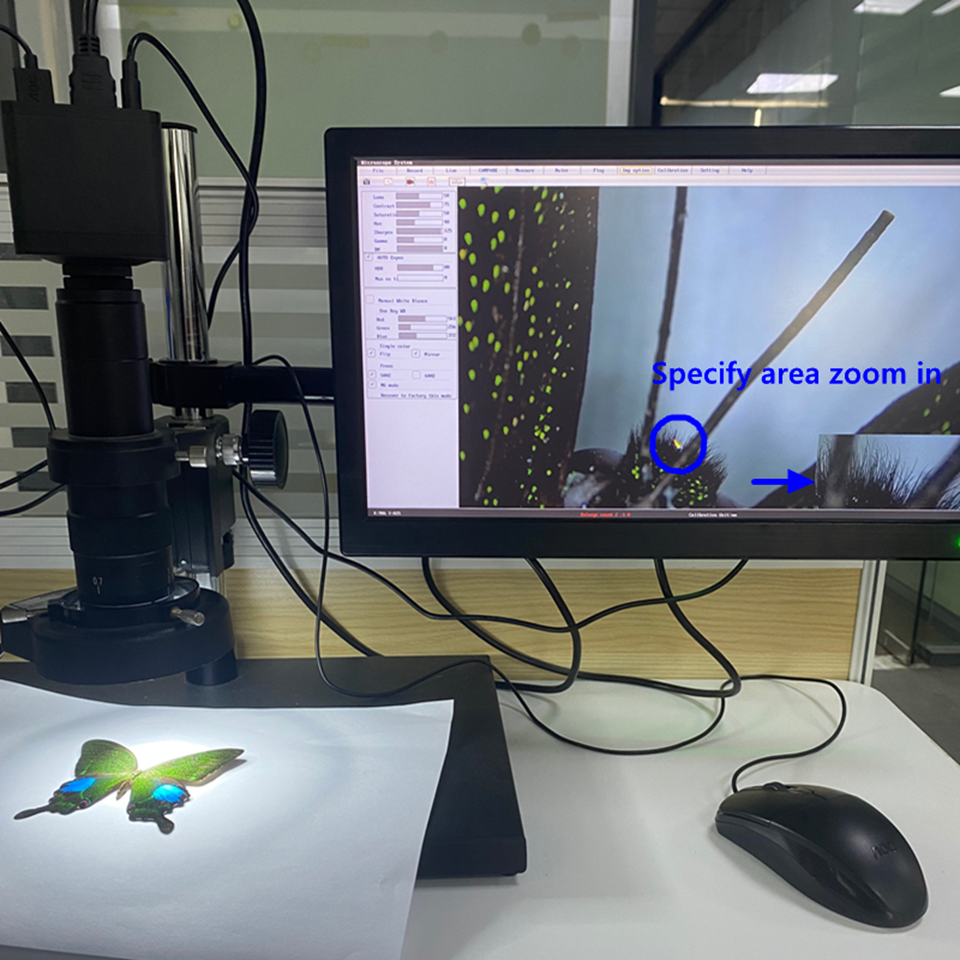

Yes. When used with compatible software, the camera supports dimensional measurement, angle measurement, area calculation, and annotation functions. These tools are useful for quality inspection, engineering analysis, and scientific research.
We understand the needs of industrial buyers and provide support for system integration, including Ethernet networking compatibility. Contact us to discuss custom production plans or integration of our usb digital microscope camera into your workflow.
We offer comprehensive after-sales service covering technical support and maintenance guidance. Our team is ready to assist with setup, troubleshooting, and software updates to ensure your microscope camera manufacturers investment performs reliably over time.
