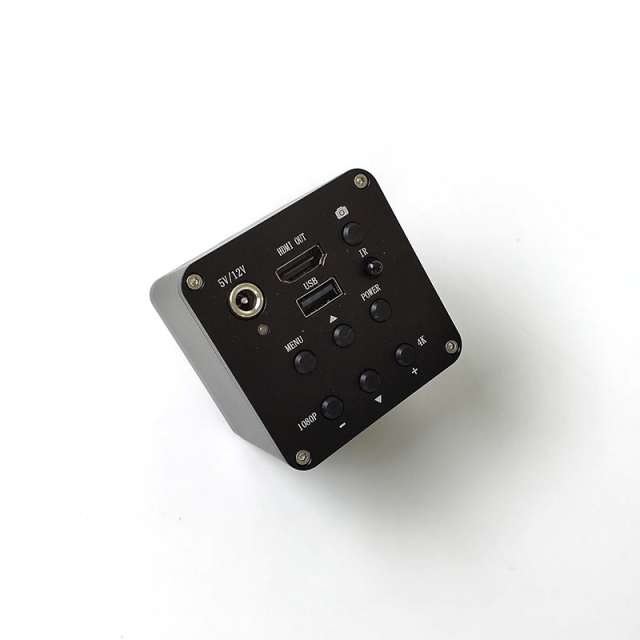

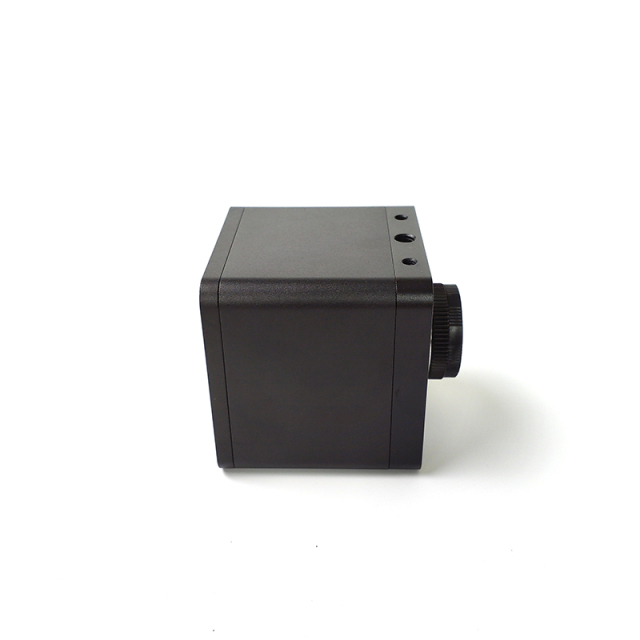

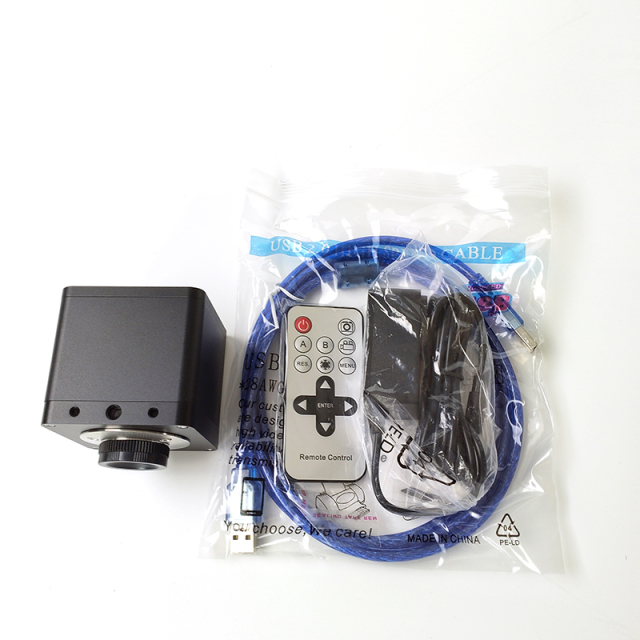

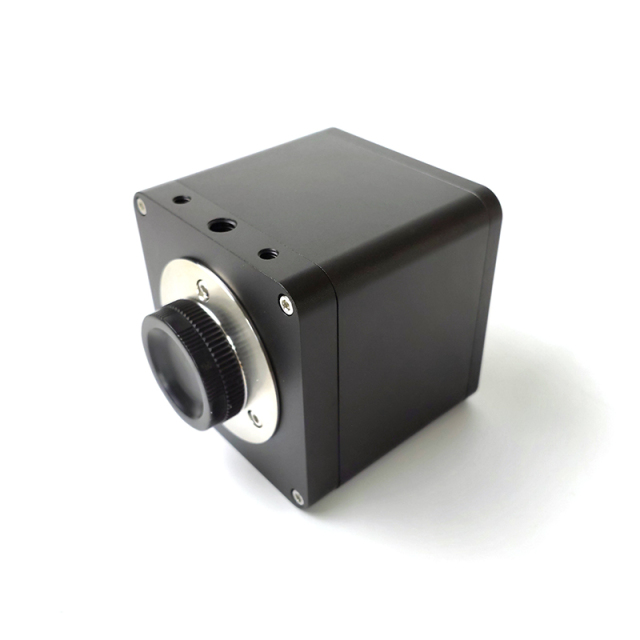

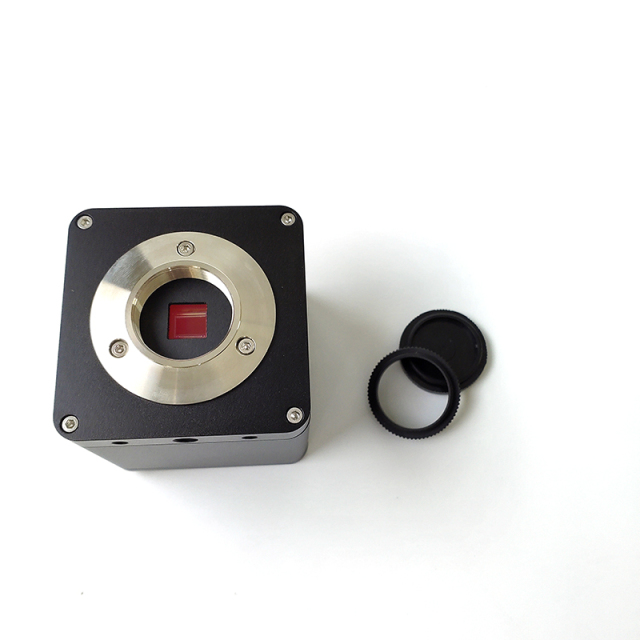

4K HDMI USB Microscope Camera with 8MP Sony CMOS Sensor

No.B265

4K 8MP clarity, HDMI+USB outputs, and 32GB USB saving – a high-performance microscope camera

Specifications

4K Ultra HD 8MP, 1/1.8″ Sony CMOS sensor

C/CS mount , HDMI + USB interface

High Definition 3840*2160, Full hd HDMI Display

Multi-function camera (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

Functions of snap, video recorder, cross line etc.

Industrial camera with button operation

USB port can be connected to computer for UVC camera use

With remote control

GET A QUOTE

Description

B265-1/1.8 Specification

Sensor	8MP,1/1.8" Sony CMOS
Effective Pixels	3840*2160
Bit	12bit
Pixel Size(μm)	2.0μm*2.0μm
FPS	30fps@3840*2160
Sharpness	Above 1800TV line
Scan mode	Progressive scan
Shutter Type	Electronic shutter
Dynamic Range	>90dB
SNR	55dB
Sensitivity	2.0 V/lux-sec (550nm)
Exposure Mode	Manual / Auto
White Balance	Manual / Auto
Lens Mount	C/CS
Interface	HDMI + USB2.0
Image Capture	U-disk memory
Output Resolution	38402160 60Hz（ Default ） 19201080 60Hz
USB function	UVC camera or U-disk
Remote Control	Yes
Power Supply	DC 12V/2A Adapter
Size	636363mm

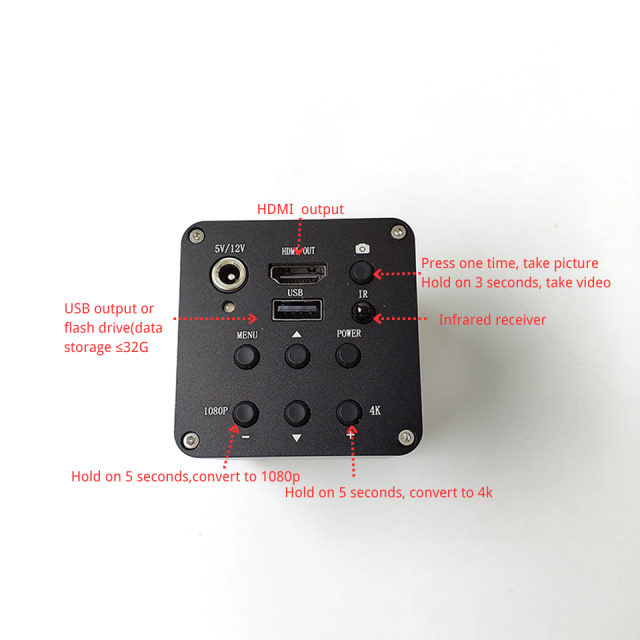

Functions	1.Two USB ports((one U-disk memory use , one connected to PC for UVC camera use). 2.Save the images to USB drive,view images or videos on USB drive. 3.Cross:1-8 cross group,color optional,and line is adjustable in width.

Frequently Asked Questions

Our most frequently asked questions

1. What sensors do your cameras use? Are they Sony, CMOS, or CCD?

We primarily use high-performance Sony CMOS sensors (e.g., IMX series) and Rolling Shutter CMOS sensors for industrial applications. Our sensors are selected for low noise, high quantum efficiency, and excellent color fidelity. We no longer use CCD in our latest models, as modern CMOS technology offers better speed and sensitivity.

Tip: If you have a specific sensor requirement, please contact our sales team.

2. Are your cameras compatible with major microscope brands?

Yes, our cameras are designed to be optically compatible with most standard microscopes via C-mount adapters.

3. Do your cameras work on Mac or Windows?

Windows: Full support (10/11, 64-bit).

4. What is your warranty policy?

We offer a standard 1 year warranty on all cameras (excluding consumables if damaged by external factors).

Warranty covers:

- Manufacturing defects

- Sensor failures (non-physical damage)

- Electronic component failures under normal use

Extended warranty (up to 2-4 years) is available upon request.

5. Do you offer OEM/ODM services?

Yes, we do.

We provide:

OEM: Custom logo, packaging, and software branding.

ODM: Custom hardware design, sensor selection, and casing modification based on your application requirements.

Minimum Order Quantity (MOQ) for OEM/ODM varies depending on the complexity. Please contact us with your specific needs.

6. What is your typical lead time and MOQ?

Standard Products (in stock): Ships within 2-4 business days.

Bulk Orders (100+units): Typically 15-25 working days after order confirmation and payment.

MOQ (Minimum Order Quantity): 1 unit for sample testing, negotiable for mass production.
