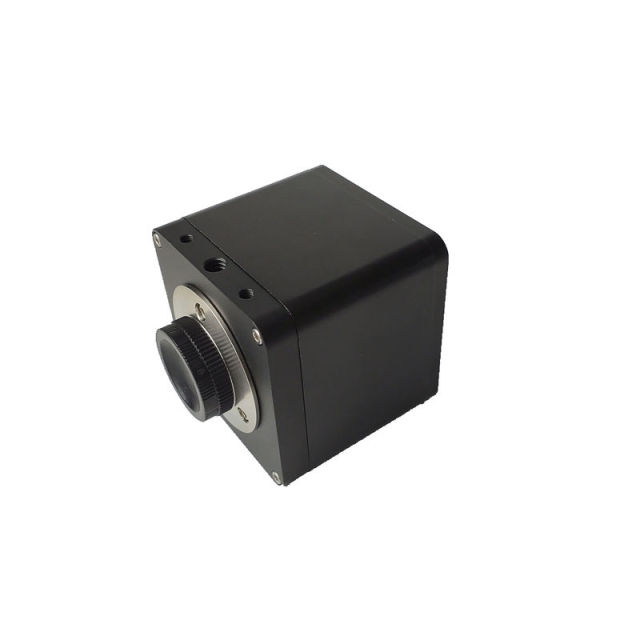

B33T Specification
| Sensor | 8MP,1/2.8" Sony CMOS |
| Effective Pixels | 3840H*2160V |
| Bit | 12bit |
| Pixel Size(μm) | 1.45μm*1.45μm |
| FPS | 30fps@3840*2160 |
| Sharpness | Above 1800TV line |
| Scan mode | Progressive scan |
| Shutter Type | Electronic shutter |
| Dynamic Range | >90dB |
| SNR | 55dB |
| Sensitivity | 2.0 V/lux-sec (550nm) |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |

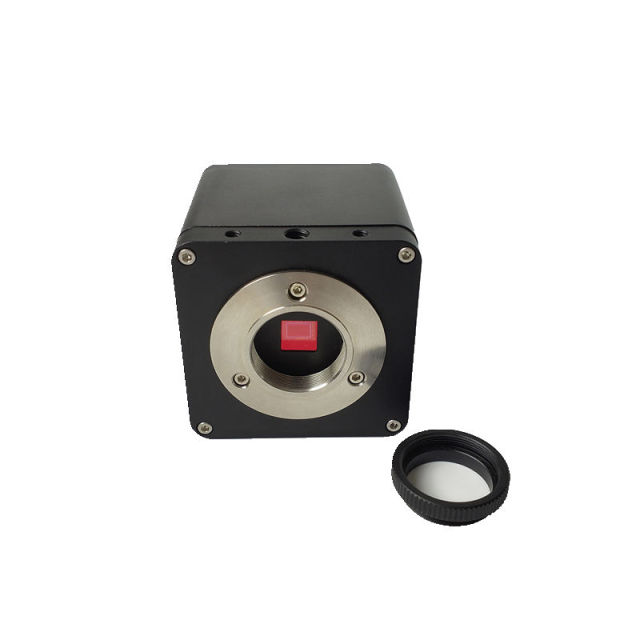

| Lens Mount | C/CS |

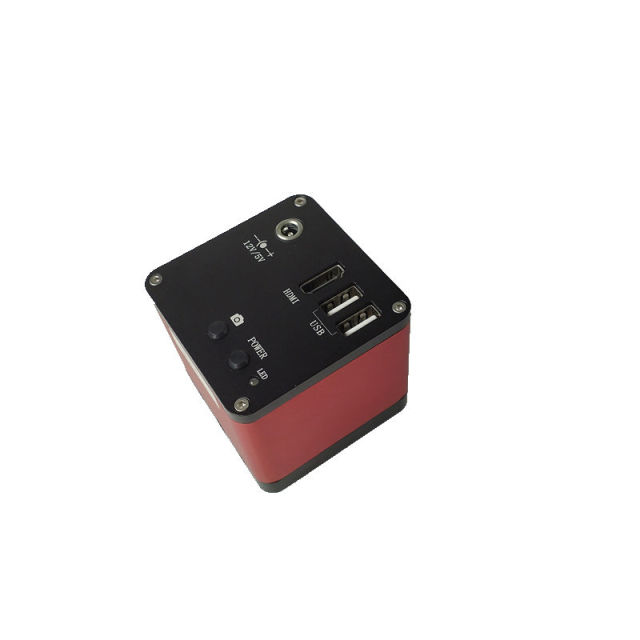

| Interface | HDMI + 2*USB2.0 |
| System Operation | With USB Mouse |
| Image Capture | U-disk memory |
| Output Resolution | 3840*2160 60Hz（ Default ） 1920*1080 60Hz |
| Operating System | Linux |
| Power Supply | DC 12V/1A Adapter |
| Size | 63*63*63mm |
| Functions | 1.Two USB 2.0 ports(One USB mouse, one U-disk memory). 2.Save the images to usb drive,view images or videos on usb drive. 3.Cross:1-12 cross group,Color optional,and line is adjustable in Width. 4.Scale Ruler:The number of pixels in each interval can be adjusted arbitrarily. 5.Measurement functions: The distance between two points,rectangle,circle,angle,etc. |
We primarily use high-performance Sony CMOS sensors (e.g., IMX series) and Rolling Shutter CMOS sensors for industrial applications. Our sensors are selected for low noise, high quantum efficiency, and excellent color fidelity. We no longer use CCD in our latest models, as modern CMOS technology offers better speed and sensitivity.
Tip: If you have a specific sensor requirement, please contact our sales team.

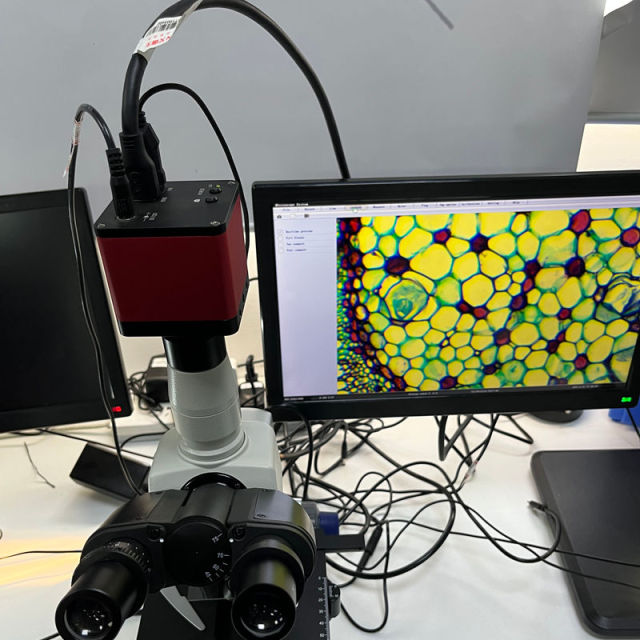

Yes, our cameras are designed to be optically compatible with most standard microscopes via C-mount adapters.
Windows: Full support (10/11, 64-bit).
We offer a standard 1 year warranty on all cameras (excluding consumables if damaged by external factors).
Warranty covers:
- Manufacturing defects
- Sensor failures (non-physical damage)
- Electronic component failures under normal use
Extended warranty (up to 2-4 years) is available upon request.
Yes, we do.
We provide:
OEM: Custom logo, packaging, and software branding.
ODM: Custom hardware design, sensor selection, and casing modification based on your application requirements.
Minimum Order Quantity (MOQ) for OEM/ODM varies depending on the complexity. Please contact us with your specific needs.
Standard Products (in stock): Ships within 2-4 business days.
Bulk Orders (100+units): Typically 15-25 working days after order confirmation and payment.
MOQ (Minimum Order Quantity): 1 unit for sample testing, negotiable for mass production.
