B36 Specification
| Sensor | 8MP,1/1.8" Sony CMOS |
| Effective Pixels | 3840*2160 |
| Bit | 12bit |
| Pixel Size(μm) | 2.0μm*2.0μm |
| FPS | 60fps@3840*2160 |
| Sharpness | Above 1500TV line |
| Scan mode | Progressive scan |
| Shutter Type | Rolling shutter |
| SNR | 55dB |
| Sensitivity | 2.0 V/lux-sec (550nm) |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |
| Lens Mount | C/CS |
| Interface | HDMI + USB2.0*2 + Gigabit |
| Image Capture | U-disk memory, TF card |
| Output Resolution | 3840*2160 60Hz（ Default ） 1920*1080 60Hz |
| USB function | UVC camera or U-disk |
| Power Supply | DC 12V/2A Adapter |

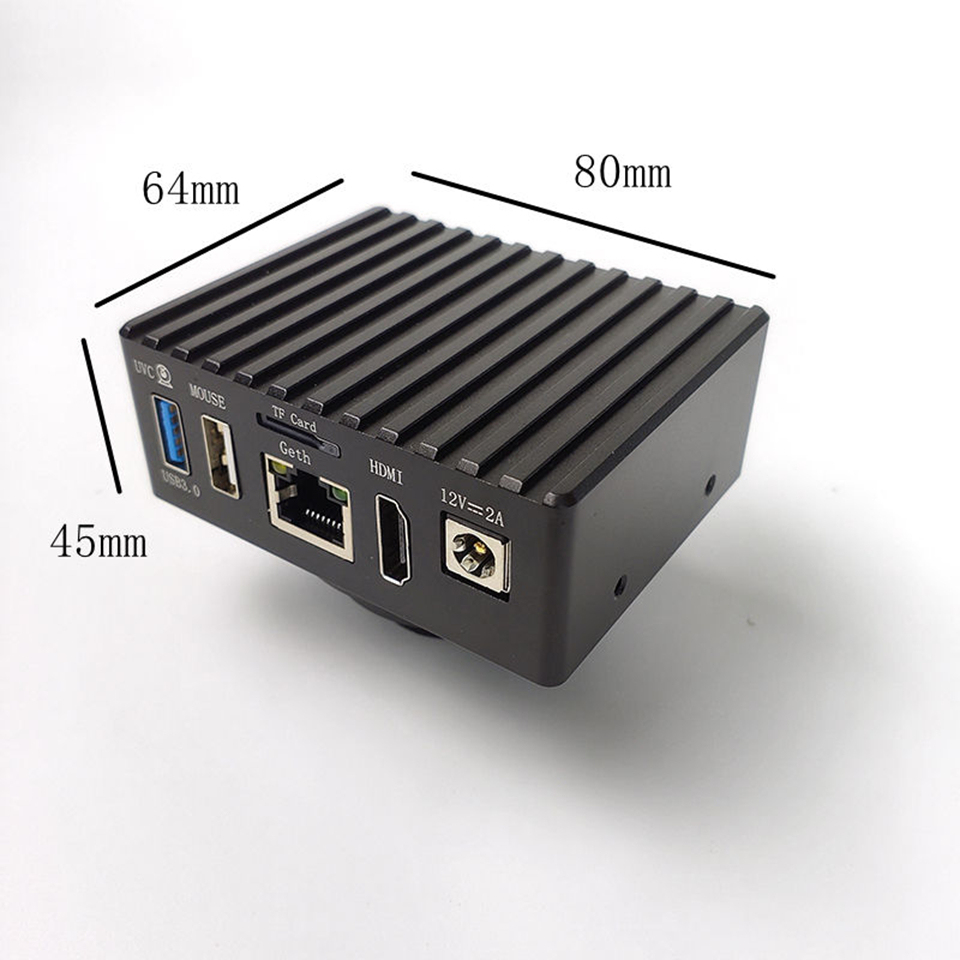

| Size | 80*64*45mm |

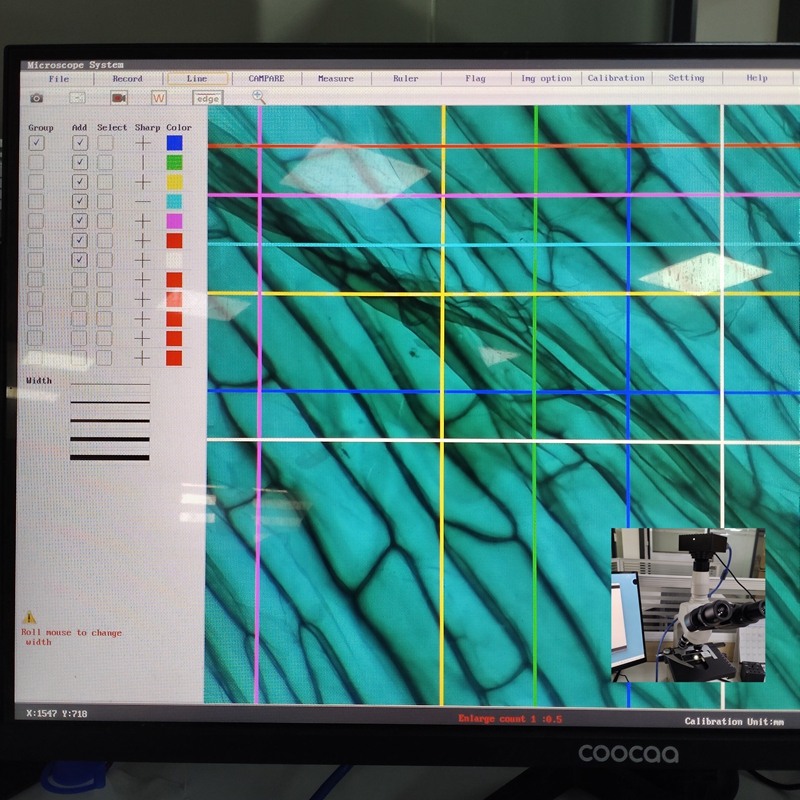

| Functions | 1. Two USB ports((one USB mouse , one USB for U-disk memory use or connected to PC for UVC camera use). 2. Save the images to USB drive or TF card,real time preview images or videos on USB drive or TF card. 3. Cross:1-12 cross group,color optional,and line is adjustable in width. 4. Freeze: Split screen display in two or four sections. 5. Scale ruler: The number of pixels in each interval can be adjusted arbitrarily. 6. Measurement functions: The distance between two points, rectangle, circle, angle etc. |
| Software image capture |  |
Product Advantages
Structural and Design Attributes Enhancing System Compatibility
This digital microscope camera features a robust, compact design with C/CS lens mount compatibility, allowing straightforward integration into existing optical systems. The multi-interface architecture, including HDMI, dual USB 2.0, and Gigabit Ethernet ports, supports diverse connectivity requirements encountered in professional environments. Its modular firmware and hardware optimize adaptability, facilitating quick workflow adjustments and expanding application versatility. As a seasoned microscope camera manufacturer, Phantrue ensures that this usb digital microscope camera balances engineering precision with practical deployment needs.
Enhanced Performance and Operational Efficiencies
Performance-wise, the camera delivers high signal-to-noise ratio (55 dB) and 12-bit color depth for superior image quality critical in research and industrial examinations. Features like snap shooting, video recording, and freeze-frame playback improve usability while supporting precise measurement functions directly within the integrated software suite. The device’s real-time HDMI output enables standalone operation without PC dependency, enhancing flexibility. This combination of high-resolution imagery, responsive controls, and multi-platform connectivity elevates productivity for engineers and technicians utilizing usb digital microscope camera technology.

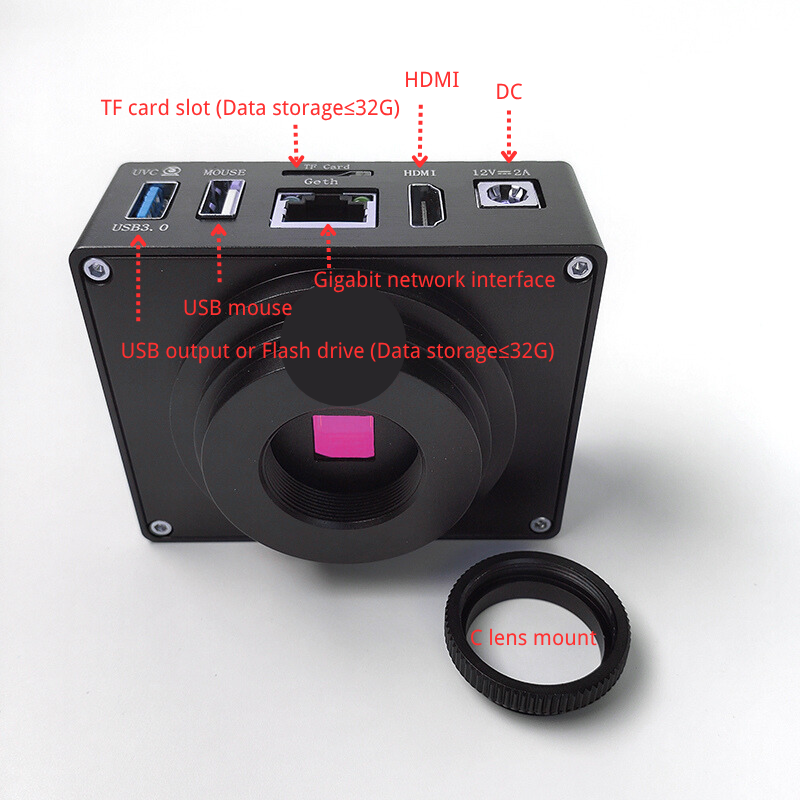

We provide versatile connectivity with HDMI output for direct display, USB 2.0 ports for PC connection, and a Gigabit Ethernet interface for networked environments. This allows flexible integration for multiple use cases with our digital microscope camera.
Yes, our microscope camera includes built-in measurement functions through integrated software. You can analyze distances, angles, and shapes directly on captured images, ensuring accuracy for PCB inspection or industrial quality control tasks.
We understand the needs of industrial buyers and provide support for system integration, including Ethernet networking compatibility. Contact us to discuss custom production plans or integration of our usb digital microscope camera into your workflow.
We offer comprehensive after-sales service covering technical support and maintenance guidance. Our team is ready to assist with setup, troubleshooting, and software updates to ensure your microscope camera manufacturers investment performs reliably over time.
