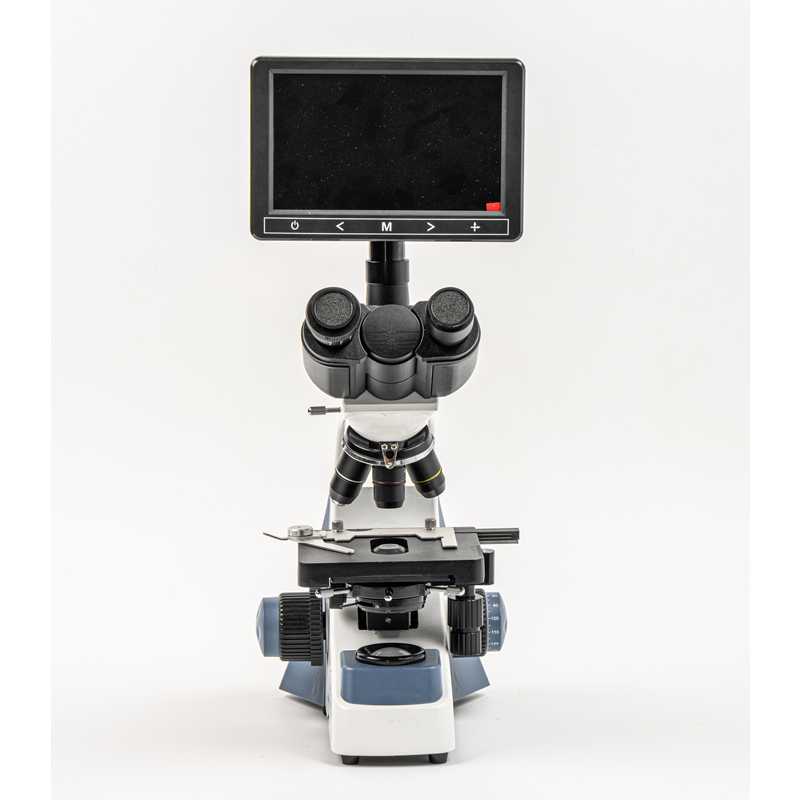

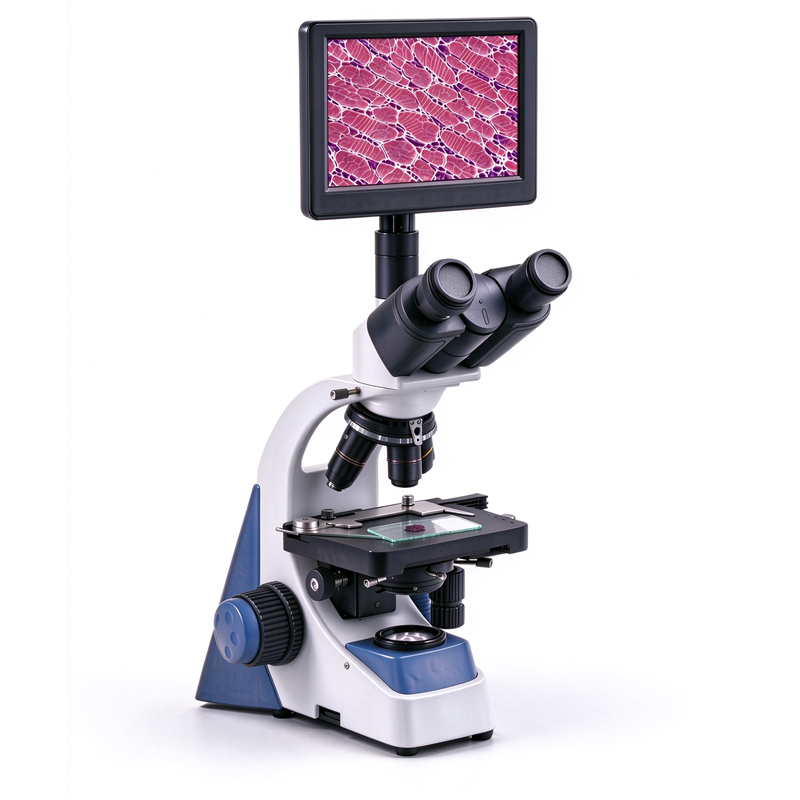

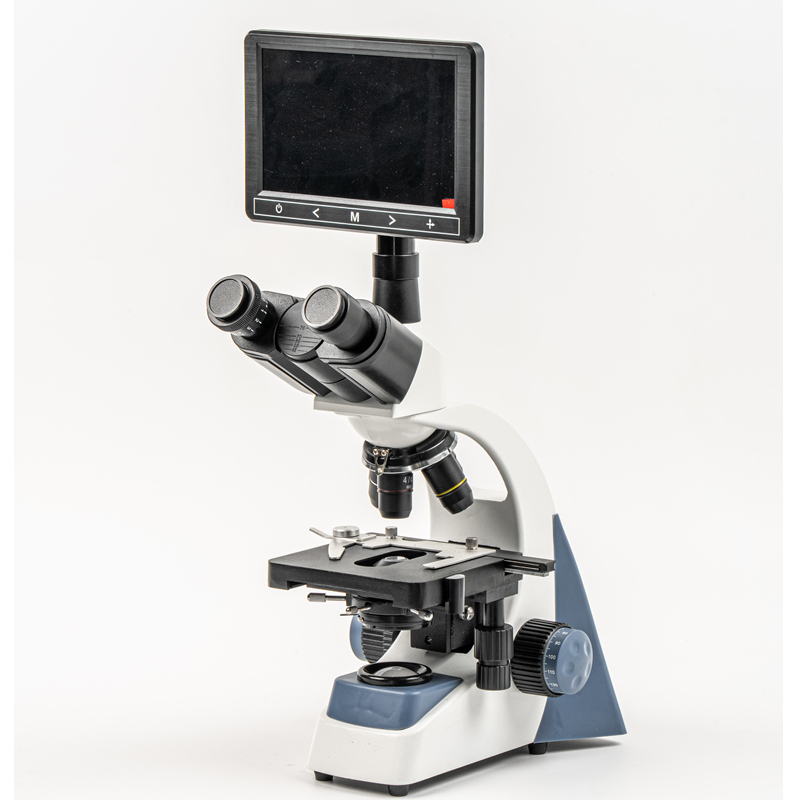

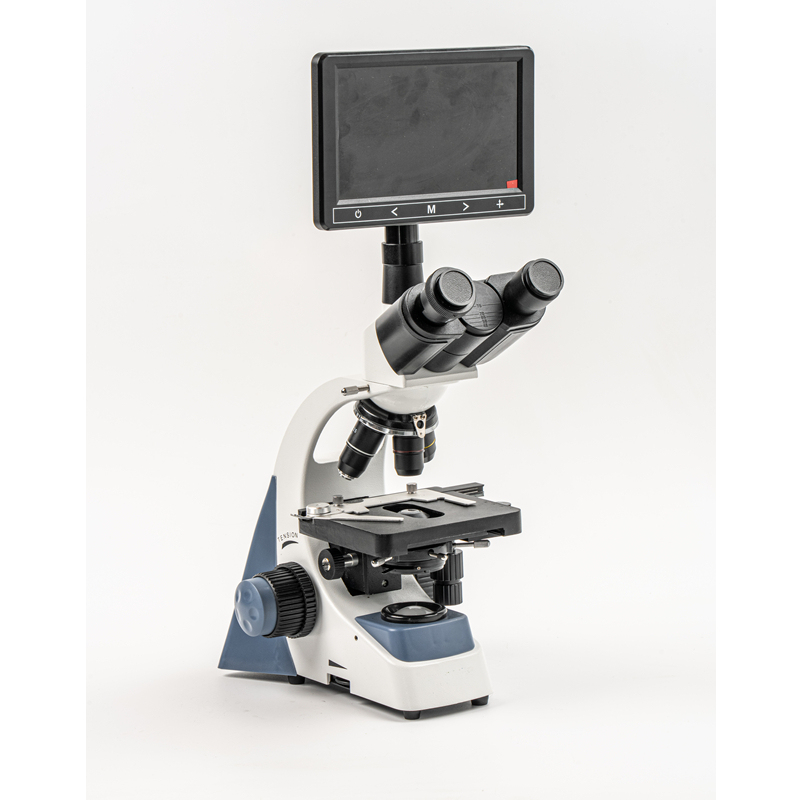

Biological Microscope Specification
| Eyepiece | WF10X |
| Object lens | 4X,10X,40X(S),100X(S,Oil) |
| Viewing head | Trinocular |
| Converter | Four holes inward |
| Stage | Double layer mechanical stage size： 115*125mm |
| Condenser | Abbe NA=1.25 with Iris Diaphragm&Filter |
| Focusing | Coaxial coarse and Fine adjustment, Focusing range 17mm,Focusing interval 0.002mm |
| Illumination | LED 1W lamp 220V or 110V |
| Display | 9" LCD screen |
| Resolution | 800*480 (1024*600) |
| Camera | 1/3" CMOS sensor, 2MP |
| Output | HDMI |
| Video adapter | 1X |
