4K Wall-Mounted A4 Document Camera in a Compact Enclosure
The FT-F800B 4K is a wall-mounted optical document camera designed to keep the podium area clean while delivering clear 4K imaging. Built around an 8‑megapixel 1/2.8" CMOS sensor with 12x optical and 10x digital zoom, it presents A4 and smaller documents, textbooks and teaching aids in high detail on classroom displays.
White ABS Housing That Folds into a Clean Wall Box

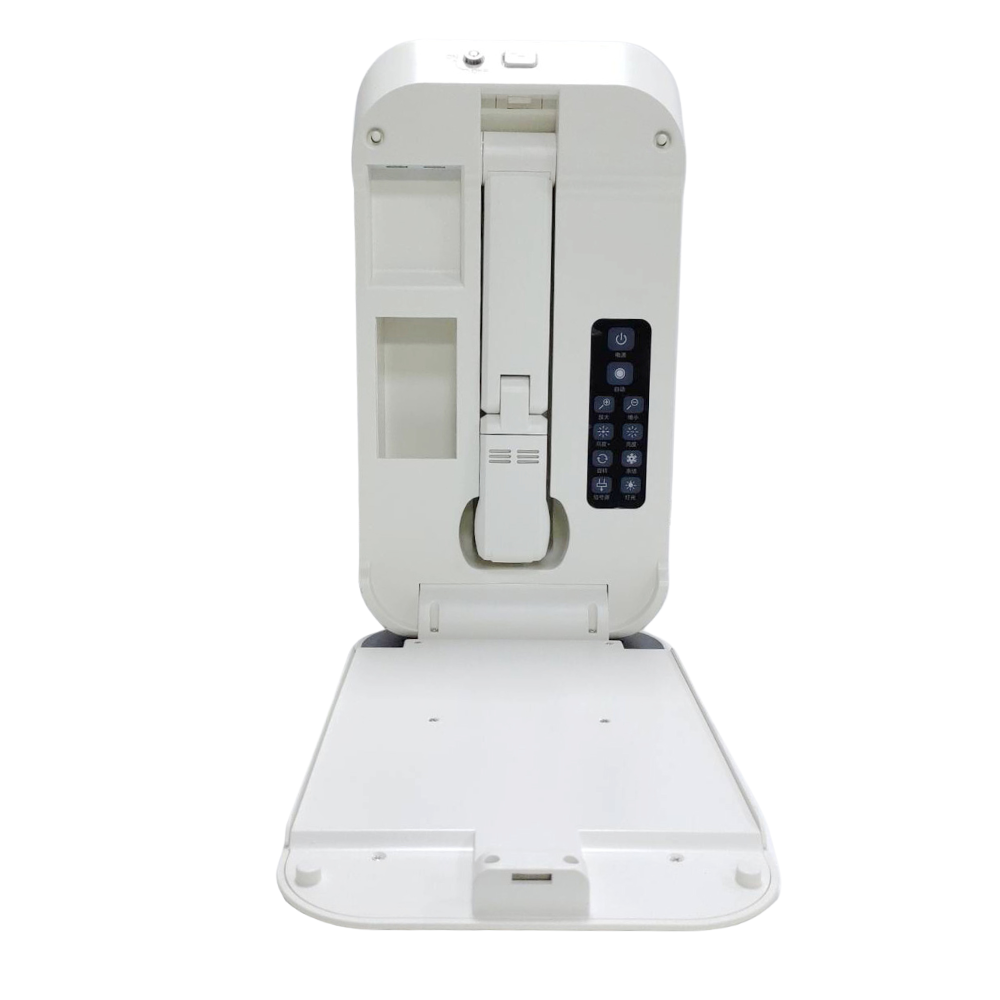

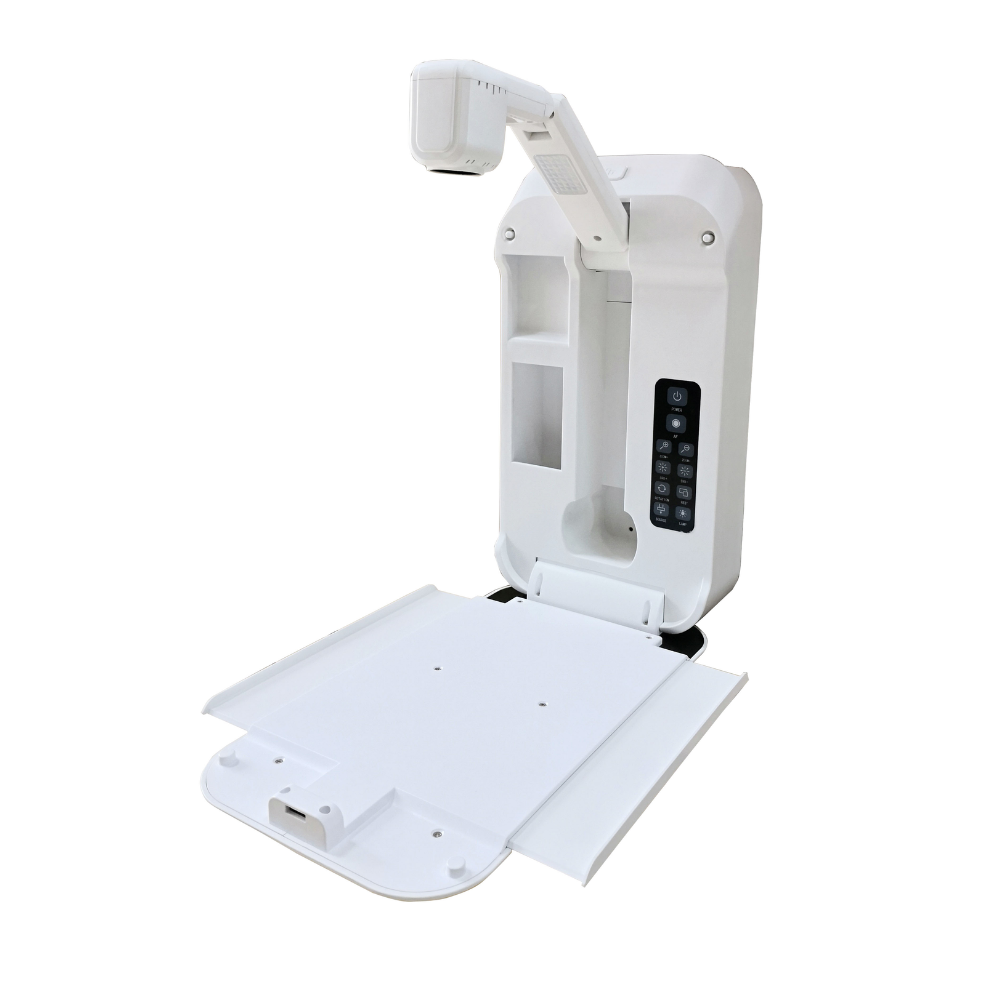

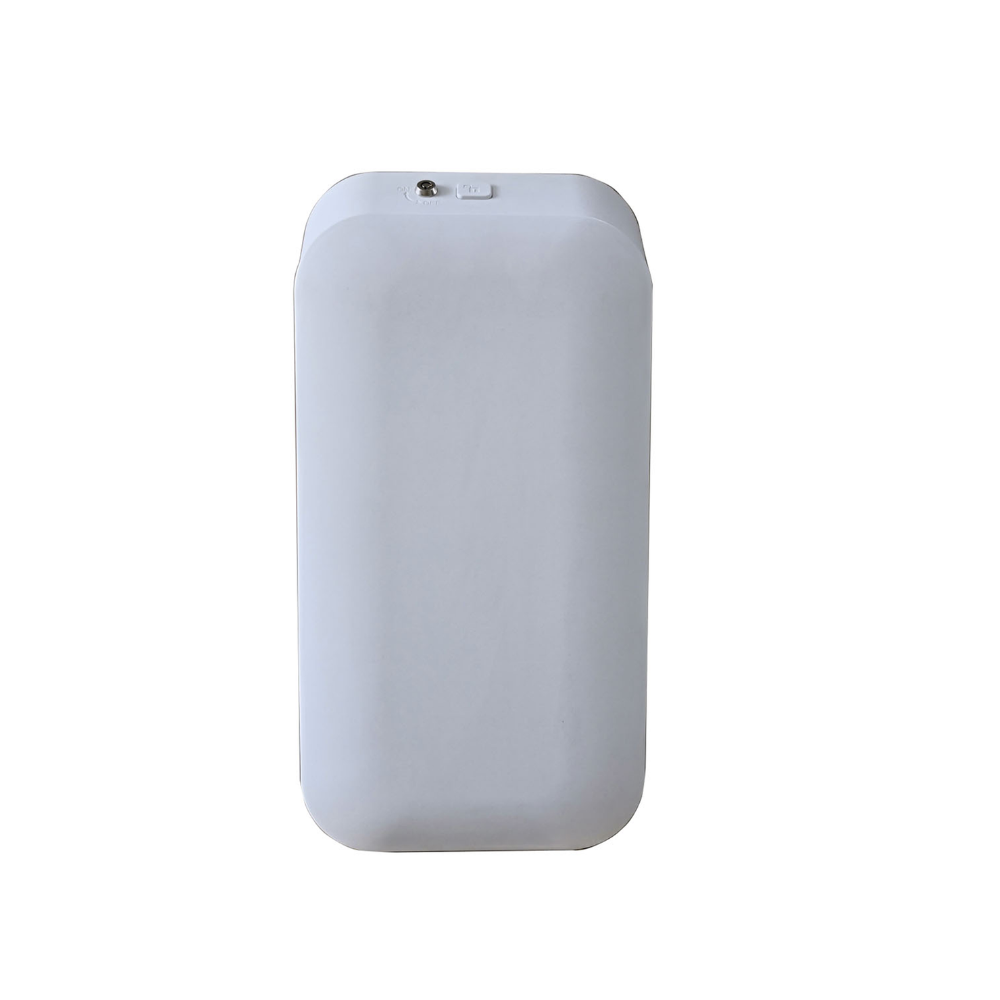

Featuring an exclusive white ABS enclosure, the FT-F800B 4K folds neatly into a slim wall-mounted box when not in use. When opened, the integrated platform supports documents and objects for teaching. When closed, the unit blends into the wall as a clean, minimalist white panel, helping classrooms look organized and modern.
Mechanical Lock with Key for Secure Storage
To protect the device in shared environments, the FT-F800B 4K is equipped with a mechanical lock and key. Teachers can close and lock the housing after class, preventing unauthorized access and accidental damage while also reducing dust accumulation on the optics and controls.
4K Output and Multiple Interfaces for Easy Integration
The FT-F800B 4K supports 3840×2160@30Hz output via HDMI and 1920×1080@60Hz via HDMI and VGA, making it suitable for interactive flat panels, projectors and classroom TVs. It also includes audio interfaces and a USB 2.0 Type‑B (UVC) port for connection to Windows computers, plus USB Type‑A expansion ports for peripherals when needed.
Visualizer Software Support for Teaching and Recording
When connected to a Windows® 7/8/10/11 computer through USB, the FT-F800B 4K works with the Phantrue Visualizer software. Teachers can use Live Camera, Video, Scan and Comparison modules for real-time projection, lesson recording, document scanning and side-by-side comparisons. This combination of wall-mounted design, secure enclosure and 4K imaging makes the FT-F800B 4K well suited for modern, tidy smart classrooms.
| Model | FT-F800B 4K |
| Description | Optical Wall-mounted Document Camera |
| Image Sensor | 1/2.8" CMOS |
| Total Pixels | 8MP |
| Zoom | 12x optical ,10x digital zoom |
| Shooting Area | A4–A3 |
| Focus | Automatic / Manual |
| Resolution | USB:3840*2160@15fps, 1920*1080@30fps |
| HDMI: 3840*2160@30Hz, 1920*1080@60Hz, 1024*768@60Hz | |
| VGA:1920*1080@60Hz, 1024*768@60Hz | |
| Lamp | LED light with three-level dimming |
| White balance | Automatic |
| Free Software | Visualizer, supports Windows® 7, 8, 10, 11 |
| IR Remote Control | Standard |
| Built-in Mic | Standard |
| Operating Voltage | 12V DC power adapter |

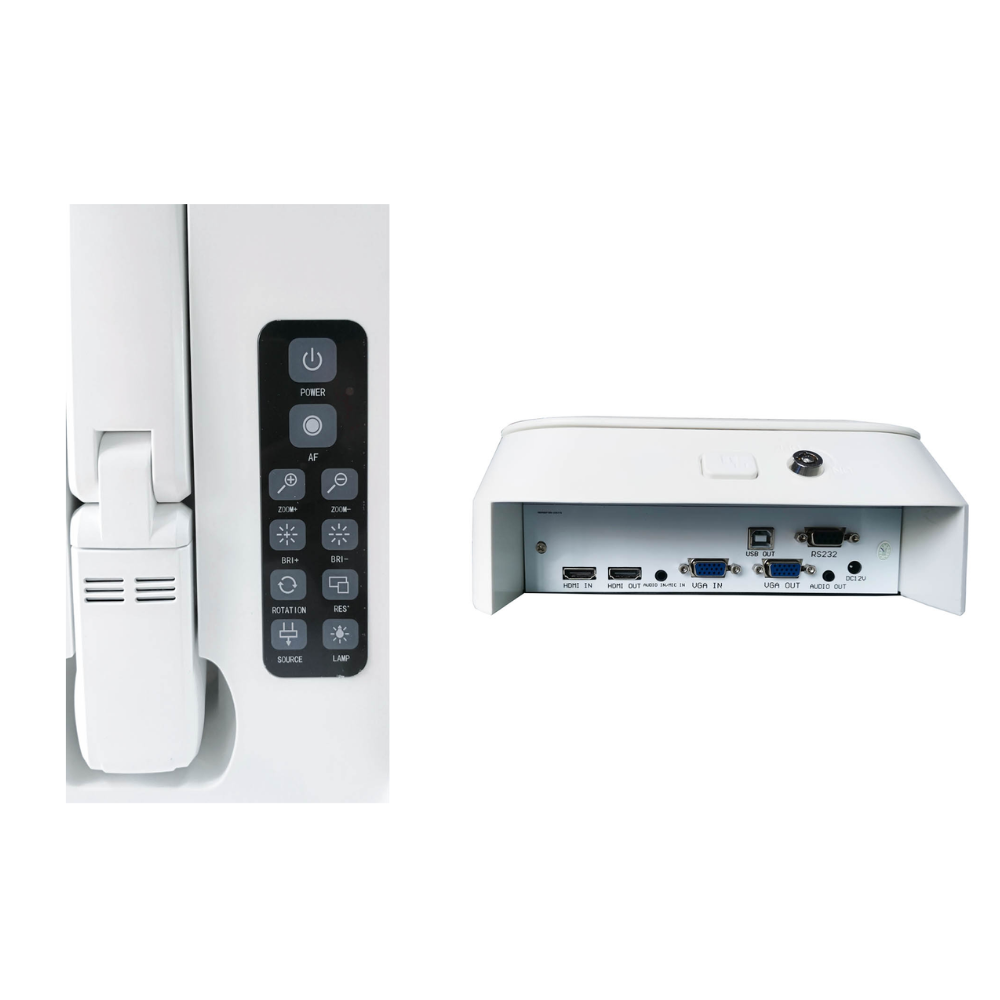

| Input Interface | 1 × HDMI, 1 × VGA, 1 × AUDIO |
| Output Interface | 2×VGA, 1 × HDMI, 1 × Audio, 1 × USB2.0 B, 1 × USB2.0 A*2 |
| USB Interface | 1 × USB 2.0 Type-B (UVC), 2 × USB 2.0 Type-A expansion ports (for external devices) |
| Device Dimension | Folding Dimension: 441*220*90mm, Unfolding Dimension: 415*220*486mm |
| Expandable Storage | Not supported (TF card slot is for firmware/software upgrade only) |
| USB Video Stream Format | Support MJPG |
| Image Format | Support JPG/BMP/PNG/TIF/PDF |
| Image Storage | Stored on the computer or USB flash drive via PC software (Visualizer). |
| Buttons Function | Power, Sourcing, Lamp, Auto Focus, Zoom in&out, Brightness+-, Rotate, Freeze |
| N.W./G.W. | 3.3kg |
| Anti-Theft | Mechanism Locker with Keys |
| Accessories | VGA cable, HDMI cable, USB cable, remote-control,DC 12V adpater with cable, |
| Features | via Software | via IR Remote |
|---|---|---|
| Annotation | √ | × |
| Snap | √ | √ |
| Recording | √ | × |
| Playback | √ | × |
| Split Screen | √ | × |
| Picture in picture | × | × |
| Freeze | √ | √ |
| Auto focus | √ | √ |
| Zoom In/Out | √ | √ |
| Local Zoom | × | × |
| Rotation | √ | √ |
| Mirror | × | √ |
| Color/Black and White | √ | √ |
| Brightness+- | √ | √ |
| Text/Picture | √ | √ |
| Sharpness+- | √ | √ |
| Negative | × | √ |
