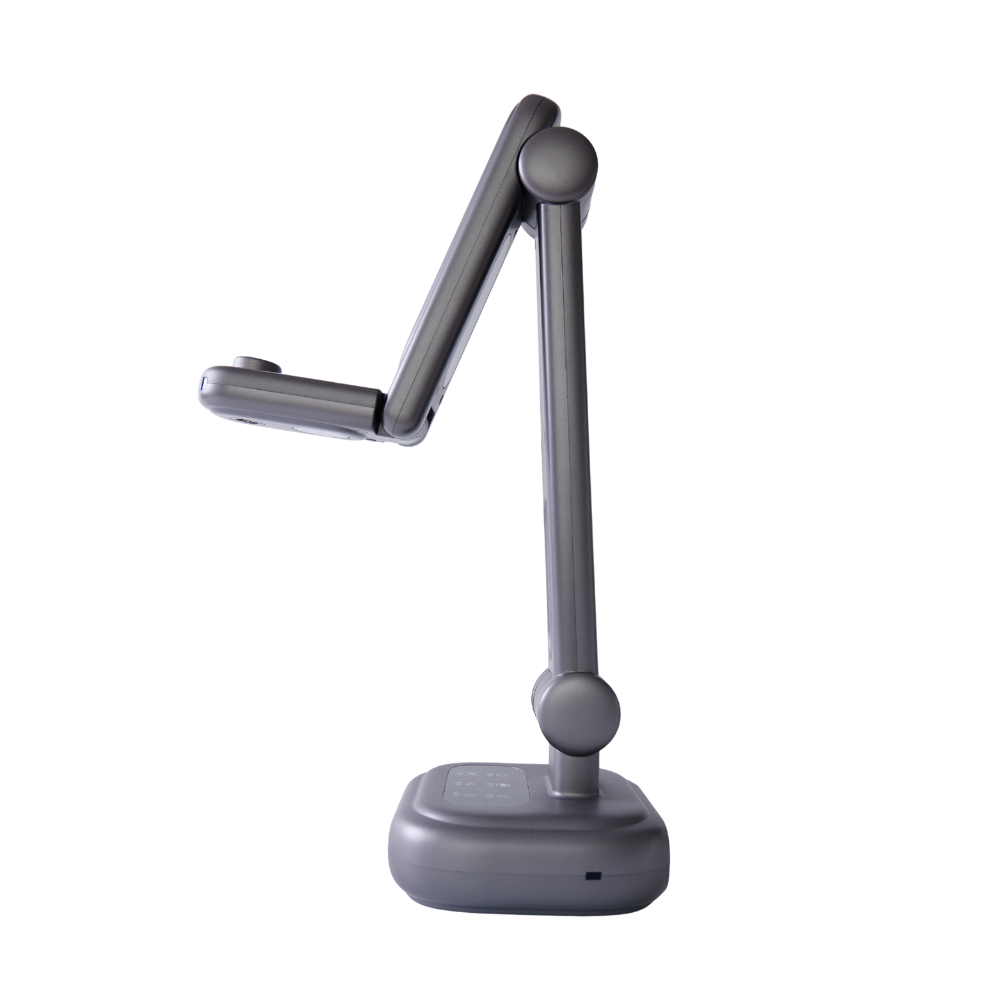

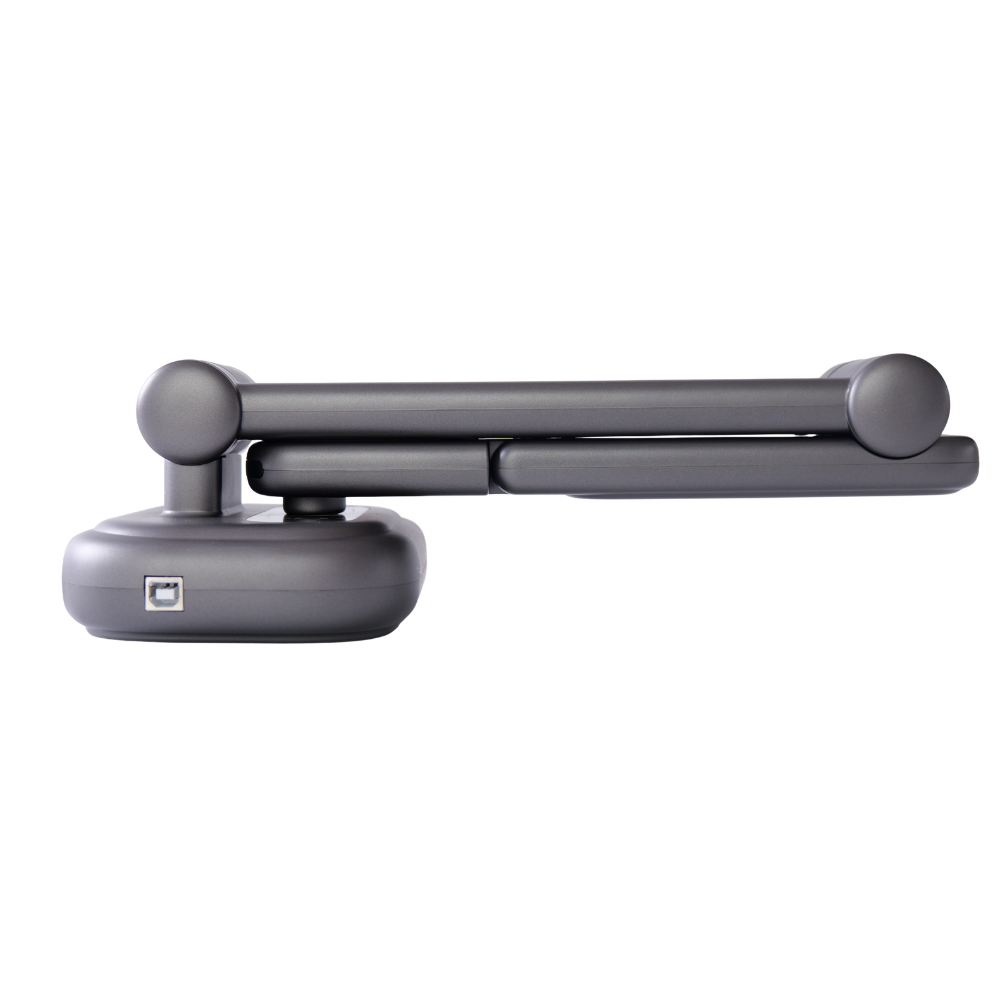

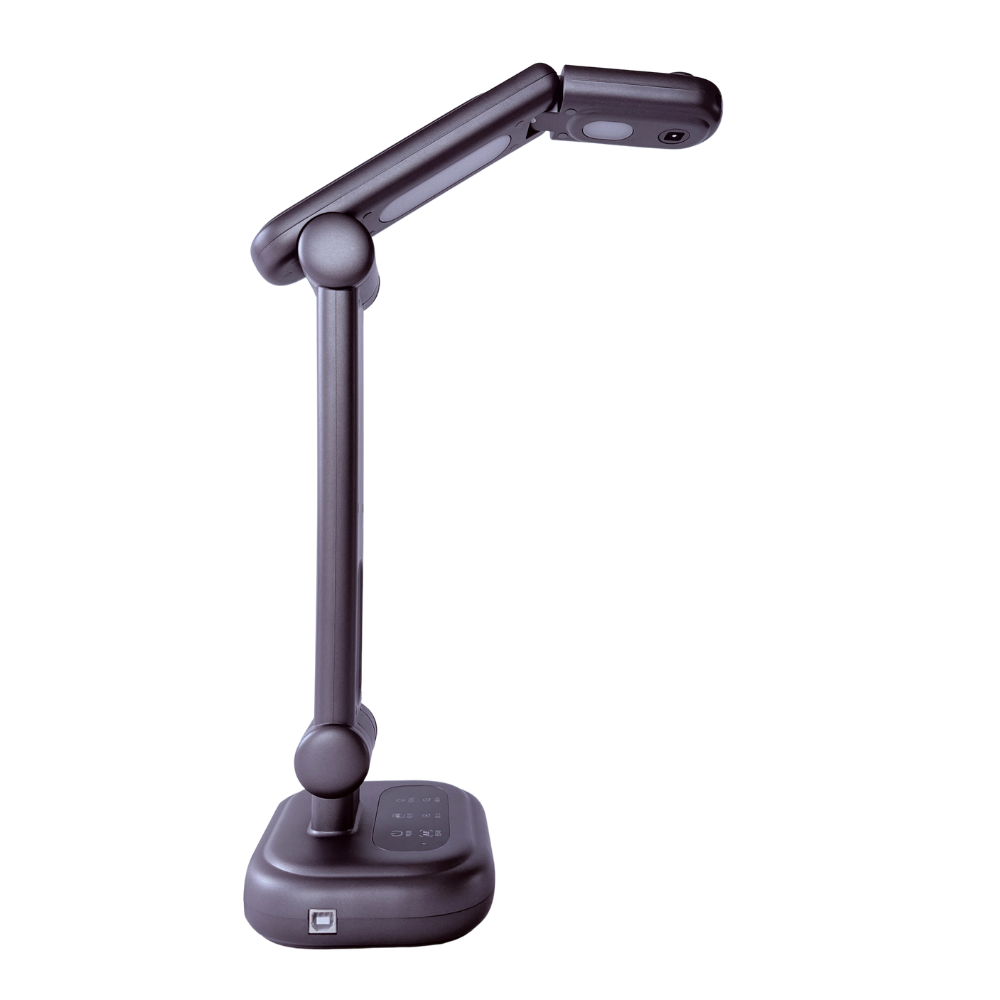

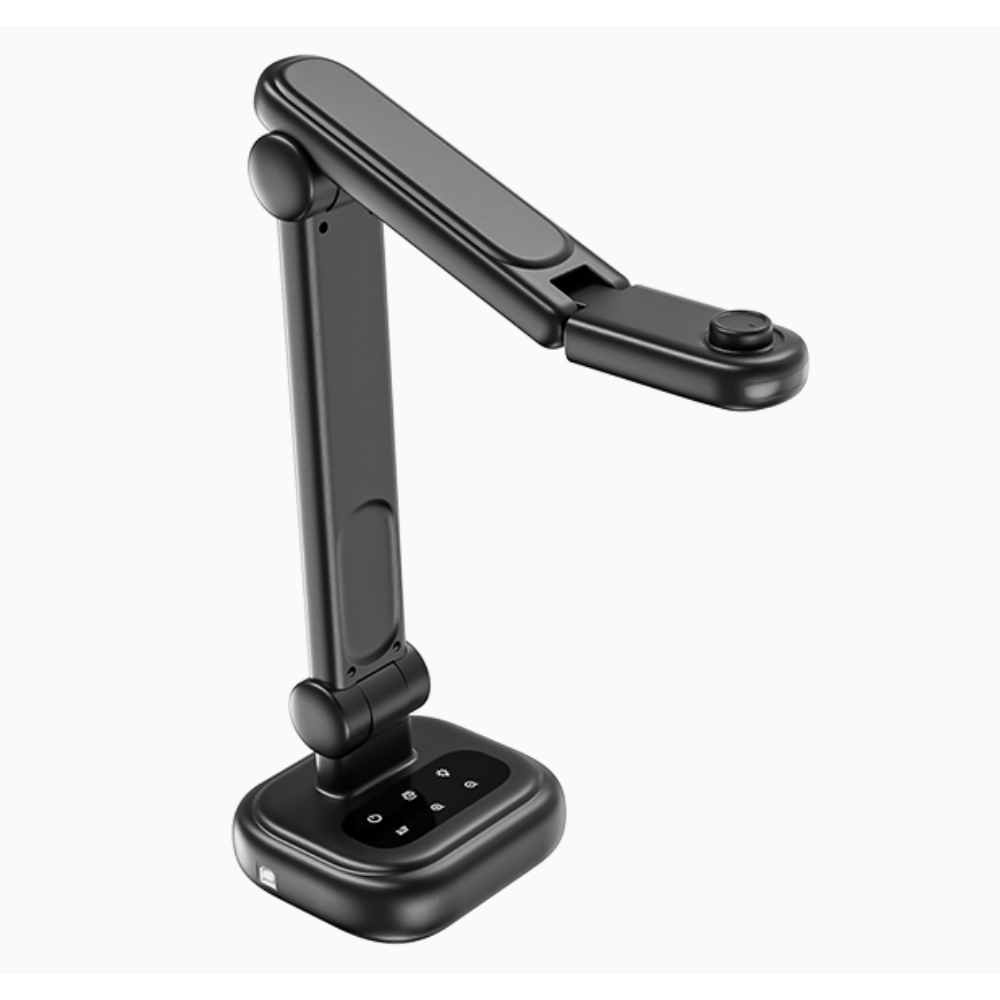

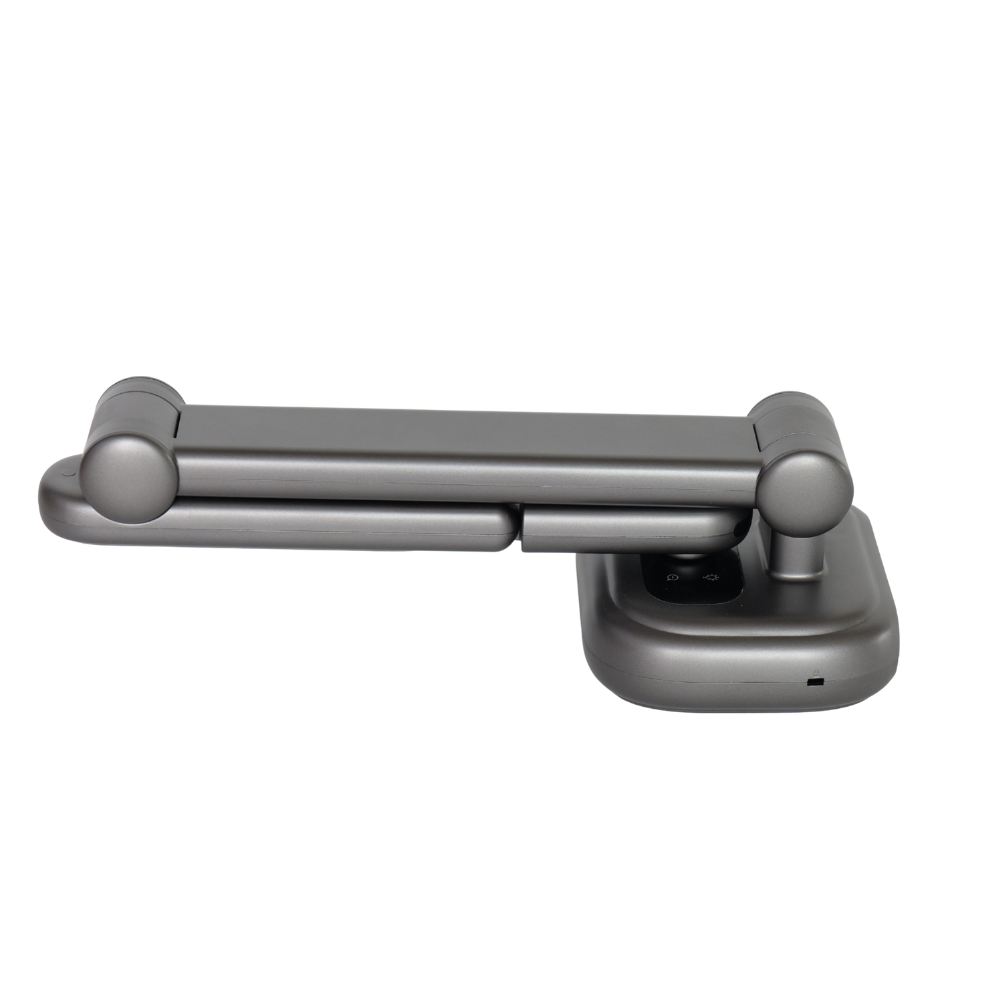

FT-F905 UHD Portable Document Camera

8MP 4K Imaging for Everyday Classroom Projection

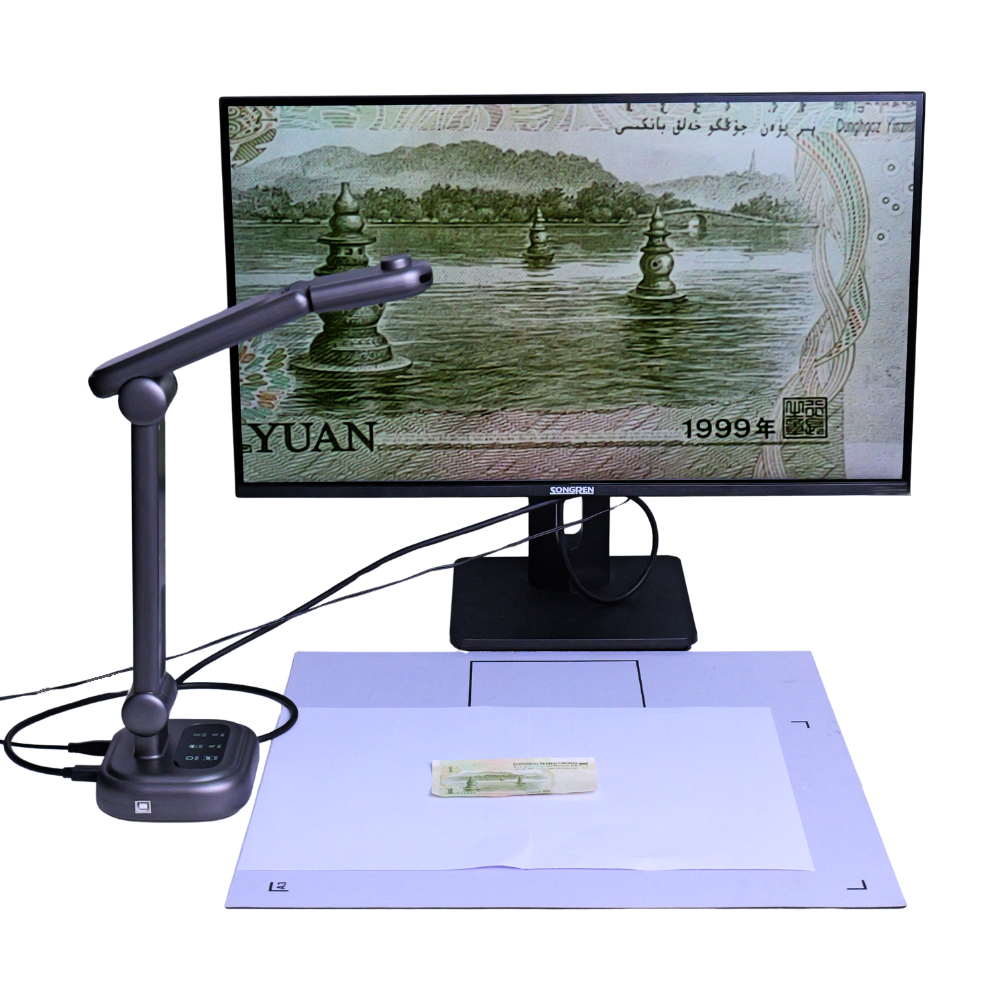

The FT-F905 is a portable A3 document camera built around an 8‑megapixel 1/2.4" CMOS sensor. It outputs up to 3840×2160@30Hz over HDMI and 1920×1080@60Hz via HDMI and VGA, providing clear, detailed images of textbooks, worksheets and small teaching aids on large classroom displays. For computer use, it supports 3840×2160@20fps and 1920×1080@30fps over USB, suitable for both local projection and screen sharing in online lessons.

A3 Shooting Area with 30x Total Zoom
Designed for teaching materials of different sizes, the FT-F905 covers A3 and smaller documents so entire exam sheets and open textbooks can be shown in one view. A 4x lossless zoom combined with 7x digital zoom delivers up to 30x total magnification, allowing teachers to move smoothly from full-page overviews to close-ups of fine text, diagrams or object details while maintaining legibility on the big screen.

Flexible Connections and Simple Controls

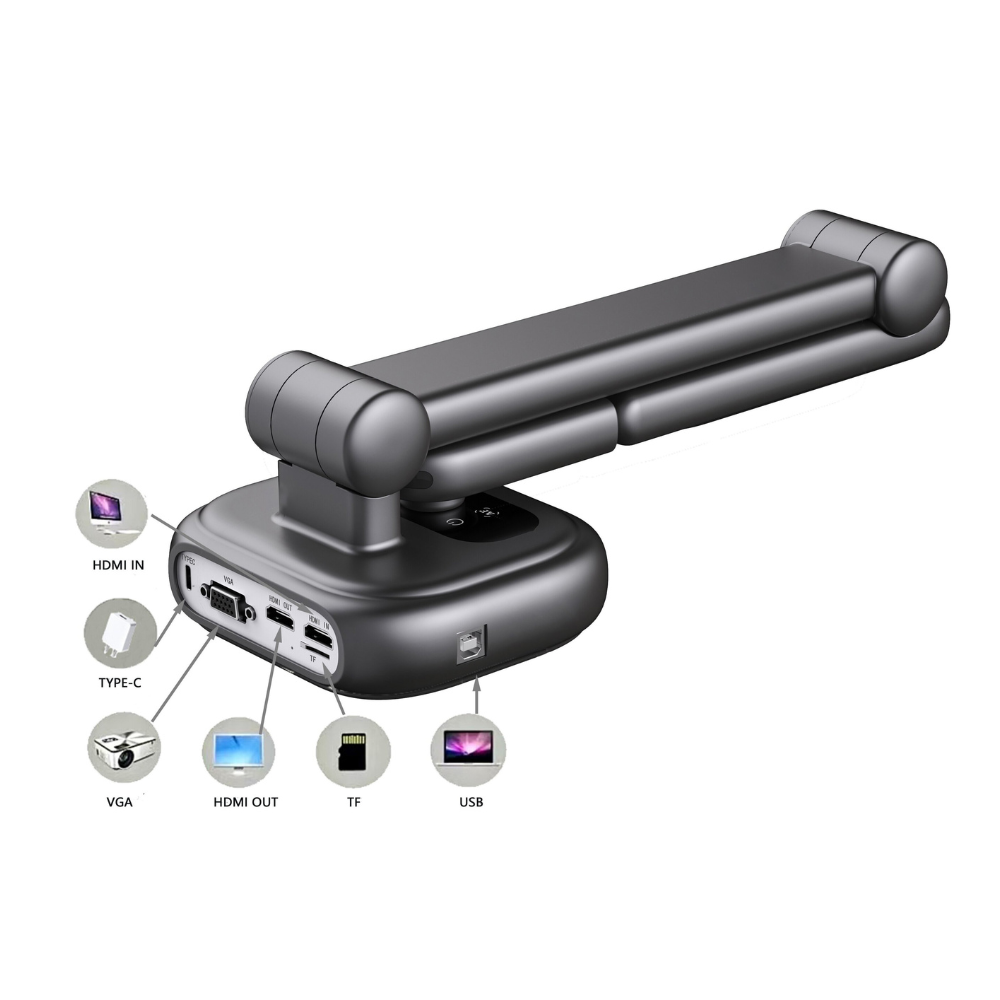

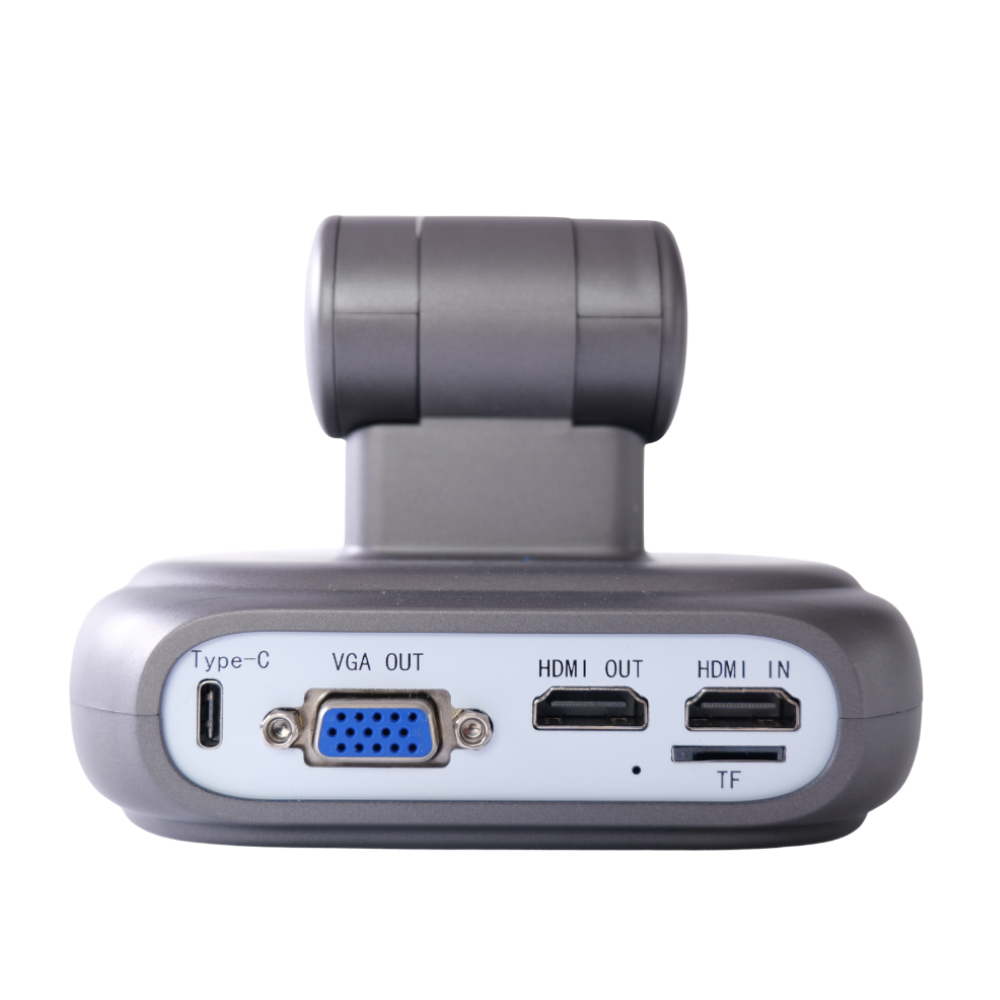

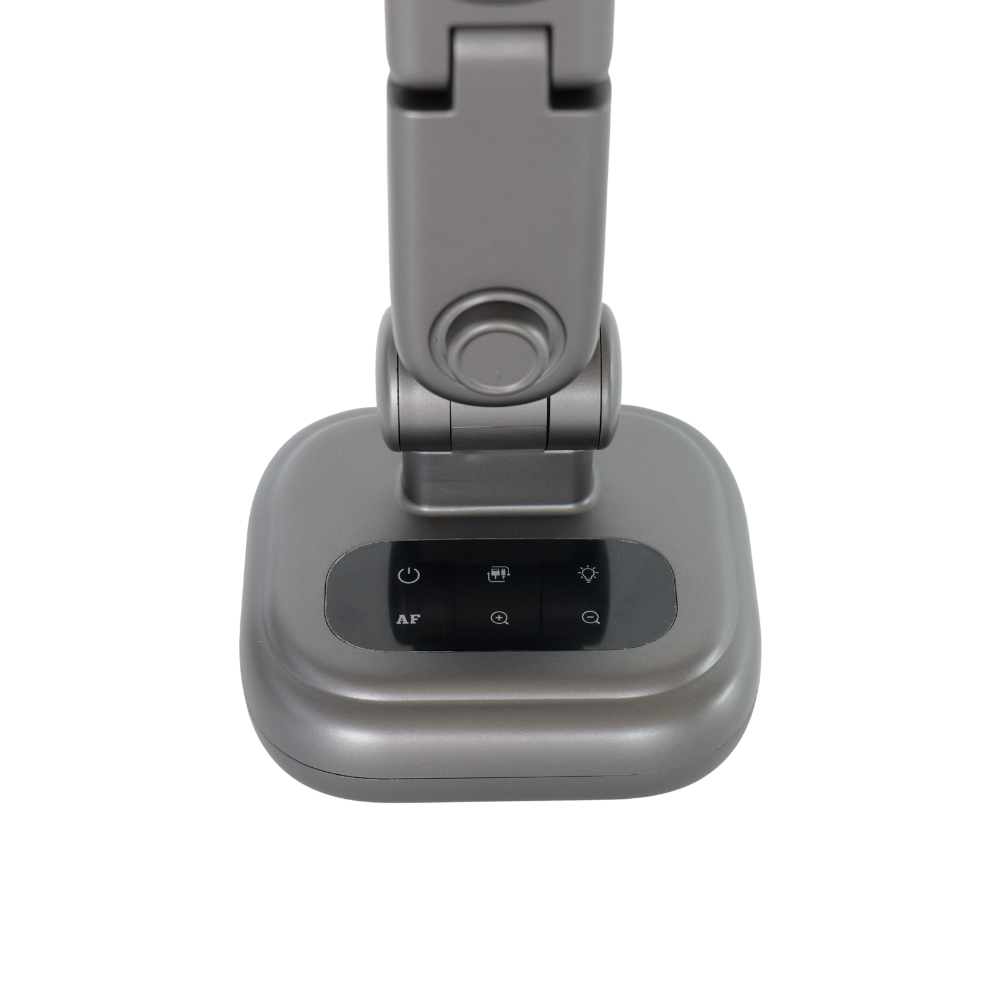

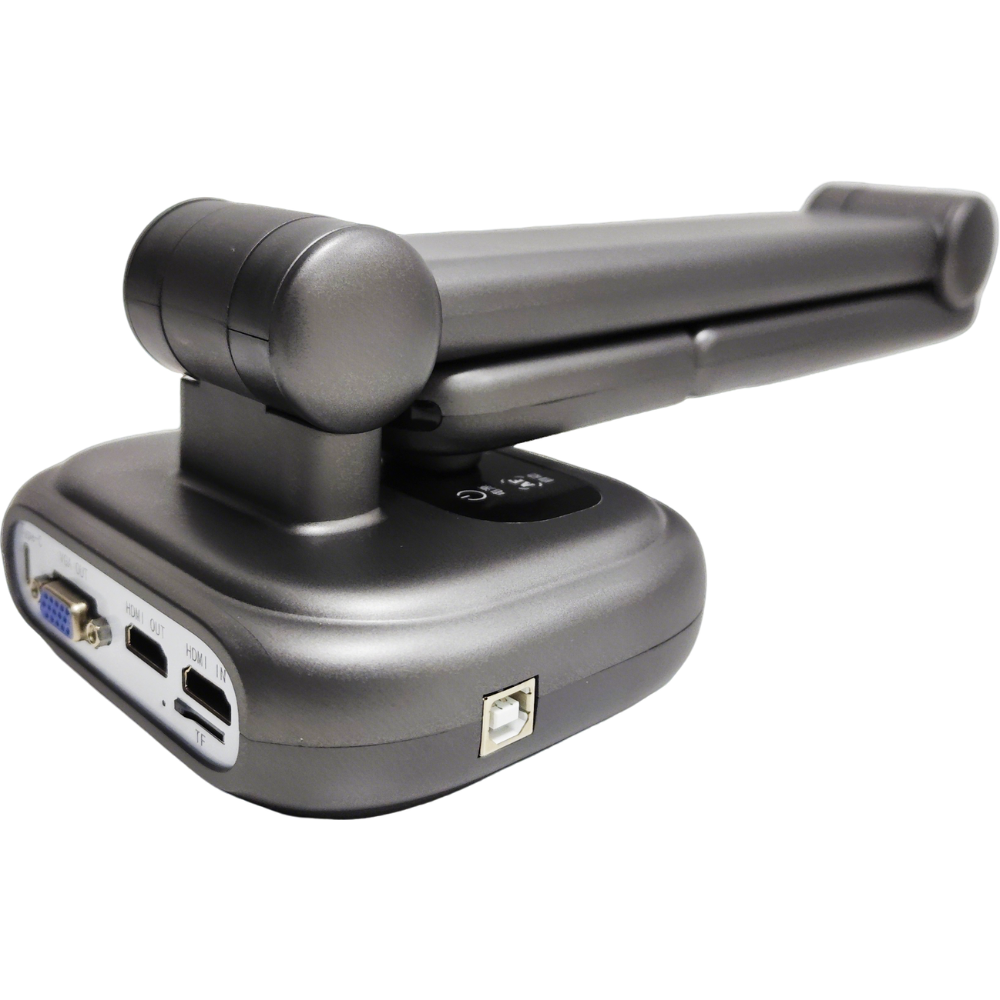

The FT-F905 includes HDMI input, HDMI output, VGA output and a USB 2.0 Type‑B (UVC) port for connection to projectors, interactive flat panels, monitors and Windows computers. Type‑C power input (5V/2A) keeps cabling straightforward. Frequently used functions such as source switching, lamp control, auto‑focus and zoom in/out are available directly on the device, with an IR remote included for convenient operation from the podium.

Adjustable Lighting and Image Settings for Different Environments
To adapt to varied classroom lighting, the FT-F905 is equipped with a three‑level dimmable LED lamp and supports automatic or manual white balance. This helps maintain accurate color and sufficient brightness when displaying printed documents, glossy pages or small 3D objects, so students can see content clearly without shadowing or glare.

USB Plug-and-Play with Visualizer Software
When connected to a Windows® 7/8/10/11 computer via USB, the FT-F905 works as a UVC‑compliant document camera with the Phantrue Visualizer software. Teachers can use Live Camera, Video, Scan and Comparison modules for real-time display, lesson recording, document scanning and side‑by‑side comparisons. All images and videos are stored on the computer, offering a straightforward workflow for preparing, delivering and archiving digital teaching materials.

FT-F905 Specification
