Compact Foldable A4 Document Camera with On-Device Controls

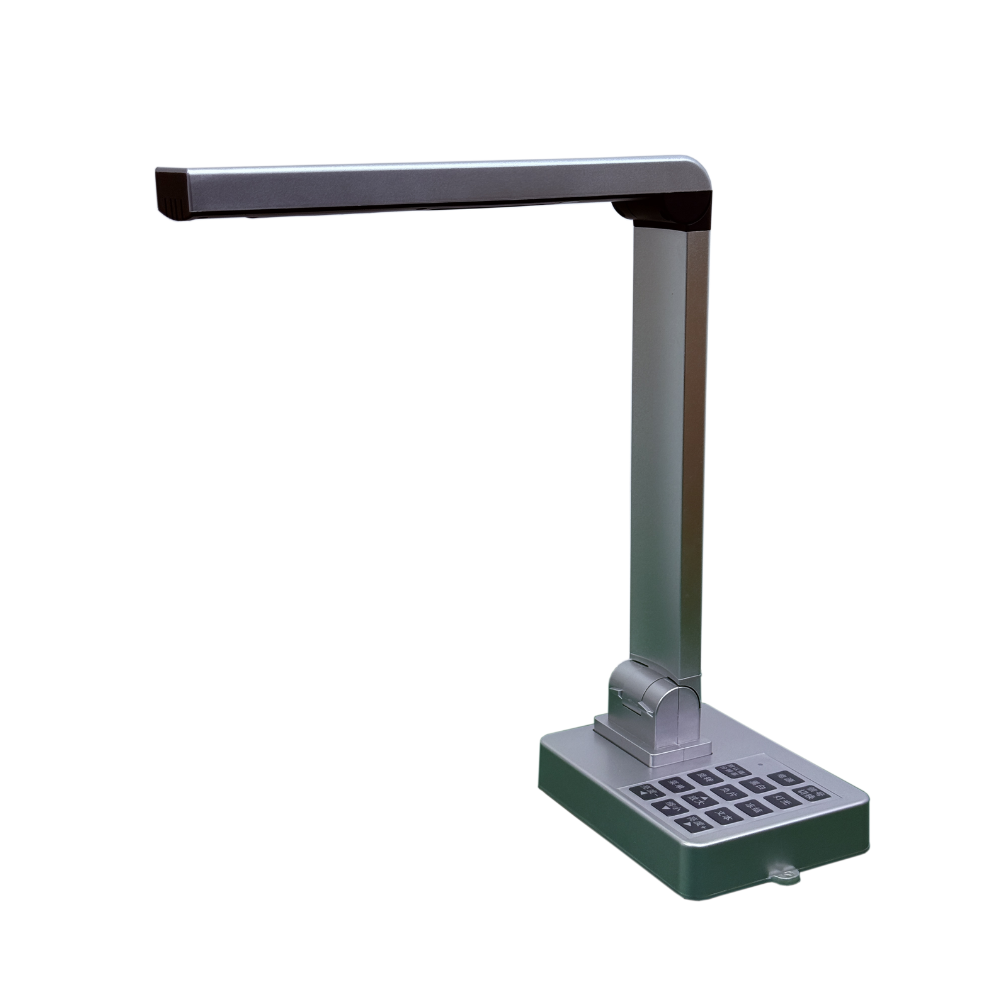

The FT‑G600HV is a portable digital document camera designed around a foldable structure that saves space on the desk and is easy to store when not in use. Optimized for A4‑size documents and smaller objects, it suits everyday tasks such as displaying worksheets, forms, printed materials and simple teaching aids on classroom or meeting room displays.

A4 Shooting Area with Fixed-Focus Design
With an A4 shooting area, the FT‑G600HV captures full pages in a single frame without stitching. Its fixed-focus lens is calibrated for typical document distances, so users can place materials on the included document pad and start presenting immediately without constant focus adjustments. This makes it practical for frequent, short presentations and shared-use environments.

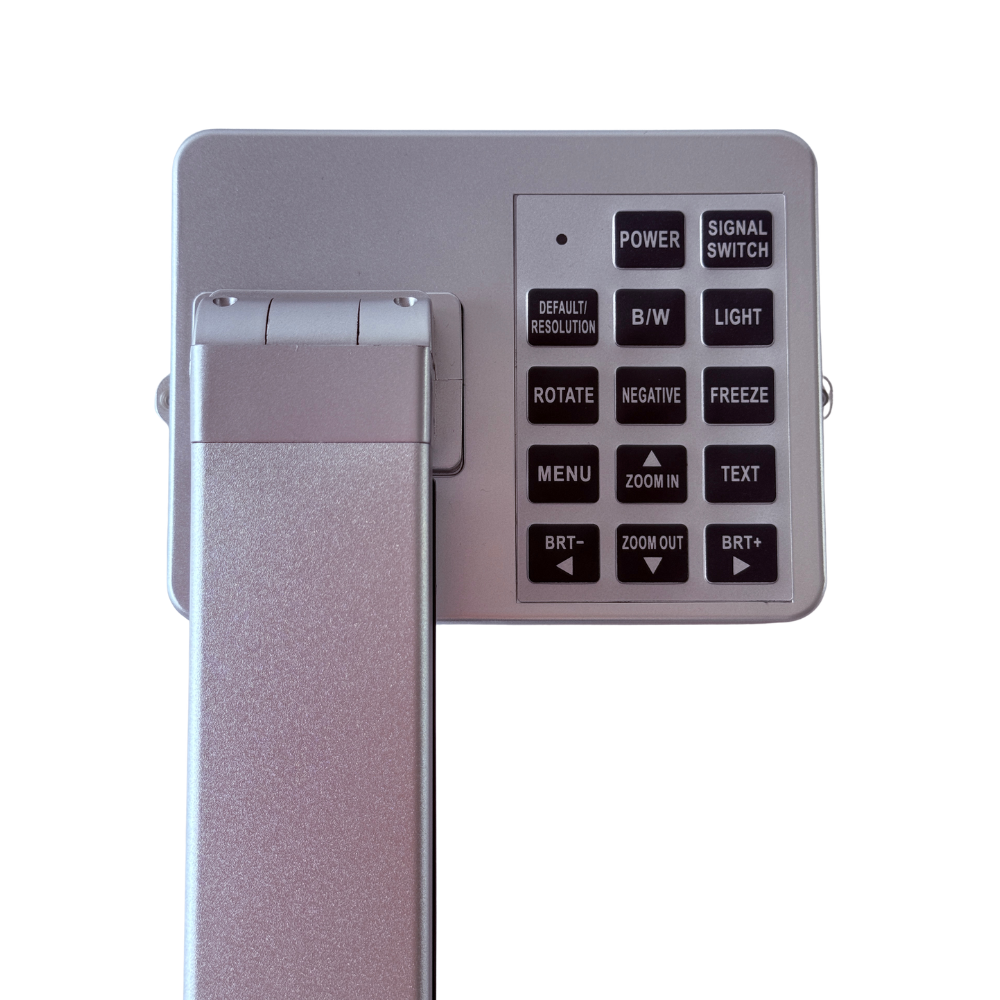

Rich Physical Button Panel, No Remote Required
Instead of relying on a remote control, the FT‑G600HV provides a full set of physical buttons directly on the base. Users can switch signals, adjust brightness, turn the lamp on or off, rotate the image, freeze the frame, change display modes (such as text or black-and-white) and control zoom levels from the front panel. This on-device operation is straightforward and reliable, especially in classrooms where remotes can be misplaced.

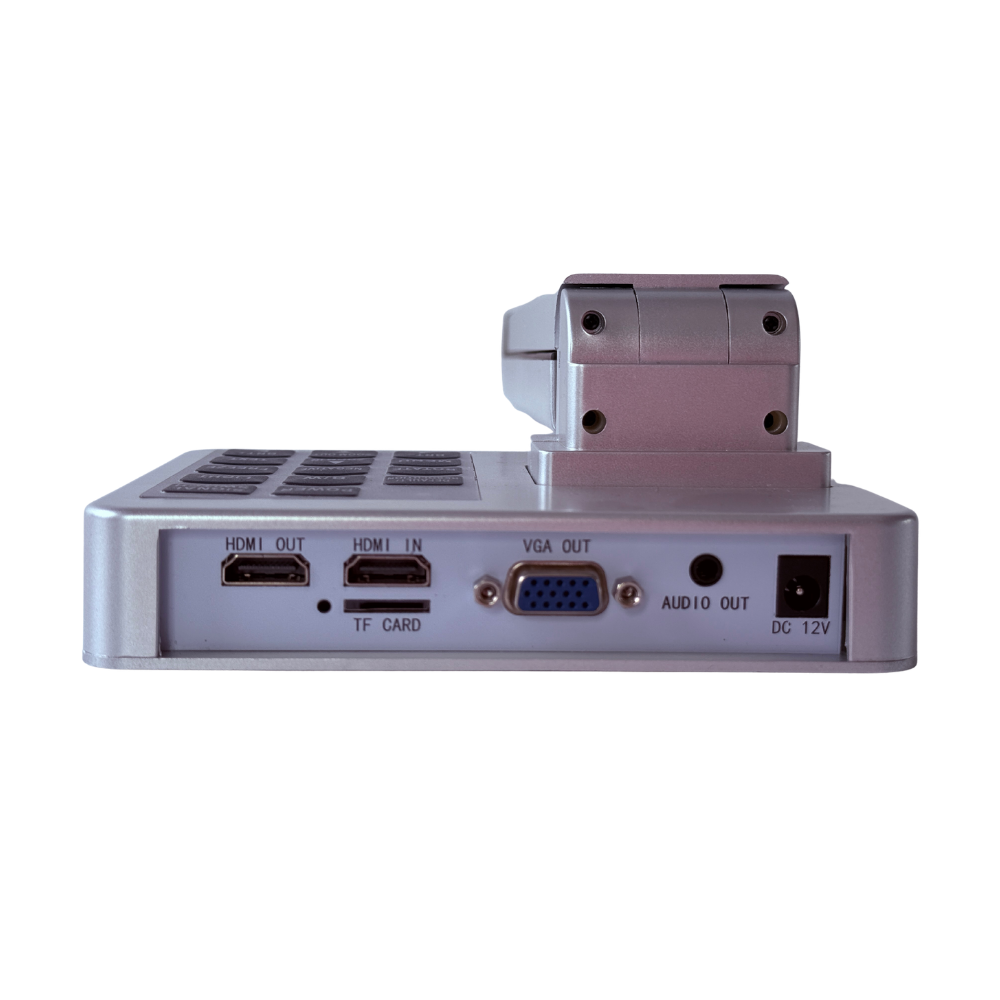

Multiple Outputs for Easy Integration

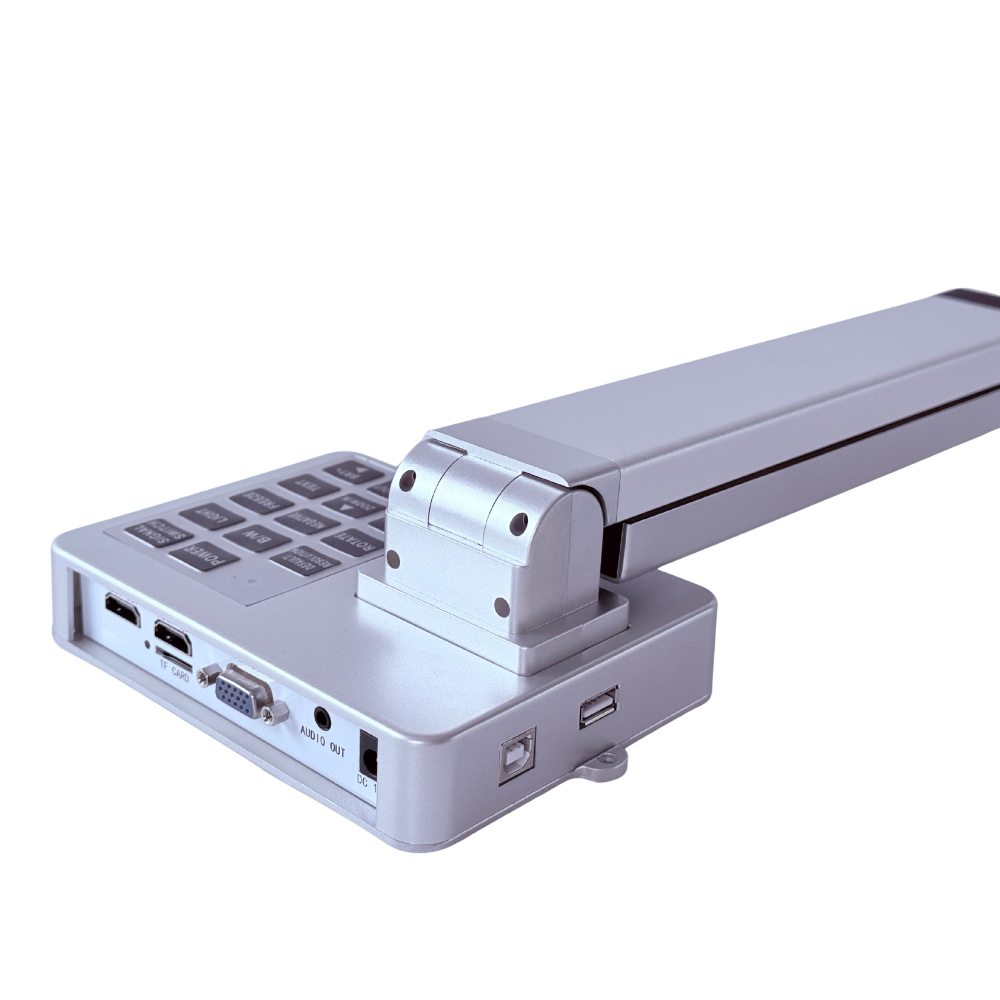

The FT‑G600HV supports HDMI and VGA outputs at up to 1920×1080@60Hz and 1024×768@60Hz, allowing quick connection to projectors, classroom TVs and interactive flat panels. A USB 2.0 Type‑B (UVC) port enables use as a USB document camera with Windows® 7/8/10/11 computers, supporting live display and content sharing in online or hybrid teaching scenarios.

USB Plug-and-Play with Visualizer Software
When connected to a computer via USB, the FT‑G600HV works with Phantrue Visualizer software for live viewing, image capture, video recording and basic document management. Captured files are stored on the computer in common formats such as JPG, BMP, PNG, TIF and PDF, making it convenient to archive, organize and share teaching and office materials.

FT-G600HV Specification

Image Sensor		1/2.8" CMOS
Total Pixels		8MP
Zoom		4x lossless zoom, 7x digital zoom, total magnification 30x
Shooting Area		A4(A3 Optional)
Focus		Fixed focus
Resolution/ Frame rate	USB	3840x2160@15fps, 1920x1080@15fps
	HDMI	3840x2160@20fps, 1920x1080@30fps,
	VGA	1024×768@30fps
Lamp		LED light with three-level dimming
White balance		Automatic
Free Software		Visualizer, supports Windows® 7, 10, 11
Operating Voltage		DC12V/1A
Input Interface		HDMI*1
Output Interface		VGA1 , HDMI1, USB2.0 B*1
Device Dimension		Folding: 150140350mm; Unfolding: 265150350mm
Expandable Storage		NA
Built-in Mic		Not Support
USB Video Stream Format		Support MJPG
Image Format		Support JPG/BMP
Image Storage		Stored on the computer via PC software (Visualizer).
Buttons Function		Power, Signal Switch, Light, Resolution, etc.
Net Weight		1.36kg

Features	via Software	via Buttons
Annotation	√	×
Snap/Recording	√	×
Playback	√	×
Split Screen	√	×
Picture in picture	×	×
Freeze	√	√
Zoom In/Out	√	√
Partial Zoom	×	×
Rotation	√	√
Mirror	×	×
Color/Black and White	√	√
Brightness+-	√	√
Text/Picture	√	√
Sharpness+-	√	×
Negative	×	√

FAQ

❓ What size documents can the FT‑G600HV display?
📄 The FT‑G600HV is designed for A4 and smaller documents. It can clearly show full A4 pages such as worksheets, forms and printed handouts without stitching.

🔍 Does the FT‑G600HV have auto focus?
🎯 No. The FT‑G600HV uses a fixed‑focus design optimized for typical document distances. Simply place the paper on the included document pad and the content will appear clear on the screen without frequent focus adjustment.

🎛 Why are there so many buttons on the base? Is a remote control included?
🖐 The FT‑G600HV is operated entirely from the control panel on the base. You can switch signals, adjust brightness, turn the lamp on/off, rotate, freeze and zoom directly on the device. A separate remote control is not included, which helps avoid loss or confusion in shared classrooms.

💻 Can I use the FT‑G600HV with a computer for online teaching?
🌐 Yes. The FT‑G600HV has a USB 2.0 Type‑B (UVC) port and works with Windows® 7/8/10/11. When connected via USB and used with the Phantrue Visualizer software, it can serve as a USB document camera for live display, lesson recording and content sharing in online or hybrid classes.

💡 How does the FT‑G600HV perform in low‑light classrooms?
✨ The FT‑G600HV is equipped with a three‑level dimmable LED lamp and automatic white balance. You can increase the brightness when the room is dim so that text and images on the paper remain clear and easy to read on the big screen.
