B36 Specification
| Sensor | 2MP,1/1.28" Sony CMOS |
| Effective Pixels | 1920*1080 |
| Bit | 12bit |
| Pixel Size(μm) | 2.9μm*2.9μm |
| FPS | 60fps@1920*1080 |
| Sharpness | Above 900TV line |
| Scan mode | Progressive scan |
| Shutter Type | Rolling shutter |
| SNR | 55dB |
| Sensitivity | 2.0 V/lux-sec (550nm) |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |

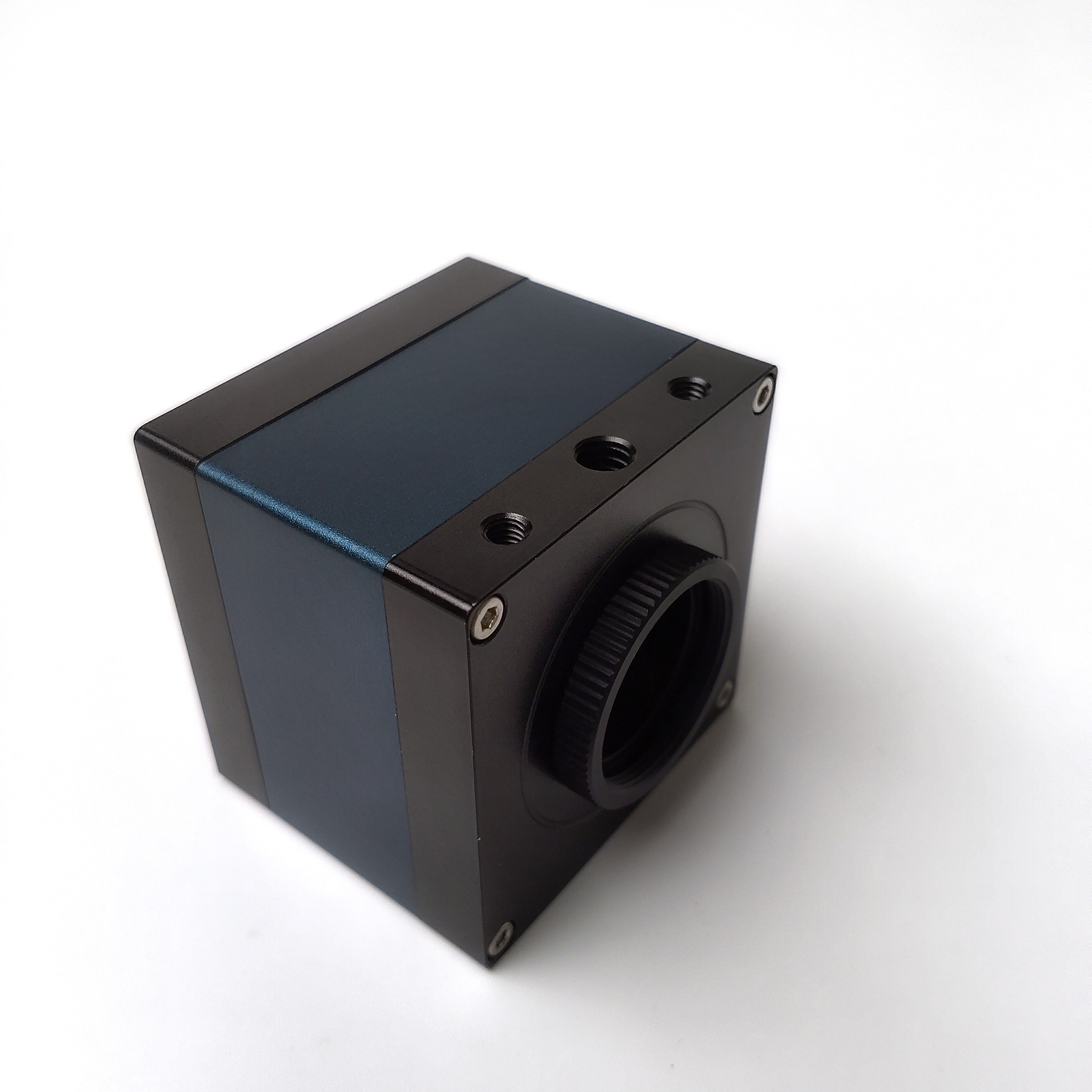

| Lens Mount | C/CS |

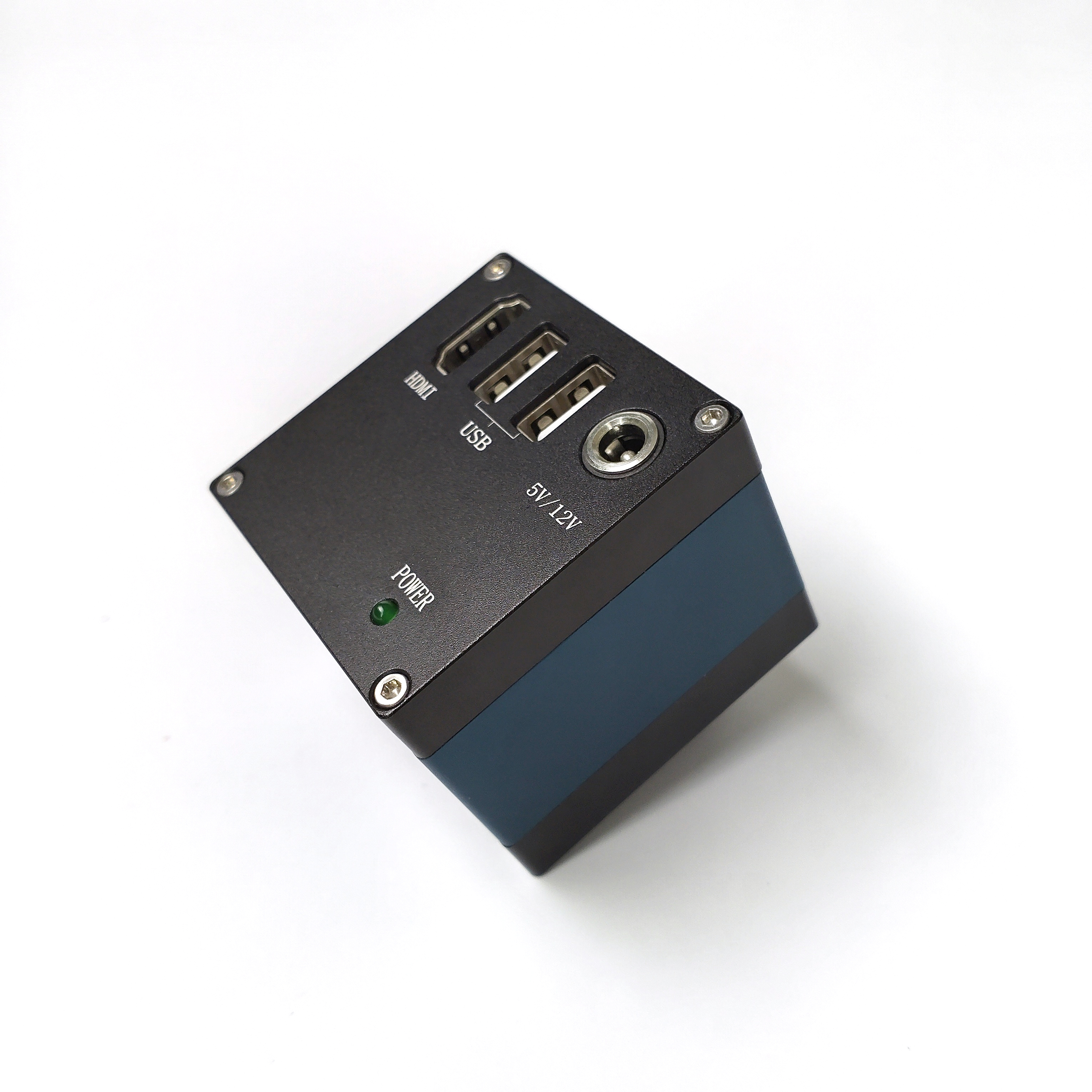

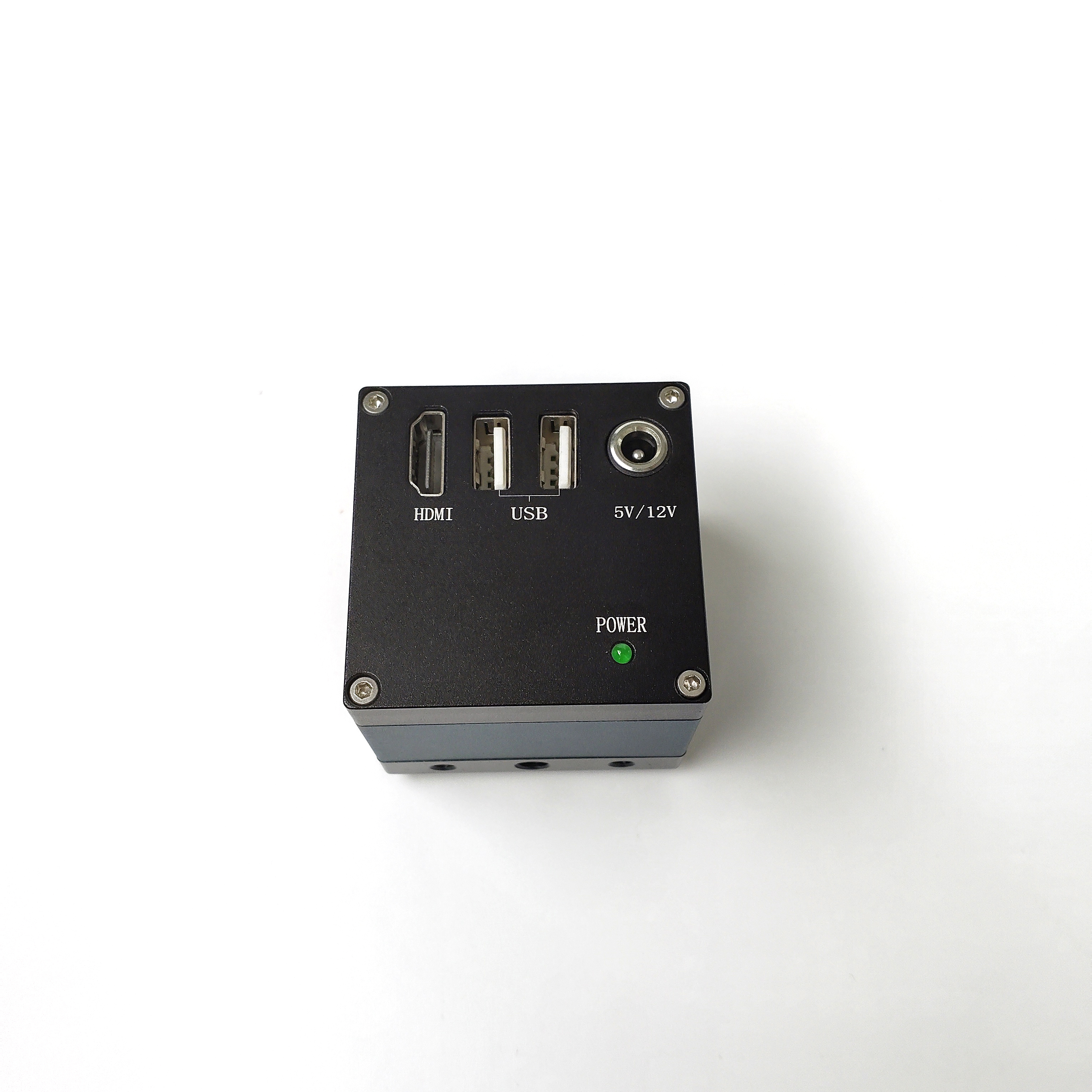

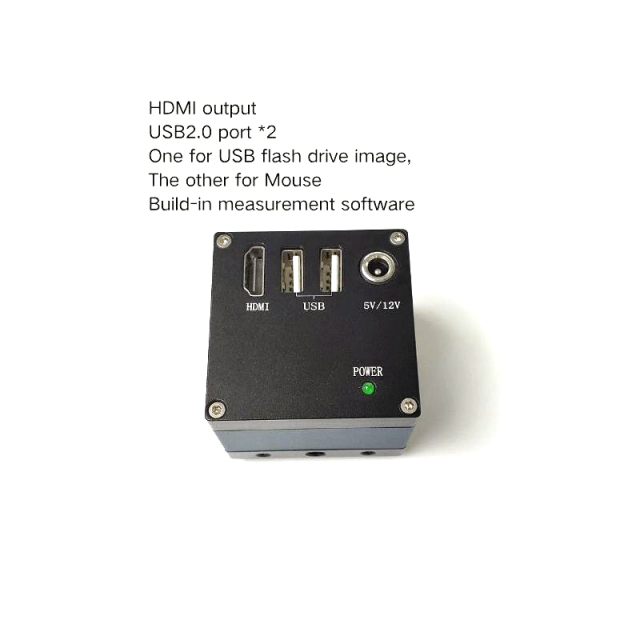

| Interface | HDMI + USB2.0*2 |
| Image Capture | U-disk memory |
| Output Resolution | 1920*1080 60Hz |
| USB function | USB mouse and U-disk (≤32G) |
| Power Supply | DC 5V/1A Adapter |

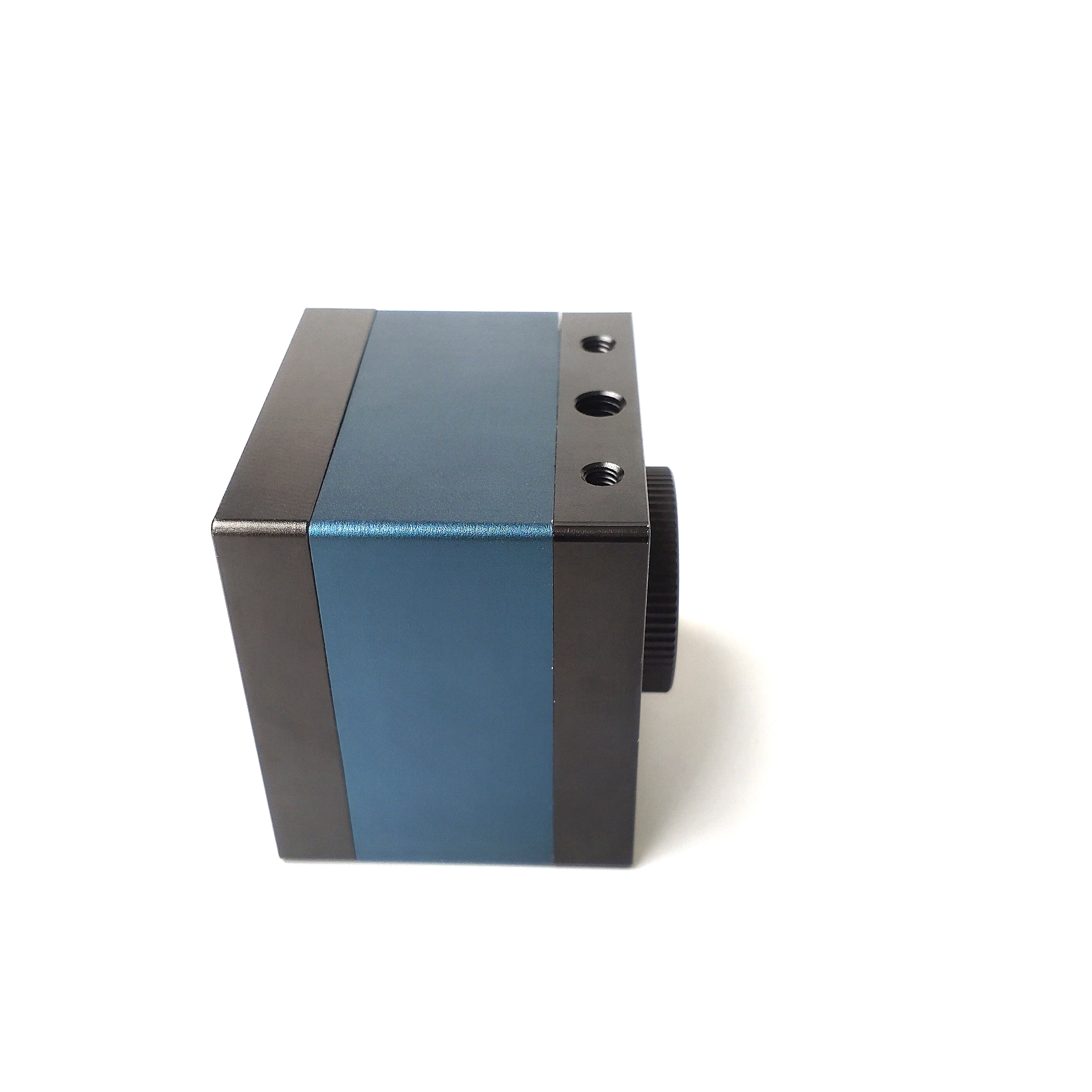

| Size | 53*53*45mm |

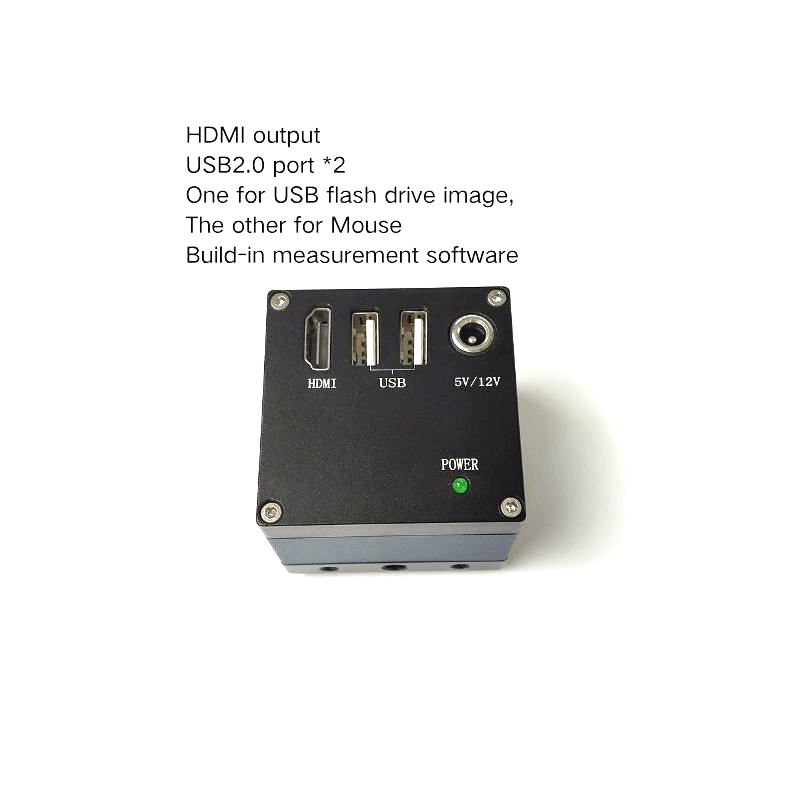

| Functions | 1. Two USB ports((one USB mouse , one USB for U-disk memory use ). 2. Save the images to USB drive, real time preview images or videos on USB drive or TF card. 3. Cross:1-12 cross group,color optional,and line is adjustable in width. 4. Freeze: Split screen display in two or four sections. 5. Scale ruler: The number of pixels in each interval can be adjusted arbitrarily. 6. Measurement functions: The distance between two points, rectangle, circle, angle etc. |
Product Advantages
Structural and Design Attributes Enhancing System Compatibility

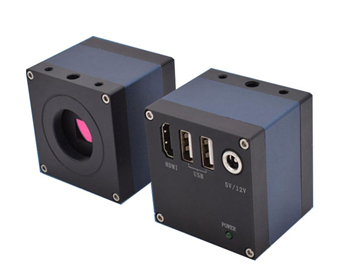

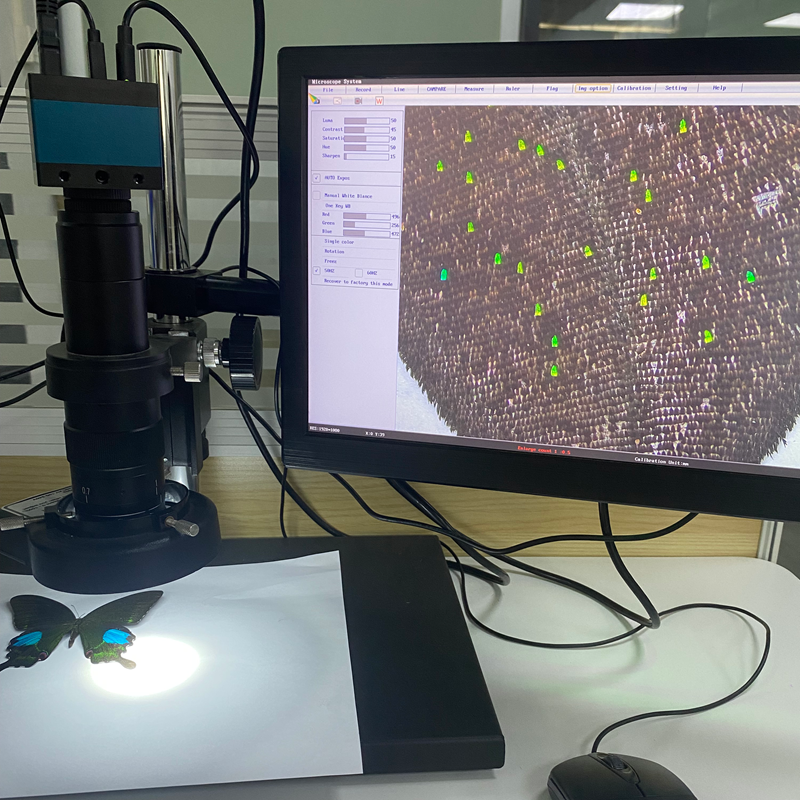

Designed for seamless integration into a wide range of microscopy and inspection setups, the camera combines HDMI output and dual USB interfaces in a compact, standalone architecture. The HDMI connection enables direct display on monitors without requiring a computer, while the USB storage function allows images to be saved and reviewed instantly. This integrated design reduces system complexity, improves workspace organization, and provides a flexible solution for laboratories, production lines, repair stations, and educational environments.
Enhanced Performance and Operational Efficiencies
Featuring Full HD 1920 × 1080 resolution and smooth 60FPS imaging, the camera delivers clear, responsive real-time observation for precision inspection tasks. Progressive scan technology ensures stable and distortion-free image capture, while automatic and manual white balance maintain accurate color reproduction under varying lighting conditions. Built-in measurement tools, Freeze Frame functionality, and Split-Screen Comparison help users analyze details more efficiently, verify inspection results, and streamline workflow, ultimately improving productivity and reducing inspection time.
We provide versatile connectivity with HDMI output for direct display, USB 2.0 ports for PC connection, and a Gigabit Ethernet interface for networked environments. This allows flexible integration for multiple use cases with our digital microscope camera.

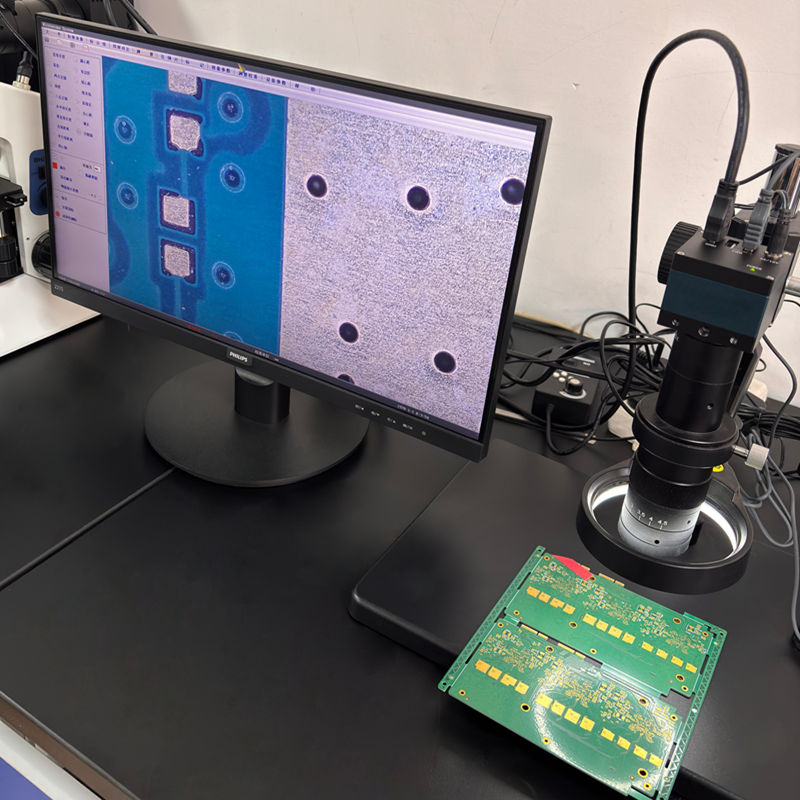

Yes, our microscope camera includes built-in measurement functions through integrated software. You can analyze distances, angles, and shapes directly on captured images, ensuring accuracy for PCB inspection or industrial quality control tasks.
We understand the needs of industrial buyers and provide support for system integration, including Ethernet networking compatibility. Contact us to discuss custom production plans or integration of our usb digital microscope camera into your workflow.
We offer comprehensive after-sales service covering technical support and maintenance guidance. Our team is ready to assist with setup, troubleshooting, and software updates to ensure your microscope camera manufacturers investment performs reliably over time.
