B35 Specification
| Sensor | 2MP,1/2.8" Sony CMOS |
| Effective Pixels | 1920*1080 |
| Bit | 12bit |
| Pixel Size(μm) | 2.9μm*2.9μm |
| FPS | 60fps@1920*1080 |
| Scan mode | Progressive scan |
| Shutter Type | Rolling shutter |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |

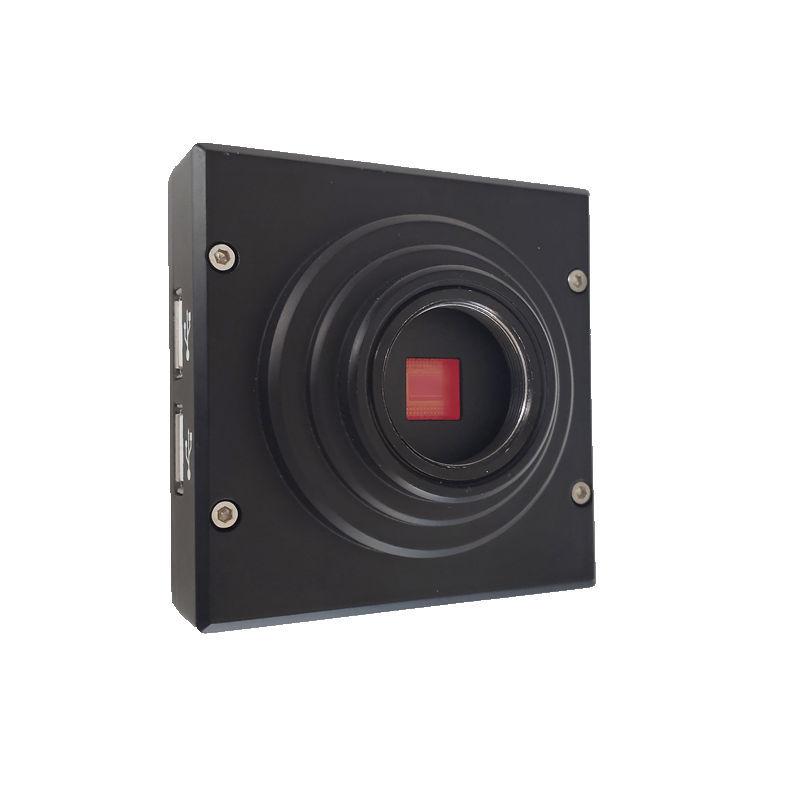

| Lens Mount | C/CS |

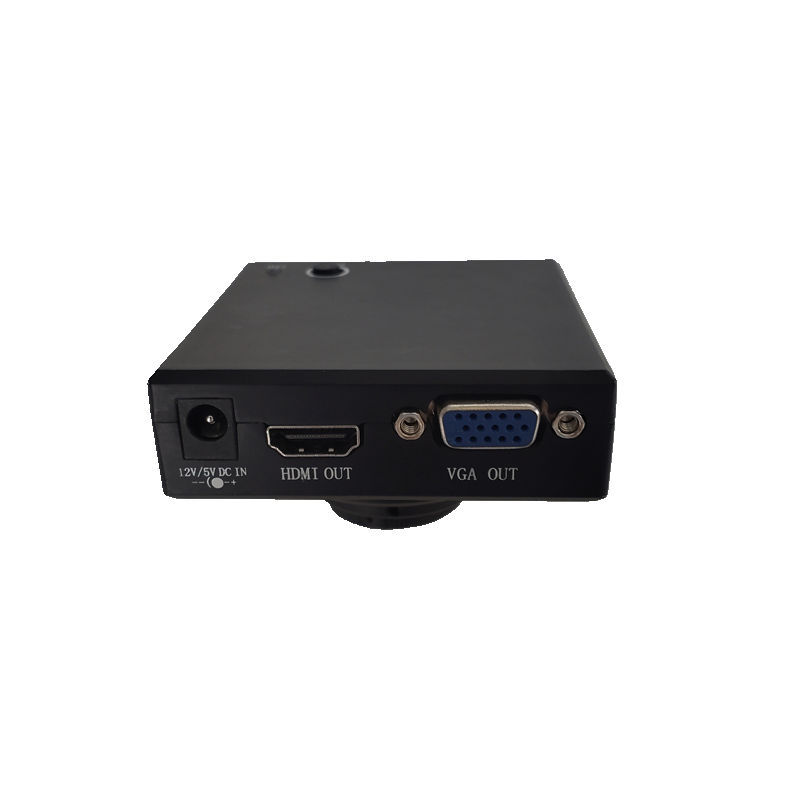

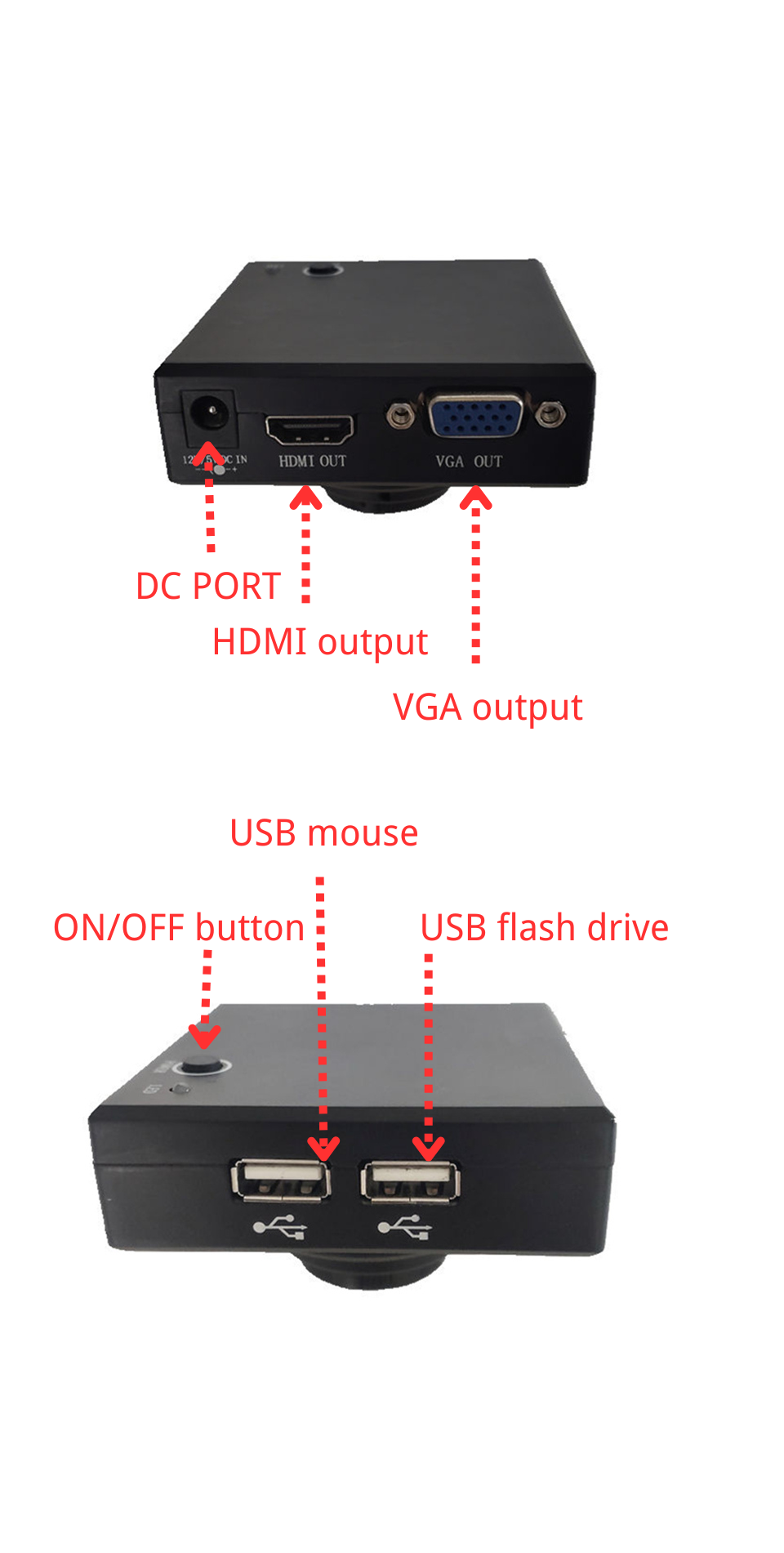

| Interface | HDMI + USB2.0*2 +VGA |
| Image Capture | U-disk memory (≤32G) |
| Output Resolution | 1920*1080 |
| USB function | Mouse and U-disk |
| Power Supply | DC 12V/1A Adapter |

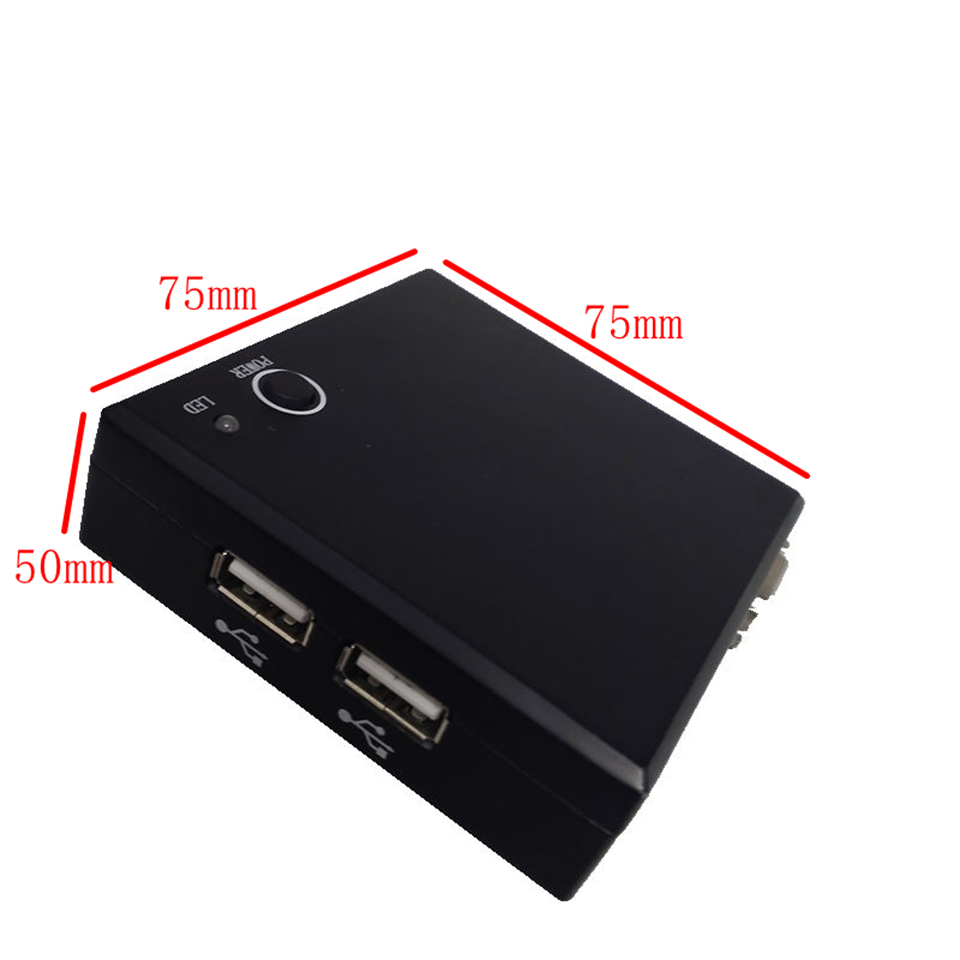

| Size | 75*75*50mm |

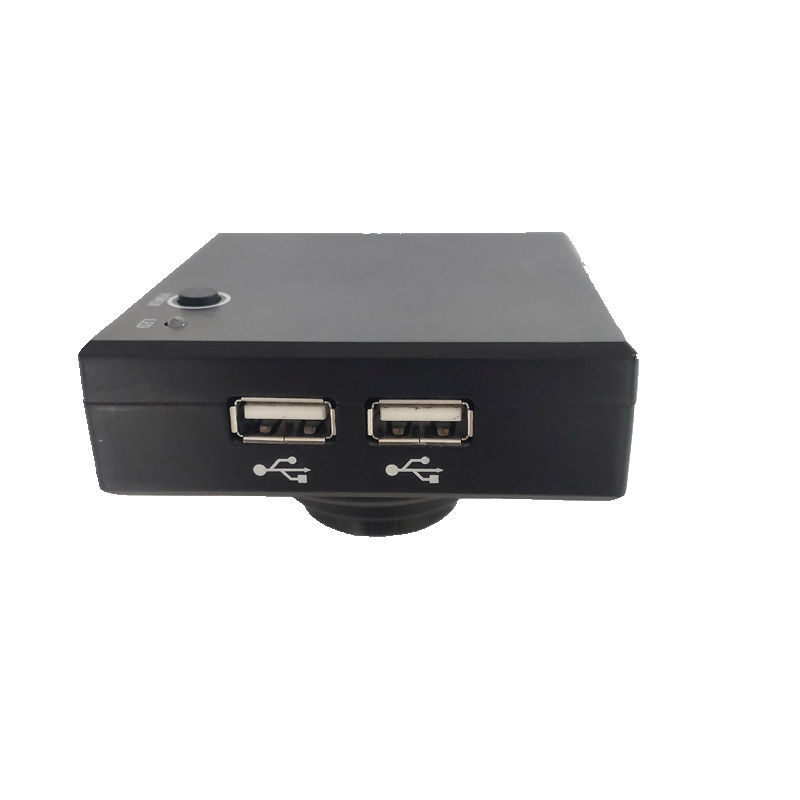

| Functions | 1. Two USB ports((one USB mouse , one USB for U-disk memory use). 2. Save the images to USB drive, real time preview images or videos . 3. Cross:1-12 cross group,color optional,and line is adjustable in width. 4. Freeze: Split screen display in two or four sections. 5. Scale ruler: The number of pixels in each interval can be adjusted arbitrarily. 6. Measurement functions: The distance between two points, rectangle, circle, angle etc. |
| Software image capture |  |
Product Advantages
Structural and Design Attributes Enhancing System Compatibility
The camera integrates HDMI display output, USB storage functionality, image playback, shortcut capture controls, and customizable crosshair overlays into a compact standalone system. Its simple plug-and-play architecture enables easy integration with microscopes and monitors, making it suitable for industrial, laboratory, repair, and educational environments.
Enhanced Performance and Operational Efficiencies
Featuring Full HD 1920 × 1080 resolution, smooth 60FPS imaging, and progressive scan technology, the camera delivers reliable real-time visualization with excellent detail and stability. Auto and manual white balance ensure accurate color reproduction, while direct USB storage, one-touch photo capture, and image playback functions streamline documentation and inspection workflows. The 12 adjustable crosshair groups further improve positioning accuracy and operational efficiency during precision observation tasks.

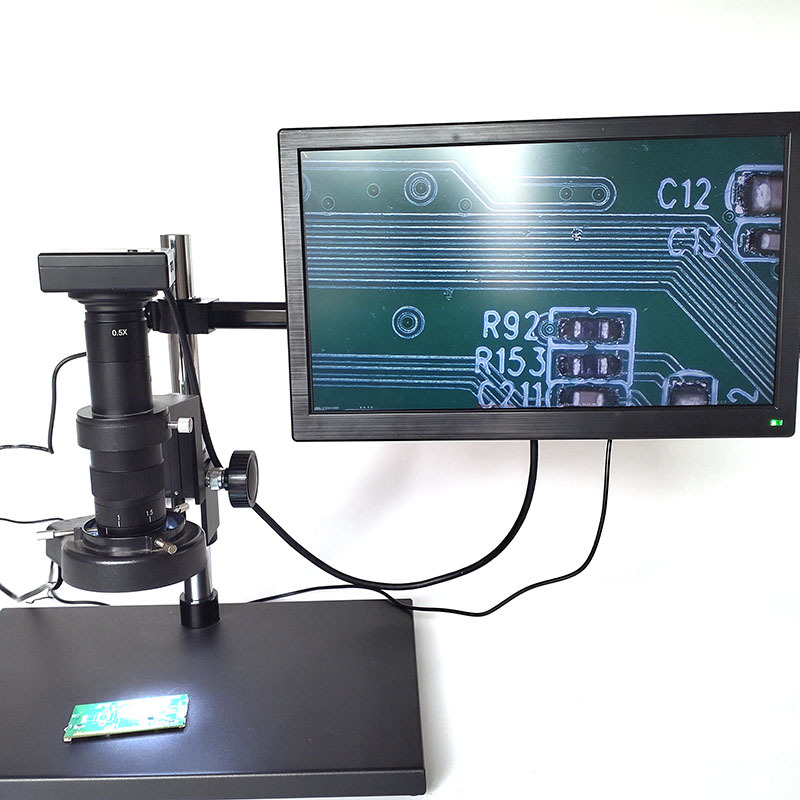

Yes. The camera delivers 1920*1080 resolution, allowing users to clearly observe PCB traces, solder joints, IC pins, and electronic components. It is an ideal solution for electronics manufacturing, circuit board inspection, rework stations, and precision assembly tasks.
Yes. When used with compatible software, the camera supports dimensional measurement, angle measurement, area calculation, and annotation functions. These tools are useful for quality inspection, engineering analysis, and scientific research.
Yes. The camera delivers smooth real-time image transmission, allowing users to observe samples instantly without noticeable delay. This is particularly important for inspection, repair, and production-line applications.
We offer comprehensive after-sales service covering technical support and maintenance guidance. Our team is ready to assist with setup, troubleshooting, and software updates to ensure your microscope camera manufacturers investment performs reliably over time.
