B33 Specification
| Sensor | 8MP,1/2.8" CMOS |
| Effective Pixels | 3840*2160 |
| Bit | 12bit |
| Pixel Size(μm) | 1.45μm*1.45μm |
| FPS | 30fps@3840*2160 |
| Scan mode | Progressive scan |
| Shutter Type | Electronic shutter |
| Dynamic Range | >90 dB |
| SNR | 55dB |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |

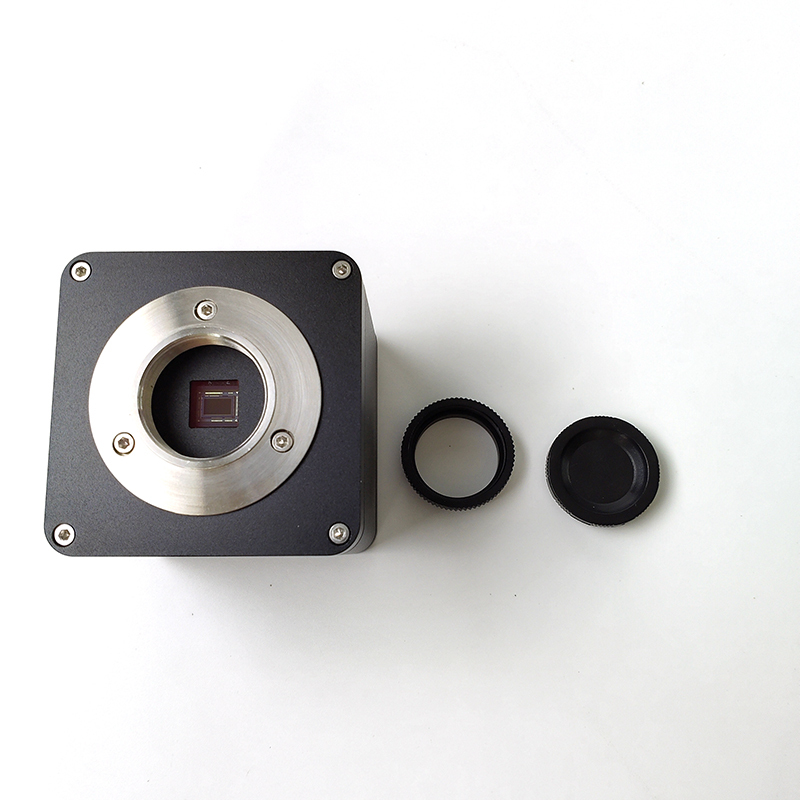

| Lens Mount | C/CS |

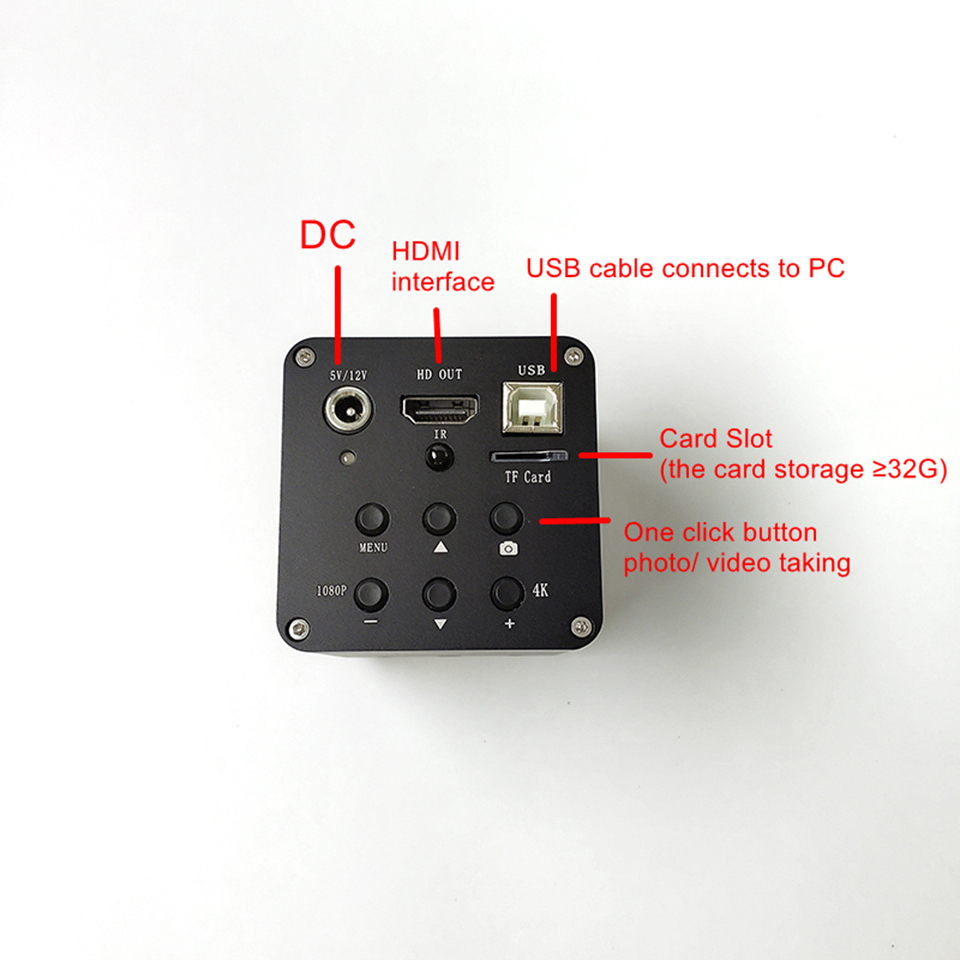

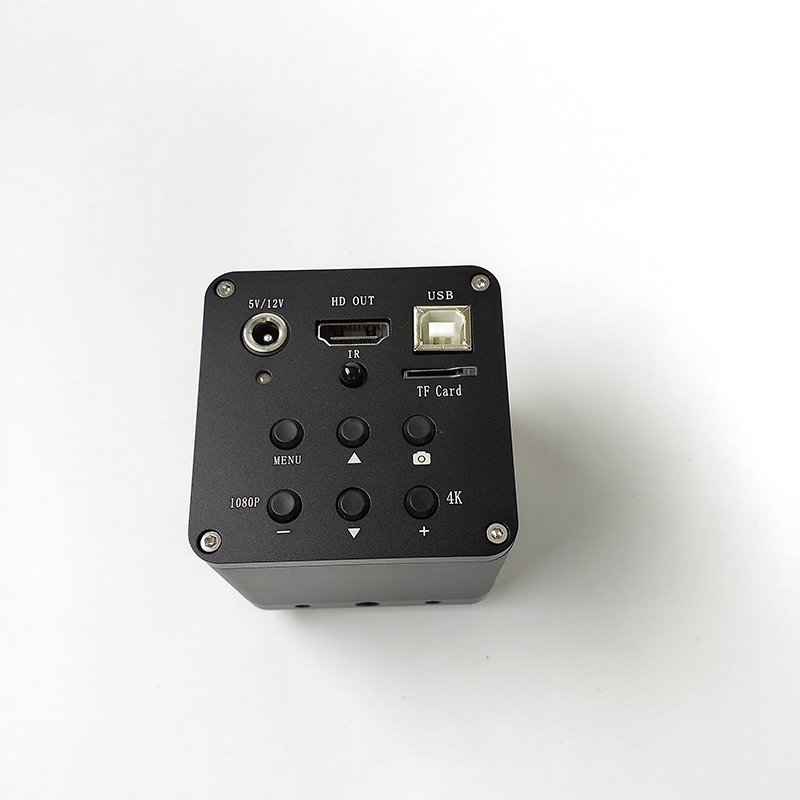

| Interface | HDMI + USB2.0 |
| Image Capture | TF Card |
| Output Resolution | HDMI:1920*1080; USB2.0(UVC): 3840*2160 / 1920*1080 |
| USB function | Connects to PC as UVC camera |

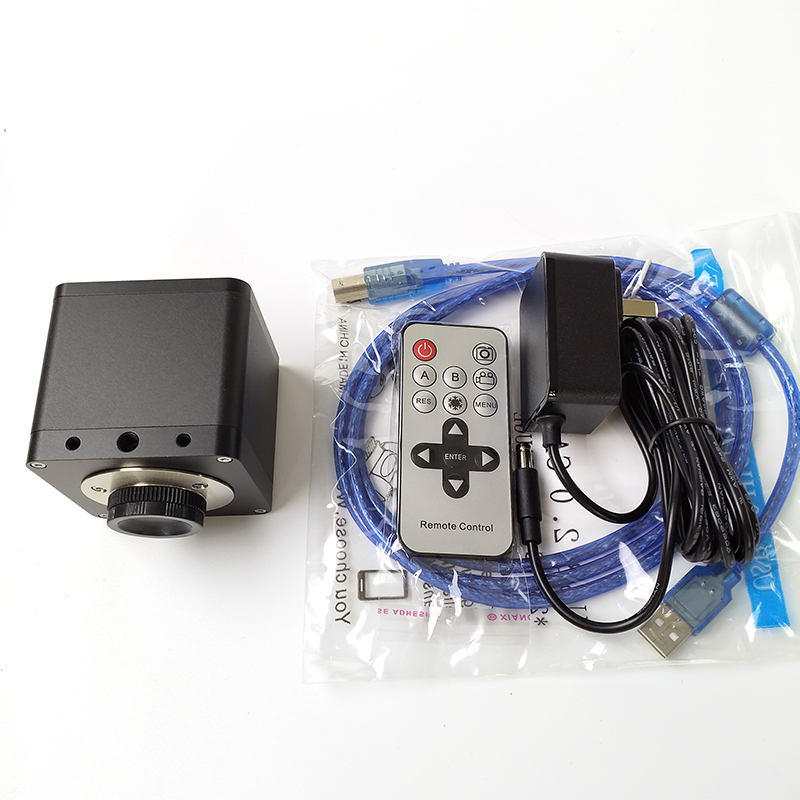

| Remote Control | Yes |
| Storage | TF card |
| Power Supply | DC 12V/1A Adapter |

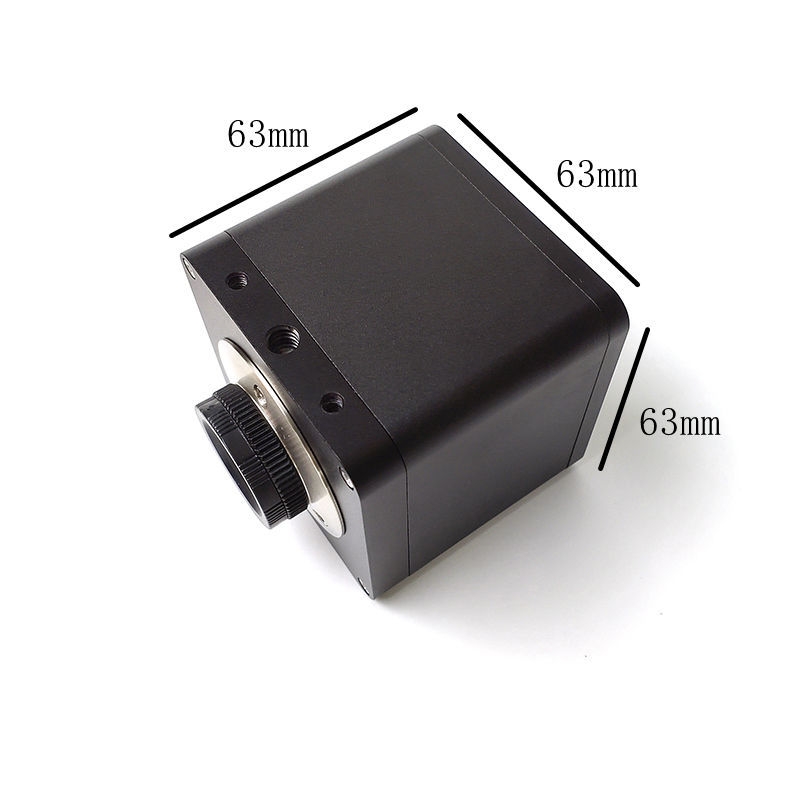

| Size | 63*63*63mm |
| Functions | 1: 4K and 1080P resolution one button change 2: USB 2.0 port can be connect to PC as for UVC camera 3: TF card storage, image/video capture 4: 8 groups of crosshairs |
Product Advantages
Structural and Modular Design Innovation
The camera combines HDMI display output, USB UVC connectivity, and TF card storage within a compact and versatile design. This multi-functional architecture allows seamless integration into standalone inspection stations, laboratory systems, educational setups, and computer-based imaging environments. Its driver-free UVC capability further enhances compatibility with a wide range of software and operating systems.
Operational Excellence and User-Centric Performance
Featuring 4K UHD resolution, progressive scan technology, and smooth 30FPS imaging, the camera delivers detailed and reliable real-time visualization. Automatic and manual white balance ensure accurate color reproduction, while TF card storage and on-screen playback simplify image management. The customizable eight-group crosshair system improves positioning accuracy and workflow efficiency, helping users perform inspections, documentation, and analysis with greater precision and convenience.
Yes, our microscope camera supports direct image and video saving to a USB flash drive via its USB 2.0 interface. This standalone capability means you can operate and record without needing a PC, enhancing flexibility during inspections or research.
We employ the 1/2.8" Sony CMOS sensor to provide sharp 2MP images at 1080P resolution and 60fps. This sensor ensures high sensitivity and excellent dynamic range, delivering clear and consistent visuals critical for precision work in industries requiring a hdmi microscope camera.
We focus on versatile designs like the HDMI USB microscope camera with adjustable exposure and white balance modes. While we provide standard cameras with proven reliability, please contact us to discuss your custom requirements for tailored imaging solutions.
We provide detailed user manuals and technical support to ensure smooth installation and operation. Our team is available to assist with setup and troubleshooting to maintain optimal camera performance across your inspection or research operations.
