B36 Specification
| Sensor | 8MP,1/1.8" Sony CMOS |
| Effective Pixels | 3840*2160 |
| Bit | 12bit |
| Pixel Size(μm) | 2.0μm*2.0μm |
| FPS | 60fps@3840*2160 |
| Sharpness | Above 1500TV line |
| Scan mode | Progressive scan |
| Shutter Type | Rolling shutter |
| SNR | 55dB |
| Sensitivity | 2.0 V/lux-sec (550nm) |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |
| Lens Mount | C/CS |

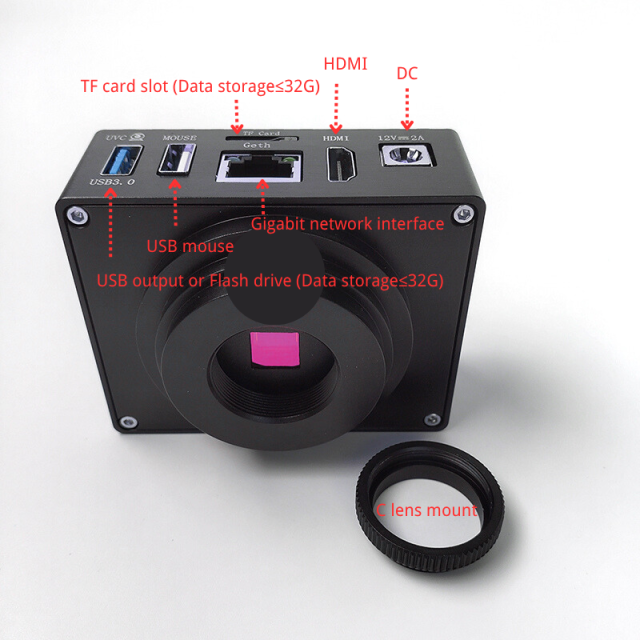

| Interface | HDMI + USB2.0*2 + Gigabit |
| Image Capture | U-disk memory, TF card |
| Output Resolution | 3840*2160 60Hz（ Default ） 1920*1080 60Hz |
| USB function | UVC camera or U-disk |
| Power Supply | DC 12V/2A Adapter |

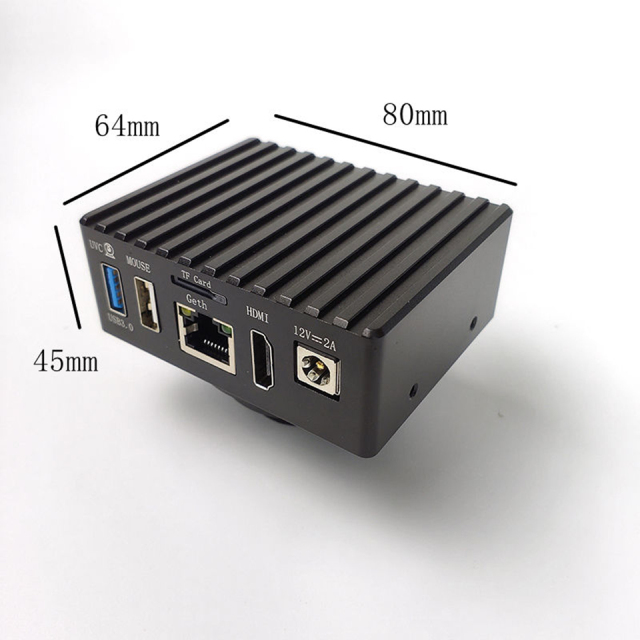

| Size | 80*64*45mm |
| Functions | 1. Two USB ports((one USB mouse , one USB for U-disk memory use or connected to PC for UVC camera use). 2. Save the images to USB drive or TF card,real time preview images or videos on USB drive or TF card. 3. Cross:1-12 cross group,color optional,and line is adjustable in width. 4. Freeze: Split screen display in two or four sections. 5. Scale ruler: The number of pixels in each interval can be adjusted arbitrarily. 6. Measurement functions: The distance between two points, rectangle, circle, angle etc. |
